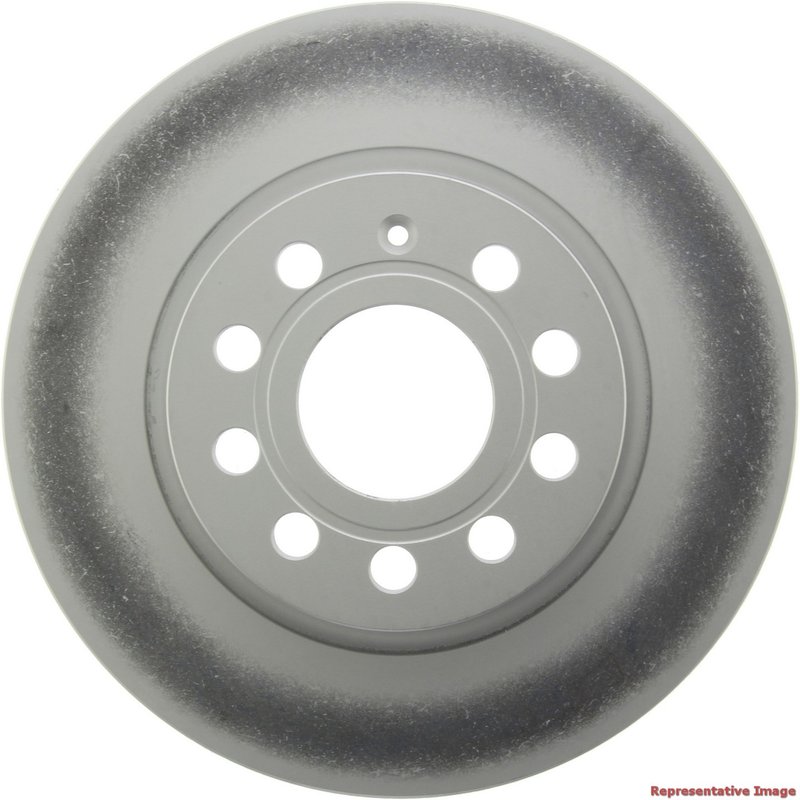

Centric 320.33132H Disc Brake Rotor - Front

Centric GCX Front Brake Rotor Overview

Centric GCX Elemental Protection Disc Brake Rotor 320.33132H is a front vented rotor built for OE-style braking performance with added corrosion resistance. It is a fitment-specific replacement for select Volkswagen applications, including Volkswagen Jetta front brake service and Volkswagen Golf front rotor replacement.

The fully coated finish helps protect non-mating surfaces from rust, while the high-carbon rotor metallurgy is matched to OEM-style requirements for consistent braking feel and durability. If you are replacing a worn front rotor on a Volkswagen Beetle, Jetta, Caddy, Golf, or Bora, part number 320.33132H is built around the original vehicle dimensions and mounting layout.

Key Features

• Part number: 320.33132H
• Front disc brake rotor for select Volkswagen models
• Fully coated disc finish with coated hat for corrosion resistance
• High-carbon rotor metallurgy for OE-style thermal stability
• Vented rotor design with straight vane construction
• Smooth friction surface for consistent pad contact
• 5-lug mounting pattern with 112 mm bolt circle
• Outside diameter: 279.9 mm (11.020 in)
• Nominal thickness: 22.0 mm; discard thickness: 19.0 mm

Product Line Details

Centric GCX Elemental Protection rotors are application-specific, with coating patterns and metallurgy selected to match the brake pad friction type and the vehicle’s OEM profile. The GCX FC design uses Centric’s RS200 finish on non-mating surfaces to help maintain appearance and resist rust over time. This makes the rotor a practical choice for drivers who want a direct replacement with attention to fit, finish, and long-term surface protection.

Fitment

• Fits 2019 Volkswagen Beetle, front. Notes: Front Disc Brake Hydraulic Hose - 288mm; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
• Fits 2011-2016 Volkswagen Jetta, front. Notes: 280mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
• Fits 2014-2015 Volkswagen Caddy, front. Notes: 280mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
• Fits 2014 Volkswagen Golf, front. Notes: 280mm Front Disc; 253mm Rear Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
• Fits 2005-2010 Volkswagen Bora, front. Notes: 280mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content

What This Rotor Helps Address

• Front brake pulsation from a worn or uneven rotor surface
• Rust and corrosion on exposed rotor surfaces
• Reduced braking consistency from heat-related rotor wear
• Noise or vibration caused by rotor thickness variation
• Replacement needs for OE-size front brake service on select Volkswagen models

Installation Notes and Tips

Confirm rotor diameter, center hole, bolt circle, and hat dimensions before installation. This rotor uses a vented, floating-mount design with a 5-lug pattern and 112 mm bolt circle, so it should be matched to the vehicle’s front brake specification and pad type. Clean the friction surfaces before installation and inspect pads, calipers, and hardware condition during brake service. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Quality Assurance

Centric engineers the GCX line to align with OE performance targets and vehicle-specific metallurgy requirements. The fully coated finish and high-carbon construction are intended to support long service life and stable braking performance on the listed Volkswagen applications, including Volkswagen Jetta front and Volkswagen Golf front fitments.
