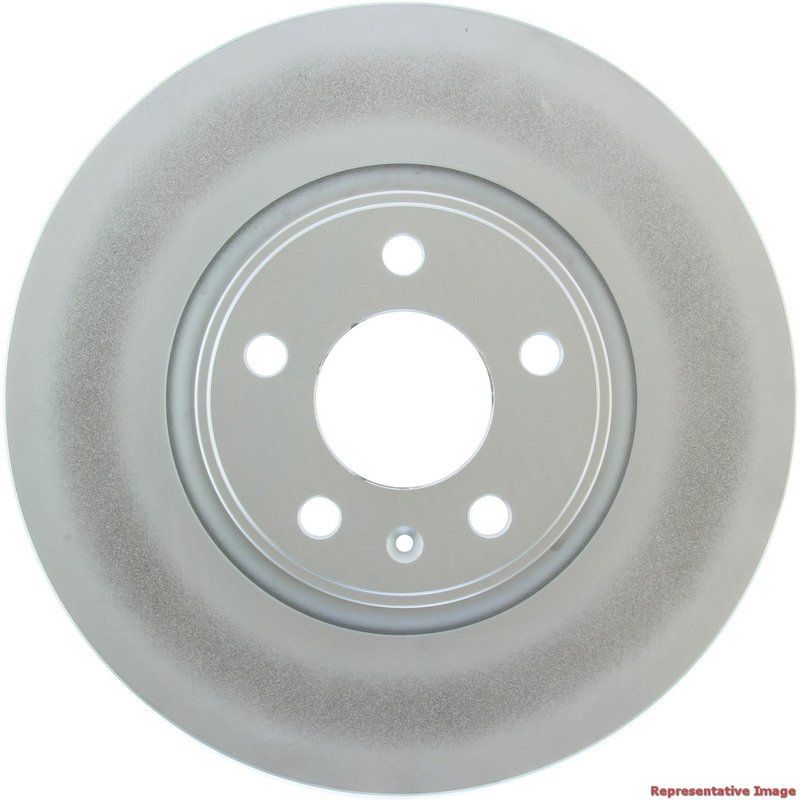

Centric 320.33136F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor for Audi

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.33136F, is a front vented rotor built for select Audi applications that use a 320 mm front disc. It combines a fully coated disc finish with a coated hat finish to help resist corrosion on exposed surfaces.

For drivers searching for a front brake rotor for Audi A4, Audi A5, Audi A6, Audi A7, Audi A4 allroad, Audi allroad, or Audi Q5, this rotor matches the fitment and dimensions listed below. The Centric 320.33136F is a direct-fit replacement for vehicles equipped with the specified front brake setup.

Key Features

• Part number 320.33136F
• Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
• Fully coated disc finish with coated hat finish
• Vented rotor design with smooth surface type
• Outside diameter: 320.000 mm / 12.598 in
• Nominal thickness: 30.000 mm / 1.181 in
• Discard thickness: 28.000 mm / 1.102 in
• 5-lug pattern with 112.000 mm bolt circle
• Floating disc mounting with pillar vane style
• No ABS tone ring included; no bearings included

Product Details

The Centric GCX Elemental Protection line focuses on corrosion-resistant rotor construction for everyday braking performance in demanding conditions. This rotor uses a fully coated disc and coated hat to protect the metal surfaces that are commonly exposed to moisture, road salt, and brake dust. Its vented, pillar-vane design supports heat management during repeated stops, while the smooth braking surface is suited to OE-style pad contact.

Use part number 320.33136F when replacing a front rotor on select Audi models with the 320 mm front disc setup. This rotor is listed for 2011-2019 Audi A4, A4 Quattro, A4 allroad, A5, A5 Quattro, A6, A6 Quattro, A7 Quattro, allroad, and Q5 front applications, including configurations noted for TRW or Girling front brakes on certain A4, A5, and Q5 vehicles.

What This Rotor Helps Address

• Front brake rotor wear that affects stopping consistency
• Corrosion on exposed rotor surfaces and hat areas
• Brake pulsation related to rotor thickness loss or uneven wear
• Heat buildup during repeated braking events
• Fitment issues on Audi vehicles requiring a 320 mm front disc

Installation Notes

Confirm rotor diameter, center hole diameter, bolt circle, and front brake configuration before installation. This rotor is listed for front position only and should be matched to the vehicle’s brake package, including the noted 320 mm front disc applications. Clean the hub mounting surface before installation and verify pad condition, caliper operation, and rotor runout during service.

Fits 2019 Audi A6 Quattro, front; fits 2018 Audi A7 Quattro, front; fits 2012-2013 Audi A7 Quattro, front; fits 2013-2017 Audi A5 Quattro, front; fits 2013-2017 Audi Q5, front; fits 2016 Audi A4, front; fits 2013 Audi A4, front; fits 2013-2016 Audi A4 allroad, front; fits 2013-2016 Audi A4 Quattro, front; fits 2016 Audi A5, front; fits 2013-2016 Audi allroad, front; fits 2014-2015 Audi A4, front; fits 2012-2013 Audi A6, front; fits 2013 Audi A6 Quattro, front; fits 2012 Audi A4, front; fits 2012 Audi A4 Quattro, front; fits 2012 Audi A5, front; fits 2012 Audi A5 Quattro, front; fits 2011-2012 Audi Q5, front.

Quality Assurance

Centric manufactures brake components for OE-style replacement applications, and the GCX Elemental Protection rotor line is built around coated corrosion protection and application-specific fitment. Verify the part number 320.33136F against your vehicle’s brake specifications before ordering.
