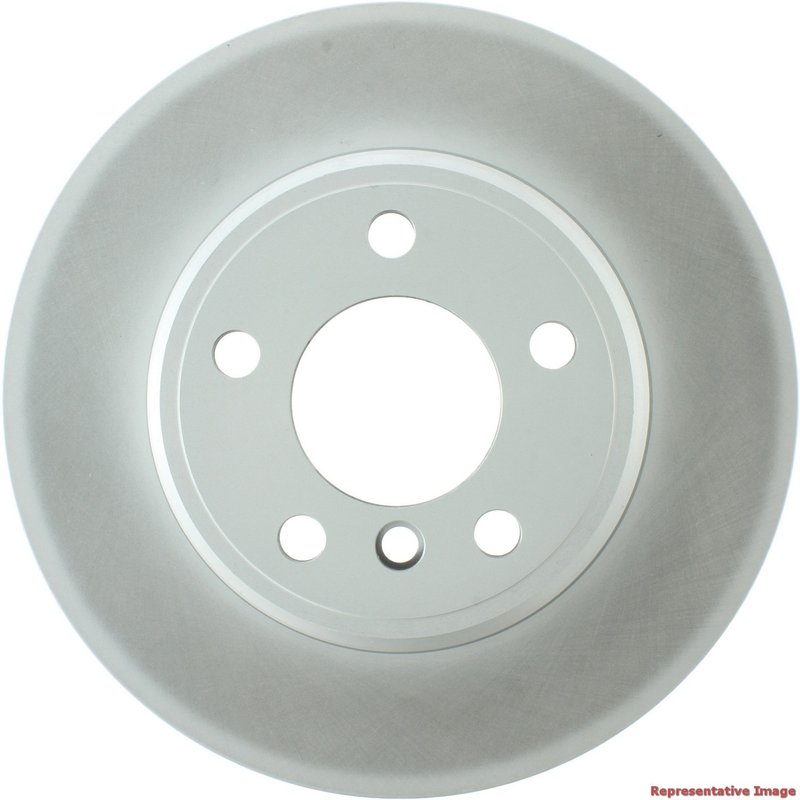

Centric 320.34051F Disc Brake Rotor - Rear

Centric GCX Rear Rotor for BMW X5

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.34051F, is a rear solid disc rotor built for select BMW X5 applications. It features a fully coated disc finish, coated hat, and smooth surface to support consistent braking performance while helping resist corrosion on exposed rotor surfaces.

Fits 2000-2003 BMW X5, rear. Fits 2004-2006 BMW X5, rear. This rotor is a direct-fit option for BMW X5 rear brake service when the application calls for a solid rear disc rotor with a 12.756-inch outside diameter and 5-lug mounting pattern.

Key Features

• Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line
• Part number 320.34051F
• Fully coated disc finish with coated hat finish
• Smooth rotor surface
• Solid rear disc rotor design
• Outside diameter: 12.756 in. (324.000 mm)
• Nominal thickness: 0.472 in. (12.000 mm)
• Discard thickness: 0.409 in. (10.400 mm)
• 5 lug holes with 4.724 in. bolt circle diameter

Product Details

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line is built for corrosion resistance on the rotor hat and friction-adjacent surfaces, making it a practical choice for rear brake maintenance on BMW X5 models. The smooth, solid rotor construction and OE-style dimensions help support proper fitment and braking feel on the rear axle. If you are replacing a worn rear brake rotor on a 2000-2006 BMW X5, part number 320.34051F provides the size and mounting details needed for the listed applications.

Common Brake Issues This Rotor Can Address

• Rear rotor wear that has reached discard thickness
• Brake pulsation caused by rotor surface irregularity
• Corrosion on the rotor hat and exposed surfaces
• Noise from uneven or worn rear brake rotors
• Service replacement for BMW X5 rear brake maintenance

Installation Notes and Tips

Verify rear axle fitment by matching the vehicle year and model to the listed applications before installation. Inspect pads, caliper hardware, and hub condition during rotor replacement, and clean the hub mounting surface to help the rotor seat evenly. Confirm the rotor dimensions, center hole diameter, and bolt circle match the vehicle before final assembly.

Quality Assurance

Centric designs the GCX Elemental Protection rotor line with coated surfaces to help reduce corrosion exposure during normal service. Part number 320.34051F is specified for select BMW X5 rear applications and should be matched to the vehicle’s brake configuration before installation.
