OE Quality
60-Day Returns
CentricPart #: 320.34070H

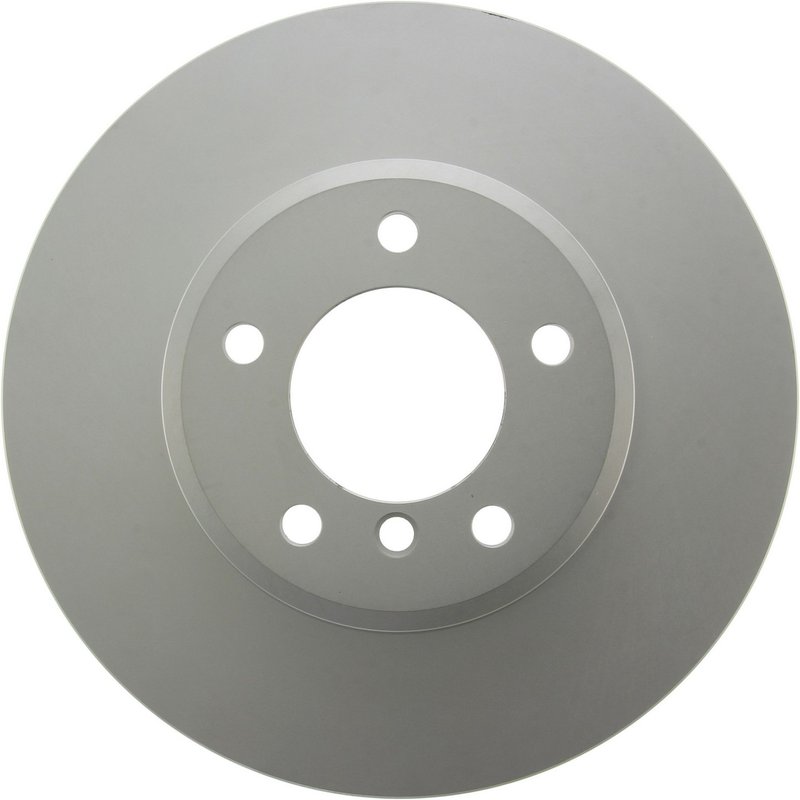

Centric 320.34070H Disc Brake Rotor - Front
21 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$72.81Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content, Front
Fitment: BMW, 525i, 525xi, 528i, 528i xDrive, 528xi, 530i, 530xi, 535i xDrive, and 535xi
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Disc Brake Rotor options
Centric 320.34070H Disc Brake Rotor - Front
| Brand | Centric |
|---|---|
| Part Number | 320.34070H |
| Position | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content, Front |
| Discard Thickness | 1.118 |
| Discard Thickness | 28.400 |
| Nominal Thickness | 1.181 |
| Nominal Thickness | 30.000 |
| Disc Finish | Fully coated |
| Hat Finish | Coated |
| Overall Height | 3.039 |
| Overall Height | 77.200 |
| Outside Diameter | 12.756 |
| Outside Diameter | 324.000 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.110 |
| Center Hole Diameter | 79.000 |
| Mounting Bolt Hole Circle Diameter | 120.000 |
| Mounting Bolt Hole Circle Diameter | 4.724 |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.575 |
| Stud/Lug Hole Diameter | 14.600 |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 1 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] kgs | 10.450 |
| Weight [cntrc] lbs | 23.000 |
This part fits 21 vehicles. Search below:
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2010 | BMW | 528i | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2010 | BMW | 528i xDrive | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2010 | BMW | 535i xDrive | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2009 | BMW | 528i | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2009 | BMW | 528i xDrive | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2009 | BMW | 535i xDrive | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2008 | BMW | 528i | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2008 | BMW | 528xi | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2008 | BMW | 535xi | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2007 | BMW | 525i | Front | 324mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2007 | BMW | 525xi | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2007 | BMW | 530i | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2007 | BMW | 530xi | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2006 | BMW | 525i | Front | To 9/06; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2006 | BMW | 525xi | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2006 | BMW | 530i | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2006 | BMW | 530xi | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2005 | BMW | 525i | Automatic | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content |
| 2005 | BMW | 530i | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2004 | BMW | 525i | Automatic | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content |
| 2004 | BMW | 530i | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
980396FZN
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
