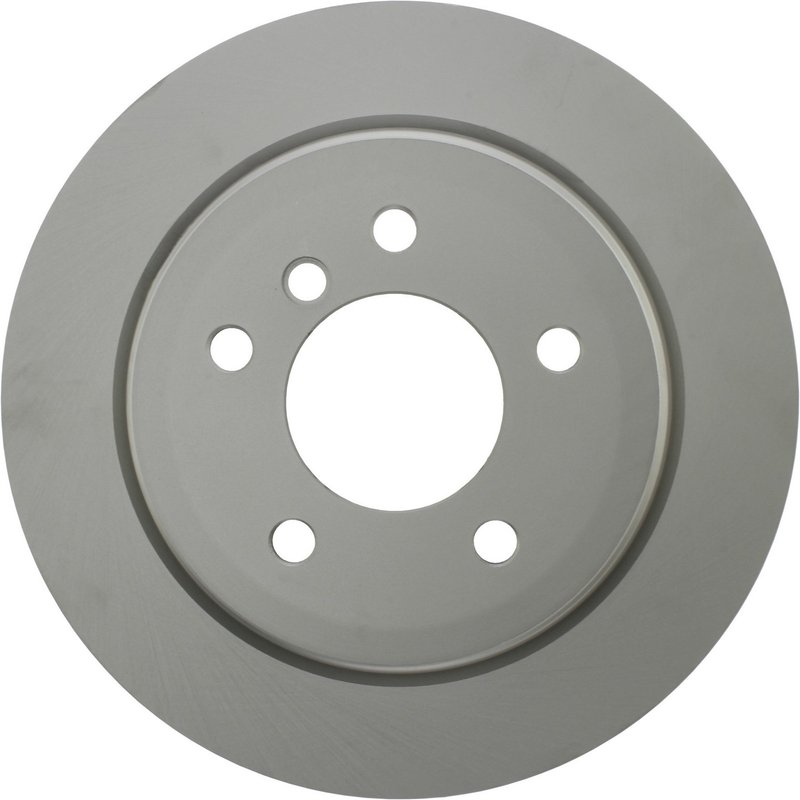

Centric 320.34091H Disc Brake Rotor - Rear

Centric GCX Rear Brake Rotor Overview

Centric GCX Elemental Protection Disc Brake Rotor 320.34091H is a rear vented rotor built for OE-style braking performance and long-term corrosion resistance. It is engineered for BMW applications that need a 300mm rear disc with a smooth, fully coated finish.

With a fully coated disc finish, coated hat, and high-carbon metallurgy, this rotor is built to maintain appearance and resist rust on non-mating surfaces while matching the factory brake system profile.

Key Features

• Part number 320.34091H
• Rear disc brake rotor for BMW fitments
• Fully coated disc finish with coated hat
• Vented rotor design with straight vanes
• High-carbon construction for OE-matched metallurgy
• 11.803 in. outside diameter and 2.606 in. overall height
• 5-lug pattern with 120 mm bolt circle
• Compatible with 2010-2014 BMW X1 rear brake applications and other listed BMW rear fitments

Product Details

Centric’s GCX Elemental Protection line is built around application-specific coating patterns and rotor metallurgy. This rotor uses Centric’s RS200-style protection on non-mating surfaces to help reduce rust and corrosion, while the high-carbon alloy supports consistent brake feel and OE-style thermal characteristics. The 299.8 mm outside diameter, 75 mm center hole, and floating/DIH mounting profile align with the listed BMW rear brake applications. Part number 320.34091H is also cross-referenced to Raybestos Brakes 980495FZN for the same application.

Vehicle Fitment

• Fits 2013-2015 BMW X1, rear.
• Fits 2010-2014 BMW X1, rear; 300mm rear disc; sDrive 18d, sDrive 20d, xDrive 18d, xDrive 20d, xDrive 23d.
• Fits 2013 BMW 328i, rear; 300mm rear disc; single piston rear caliper.
• Fits 2013 BMW 328i xDrive, rear; 300mm rear disc; single piston rear caliper.
• Fits 2007-2012 BMW 328i, rear.
• Fits 2009-2012 BMW 328i xDrive, rear.
• Fits 2012 BMW X1, rear; Europe.
• Fits 2006-2010 BMW 130i, rear.
• Fits 2007-2008 BMW 328xi, rear.
• Fits 2006 BMW 325xi, rear.

Common Issues This Rotor Can Address

• Rear brake rotor rust on exposed surfaces
• Brake pulsation from worn or below-spec rotors
• Reduced braking consistency from rotor wear
• Noise caused by uneven rotor surfaces
• Replacement needs for BMW rear 300mm disc brake setups

Installation Notes and Tips

Verify rotor diameter, center bore, lug pattern, and rear caliper configuration before installation. This rotor is a vented, rear application with 5 lug holes and a 120 mm bolt circle, so it should be matched to the exact BMW brake setup listed above. Clean the hub face thoroughly and inspect pads and hardware condition before completing the brake service.

Quality Assurance

Centric designs the GCX line to match OE performance targets while improving protection against rust and corrosion. The application-specific coating pattern and high-carbon metallurgy are intended to align with factory brake system requirements across the listed BMW rear applications.
