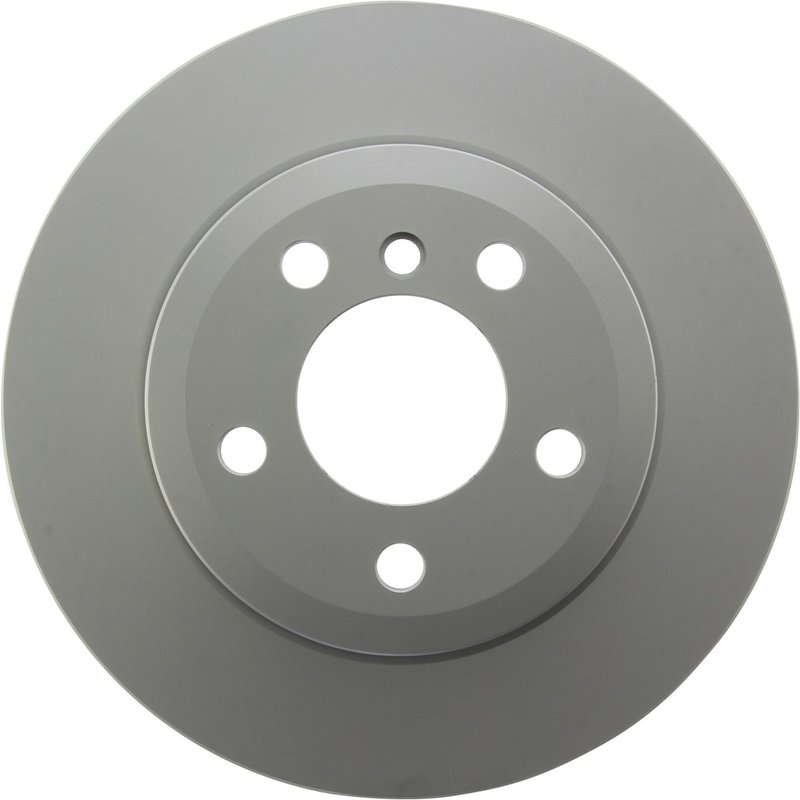

Centric 320.34097H Disc Brake Rotor - Rear

Centric GCX Rear Brake Rotor for BMW X5/X6

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.34097H, is a rear vented rotor built for BMW X5 and BMW X6 applications. It uses a fully coated finish and high carbon metallurgy to support OE-style braking performance while helping resist rust and corrosion on exposed surfaces.

Key Features

• Part number 320.34097H rear disc brake rotor for select BMW X5 and BMW X6 models
• Fully coated disc finish with coated hat for added corrosion protection
• High carbon rotor metallurgy matched to OEM-style material profiles
• Vented rotor design with smooth surface type
• Outside diameter: 320 mm; nominal thickness: 20.0 mm; discard thickness: 18.4 mm
• 5-lug pattern with 120 mm bolt circle and 75 mm center hole diameter
• Centric GCX Elemental Protection line focuses on application-specific coating patterns and metallurgy

Product Details

Centric’s GCX Elemental Protection Disc Brake Rotors are engineered to match OE braking characteristics while adding surface protection for long-term appearance and corrosion resistance. The GCX FC design uses Centric’s RS200 finish on non-mating surfaces, while the rotor metallurgy is selected to align with the vehicle’s original material profile. For BMW X5 and BMW X6 rear brake service, this rotor provides the dimensions and construction needed for a direct replacement on listed applications.

Compatible With BMW X5 rear brake service on 2007-2018 models, BMW X6 rear brake service on 2010-2015 models, and BMW X6 rear brake service on 2019 models. Part number 320.34097H is also listed for 2016-2018 BMW X5 rear and 2016-2018 BMW X6 rear applications, with a note that it is not compatible with M Sport Brakes.

Common Problems This Rotor Can Address

• Rear brake rotor rust on exposed surfaces
• Brake pulsation caused by worn or below-spec rotor thickness
• Noise or uneven braking from deteriorated rotor surfaces
• Loss of braking consistency from heat-worn rear rotors
• Replacement needs for BMW X5 and BMW X6 rear brake service

Installation Notes and Tips

Verify rotor dimensions, hub fitment, and brake package before installation. This rotor uses a vented design, 5 lug holes, and a 120 mm bolt circle, so confirm the vehicle’s rear brake setup matches the listed specifications. For 2016-2018 BMW X5 and 2016-2018 BMW X6 applications, confirm the vehicle is not equipped with M Sport Brakes. Clean the hub mounting surface before installing the new rotor to help reduce runout concerns.

Quality Assurance

Centric develops GCX rotors with application-specific coating patterns and metallurgy to align with OE requirements. The brand’s GCX line is built for broad coverage across many vehicle applications, including BMW X5 and BMW X6 rear brake fitments. Part number 320.34097H is manufactured to support consistent fit and corrosion protection on the listed applications.
