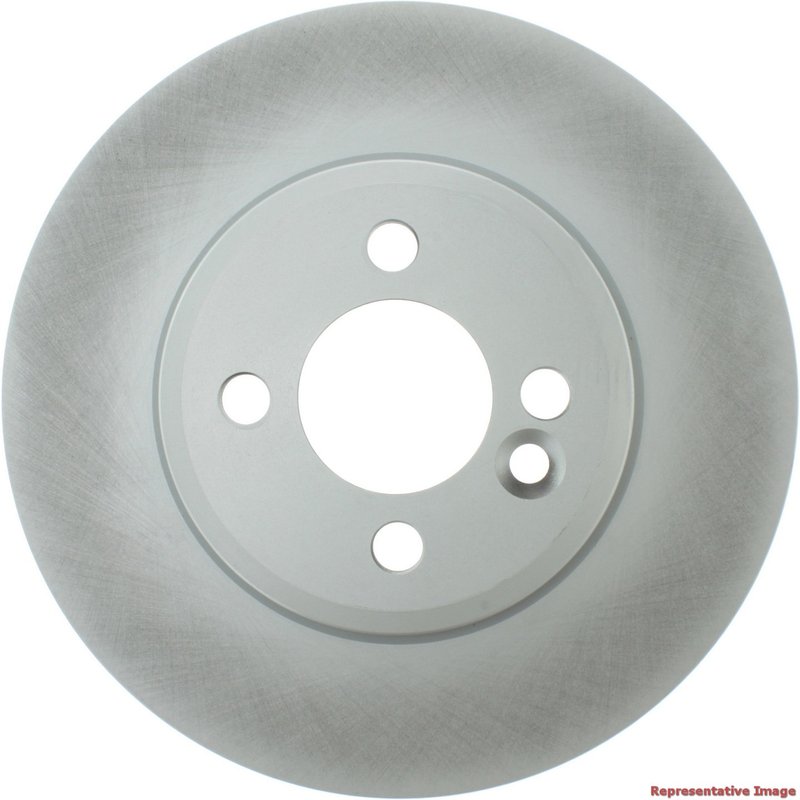

Centric 320.34100F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance for Mini Cooper vehicles. Designed with a fully coated disc and hat finish, these rotors offer enhanced corrosion resistance and durability for consistent stopping power.

• Part Number: 320.34100F
• Compatible with Mini Cooper models
• Fully coated disc and hat for corrosion protection
• Vented rotor design for improved heat dissipation
• Nominal thickness: 0.858 inches (21.8 mm)
• Outside diameter: 10.984 inches (279 mm)
• Floating disc mounting for better rotor alignment
• Smooth surface finish for optimal pad contact
• Weight: 12.25 lbs (5.57 kgs)

Product Line Details: Centric GCX Elemental Protection

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a complete protective coating to resist rust and corrosion. This full coating extends the rotor's service life and maintains performance under various driving conditions. The coated hat and disc surfaces help prevent premature wear and maintain a clean appearance, making it a practical choice for Mini Cooper owners seeking long-term reliability.

Technical Specifications and Features

This disc brake rotor features a vented design with straight vanes to enhance airflow and heat dissipation during braking. The rotor has a nominal thickness of 0.858 inches (21.8 mm) and a discard thickness of 0.803 inches (20.4 mm), ensuring it meets safety standards for replacement. The overall height measures 1.74 inches (44.2 mm), and the outside diameter is 10.984 inches (279 mm). The rotor includes a floating disc mounting system to accommodate thermal expansion and reduce stress on the braking components. It is designed with a smooth surface finish to optimize brake pad contact and minimize noise.

Compatible Vehicles and Applications

• Designed specifically for Mini Cooper models
• Ideal for replacing worn or damaged rotors on Mini Cooper vehicles
• Helps address issues such as brake noise, vibration, and reduced stopping power
• Suitable for drivers seeking corrosion-resistant rotors for daily driving

Installation Notes and Tips

When installing the Centric 320.34100F rotor on a Mini Cooper, ensure the rotor thickness is above the discard thickness of 0.803 inches (20.4 mm). Proper cleaning of the rotor surface before installation is recommended to remove any protective coating residue. Use the correct torque specifications for mounting bolts and verify the rotor is seated properly on the hub. Since this rotor does not include bearings or an ABS tone ring, confirm compatibility with your vehicle’s braking system components.

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM specifications, ensuring reliable performance and safety. The full coating process provides added protection against corrosion, extending the rotor’s service life. While specific warranty details for part number 320.34100F are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Refer to Centric’s official documentation for complete warranty information.
