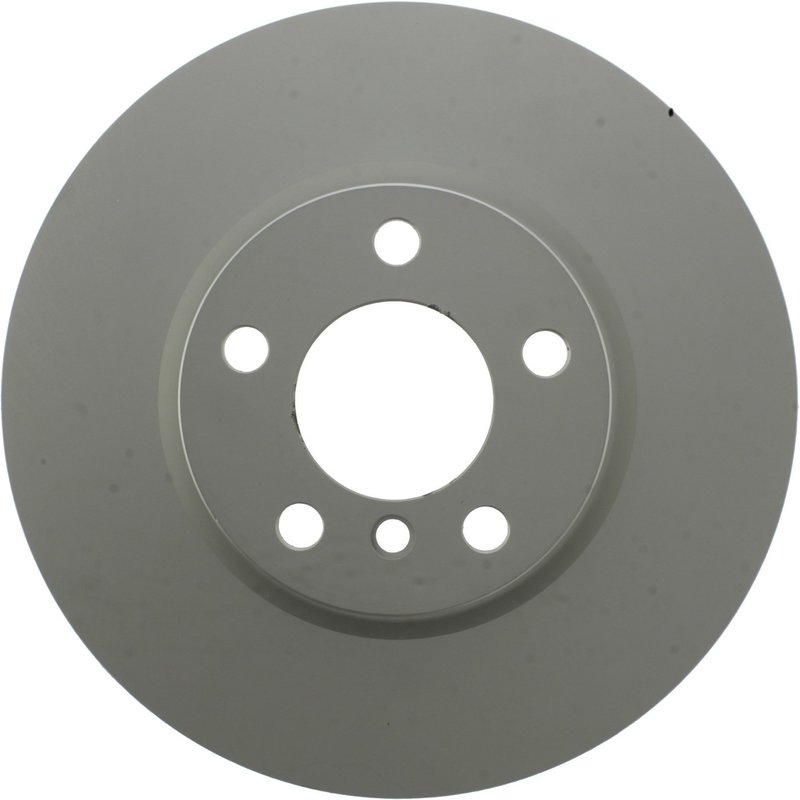

Home› Brake > Drums and Rotors› Centric 320.34134H Disc Brake Rotor - Front
Centric 320.34134H Disc Brake Rotor - FrontOE Quality 60-Day Returns
Centric 320.34134H Disc Brake Rotor - Front - view 1
Centric 320.34134H Disc Brake Rotor - Front - view 2
Centric 320.34134H Disc Brake Rotor - Front - view 3
Centric 320.34134H Disc Brake Rotor - Front - view 4
Centric 320.34134H Disc Brake Rotor - Front - view 5
Part #: 320.34134H

Centric 320.34134H Disc Brake Rotor - Front

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content, Front
⚙️ 21 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$68.26Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content, Front
🚗Fitment: BMW, X3 and X4
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Disc Brake Rotor options
Centric 320.34134H Disc Brake Rotor - Front
BrandCentric
Part Number320.34134H
PositionCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content, Front
Discard Thickness1.039
Discard Thickness26.400
Nominal Thickness1.102
Nominal Thickness28.000
Disc FinishFully coated
Hat FinishCoated
Overall Height2.878
Overall Height73.100
Outside Diameter12.913
Outside Diameter328.000
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorVented
Bearings IncludedNo
Center Hole Diameter2.953
Center Hole Diameter75.000
Mounting Bolt Hole Circle Diameter120.000
Mounting Bolt Hole Circle Diameter4.724
Stud/Lug Hole Quantity5
Stud/Lug Hole Diameter0.654
Stud/Lug Hole Diameter16.600
Disc Mounting [cntrc]Floating
Hat ID [cntrc] in6.059
Hat ID [cntrc] mm153.900
Misc Holes [cntrc]1
Vane Style [cntrc]Straight
Weight [cntrc] kgs10.420
Weight [cntrc] lbs22.950

This part fits 21 vehicles. Search below:

YearMakeModelSubmodelPositionNotes
2018BMWX4xDrive35i M SportFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2018BMWX4xDrive28iFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2018BMWX4xDrive28i X LineFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2017BMWX3FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2017BMWX4xDrive35i M SportFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2017BMWX4xDrive28iFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2017BMWX4xDrive28i X LineFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2016BMWX3FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2016BMWX4xDrive35iFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2016BMWX4xDrive35i X LineFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2016BMWX4xDrive35i M SportFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2016BMWX4xDrive28iFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2016BMWX4xDrive28i X LineFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2016BMWX4X LineFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2016BMWX4M SportFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2015BMWX3FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2015BMWX4FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2014BMWX3FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2013BMWX3FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2012BMWX3FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2011BMWX3FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
