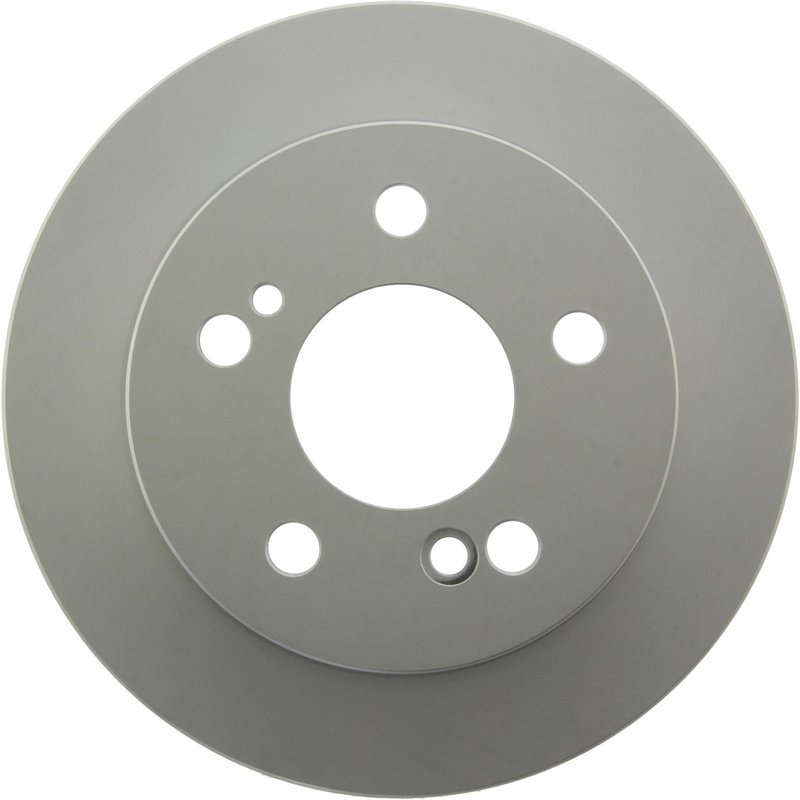

Centric 320.35014F Disc Brake Rotor - Rear

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotor (part number 320.35014F) is engineered for reliable braking performance on select Mercedes-Benz models. Designed with a full coating, this rotor offers enhanced corrosion resistance and durability for vehicles like the 190E, 260E, 300CE, 300D, 300E, and E300.

• Full coating on disc and hat for corrosion protection
• Solid disc type with smooth surface finish
• Nominal thickness of 0.354 inches (9.000 mm)
• Discard thickness at 0.287 inches (7.300 mm)
• Outside diameter of 10.157 inches (258.000 mm)
• Overall height of 2.177 inches (55.300 mm)
• Five stud/lug holes with 0.591 inch (15.000 mm) diameter
• Center hole diameter of 2.638 inches (67.000 mm)
• Mounting bolt hole circle diameter of 4.409 inches (112.000 mm)
• Weight approximately 7.42 lbs (3.37 kgs)

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a complete protective coating on both the disc surface and the hat. This full coating helps prevent rust and corrosion, extending the rotor's service life and maintaining consistent braking performance. The smooth surface finish supports even pad wear and quiet operation, making it suitable for daily driving conditions on Mercedes-Benz vehicles.

Technical Description and Specifications

This solid disc brake rotor features a nominal thickness of 0.354 inches (9.000 mm) and a discard thickness of 0.287 inches (7.300 mm), ensuring it meets OEM specifications for safe replacement intervals. The rotor's outside diameter measures 10.157 inches (258.000 mm), with an overall height of 2.177 inches (55.300 mm). It includes five stud/lug holes sized at 0.591 inches (15.000 mm) diameter arranged on a 4.409 inch (112.000 mm) bolt circle diameter. The center hole diameter is 2.638 inches (67.000 mm), designed for precise fitment on compatible Mercedes-Benz models. The rotor is a solid type with a smooth surface finish, optimized for consistent braking response.

Compatible Vehicles and Common Applications

• Replacement rotor for Mercedes-Benz 190E models
• Suitable for Mercedes-Benz 260E brake system upgrades
• Compatible with Mercedes-Benz 300CE and 300D models
• Fits Mercedes-Benz 300E and E300 vehicles requiring disc brake rotor replacement

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean mounting surfaces to prevent uneven rotor seating
• Check compatibility with existing brake pads and hardware
• Torque lug nuts to manufacturer specifications for safety
• Inspect brake system components during rotor replacement

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The full coating on the rotor surface and hat provides enhanced corrosion resistance, contributing to longer service life. While specific warranty details are not provided, Centric products typically come with a limited warranty against defects in materials and workmanship.
