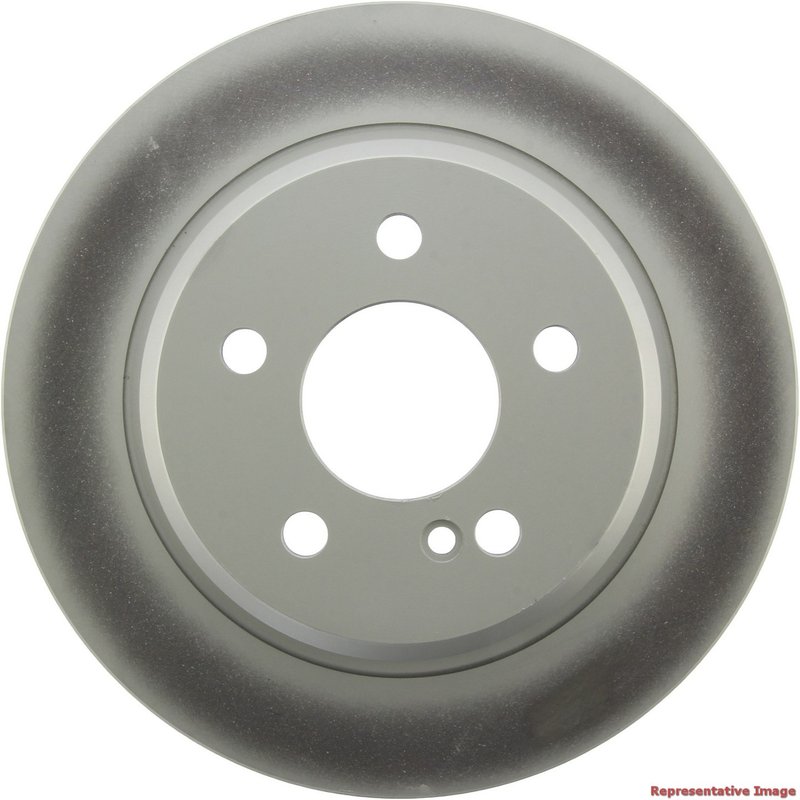

Centric 320.35061H Disc Brake Rotor - Rear

Centric GCX Rear Brake Rotor Overview

The Centric GCX Elemental Protection Disc Brake Rotor is a rear solid rotor built for Mercedes-Benz applications that call for OE-style fit and corrosion resistance. Part number 320.35061H combines a fully coated disc finish with a coated hat to help maintain a cleaner appearance and added protection on non-mating surfaces.

For Mercedes-Benz E200, E250, E320, E350, and E500 rear brake service, this rotor uses Centric’s GCX application-specific metallurgy and coating pattern approach to match the friction and performance needs of the vehicle platform. The result is a direct-fit rear rotor option for drivers looking for a replacement that aligns with factory-style brake system requirements.

Key Features

• Part number: 320.35061H
• Rear disc brake rotor for select Mercedes-Benz models
• Fully coated disc finish with coated hat finish
• Solid rotor design with smooth surface type
• High carbon content metallurgy for OE-style material matching
• Outside diameter: 300 mm (11.811 in)
• Nominal thickness: 10.0 mm (0.394 in)
• Discard thickness: 8.3 mm (0.327 in)
• 5-lug bolt pattern with 112 mm bolt circle diameter
• Center hole diameter: 67 mm

Product Line Details

Centric GCX Elemental Protection Disc Brake Rotors are engineered with application-specific coating patterns and rotor metallurgy. Centric uses high carbon alloy formulations to align with OEM-style metallurgical profiles, while the RS200 finish is applied to non-mating surfaces to help resist rust and corrosion over time. This approach supports consistent appearance and service life on rear brake applications such as Mercedes-Benz E-Class models.

Fitment

• Fits 2012-2016 Mercedes-Benz E200, rear
• Fits 2011-2016 Mercedes-Benz E250, rear
• Fits 2007-2009 Mercedes-Benz E320, rear
• Fits 2004-2005 Mercedes-Benz E320, rear
• Fits 2006 Mercedes-Benz E320, rear; 211.026
• Fits 2006 Mercedes-Benz E350, rear; solid rear disc
• Fits 2004-2006 Mercedes-Benz E500, rear; solid rear disc
• Fits 2003 Mercedes-Benz E320, rear; 211.065, verify compatibility before purchase

What This Rotor Helps Address

• Rear brake rotor wear on Mercedes-Benz E200, E250, E320, E350, and E500 models
• Rust and corrosion on exposed rotor surfaces
• Brake pulsation caused by worn or below-spec rear rotors
• Uneven braking performance from aged solid rear discs
• Replacement needs for OE-style rear brake service

Installation Notes and Tips

Confirm rotor dimensions, hub fitment, and rear brake configuration before installation. This rotor is a solid rear disc with a 5-lug, 112 mm bolt circle and 67 mm center hole, so matching the vehicle’s original brake setup is important. For the 2003 Mercedes-Benz E320 application, verify the 211.065 fitment note before ordering. Part number 320.35061H should be installed on the rear axle only where listed in the fitment data.

Quality Assurance

Centric designs GCX rotors to match OE performance targets while using coated non-mating surfaces and high carbon metallurgy for corrosion resistance and service consistency. The brand’s broad GCX catalog covers a large share of late-model and earlier vehicle applications, including Mercedes-Benz rear brake rotor replacements.
