Home› Brake > Drums and Rotors› Centric 320.35064F Disc Brake Rotor - Front
Centric 320.35064F Disc Brake Rotor - FrontOE Quality 60-Day Returns

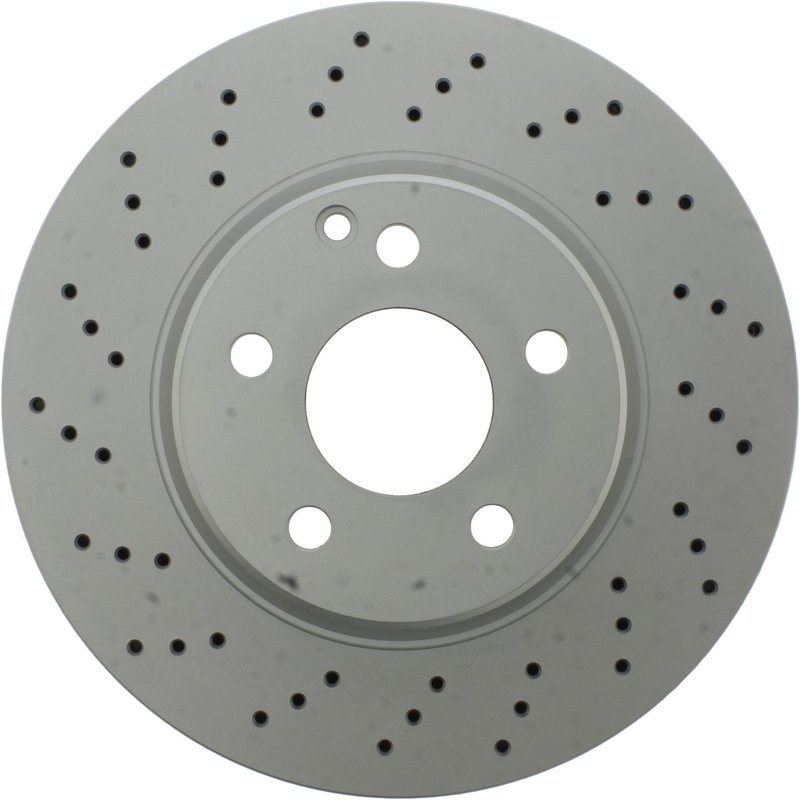

Centric 320.35064F Disc Brake Rotor - Front - view 1
Centric 320.35064F Disc Brake Rotor - Front - view 2
Centric 320.35064F Disc Brake Rotor - Front - view 3
Centric 320.35064F Disc Brake Rotor - Front - view 4
Centric 320.35064F Disc Brake Rotor - Front - view 5
Part #: 320.35064F

Centric 320.35064F Disc Brake Rotor - Front

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
⚙️ 14 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$56.32Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
🚗Fitment: Mercedes-Benz, CL500, S350, S430, and S500
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Disc Brake Rotor options
Centric 320.35064F Disc Brake Rotor - Front
BrandCentric
Part Number320.35064F
PositionCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
Discard Thickness1.024
Discard Thickness26.000
Nominal Thickness1.102
Nominal Thickness28.000
Disc FinishFully coated
Hat FinishCoated
Overall Height2.992
Overall Height76.000
Outside Diameter12.205
Outside Diameter310.000
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorVented
Bearings IncludedNo
Center Hole Diameter2.638
Center Hole Diameter67.000
Mounting Bolt Hole Circle Diameter112.000
Mounting Bolt Hole Circle Diameter4.409
Stud/Lug Hole Quantity5
Stud/Lug Hole Diameter0.591
Stud/Lug Hole Diameter15.000
Disc Mounting [cntrc]Floating
Misc Holes [cntrc]1
Vane Style [cntrc]Curved
Weight [cntrc] kgs8.640
Weight [cntrc] lbs19.000

This part fits 14 vehicles. Search below:

YearMakeModelSubmodelDrive TypePositionNotes
2006Mercedes-BenzCL500FrontFr Ch# A032100; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2006Mercedes-BenzS350FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2006Mercedes-BenzS430RWDFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2006Mercedes-BenzS500RWDFront220.171; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2005Mercedes-BenzCL500FrontFr Ch# A032100; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2005Mercedes-BenzS430BaseRWDFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2005Mercedes-BenzS500RWDFront220.175; exc Armored; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2004Mercedes-BenzCL500FrontFr Ch# A032100; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2004Mercedes-BenzS430BaseRWDFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2004Mercedes-BenzS500RWDFront220.175; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2003Mercedes-BenzCL500FrontFr Ch# A032100; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2003Mercedes-BenzS430BaseRWDFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2003Mercedes-BenzS500RWDFront220.175; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2002Mercedes-BenzS500Front220.175; Fr 9/02; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
