CentricPart #: 320.35089F

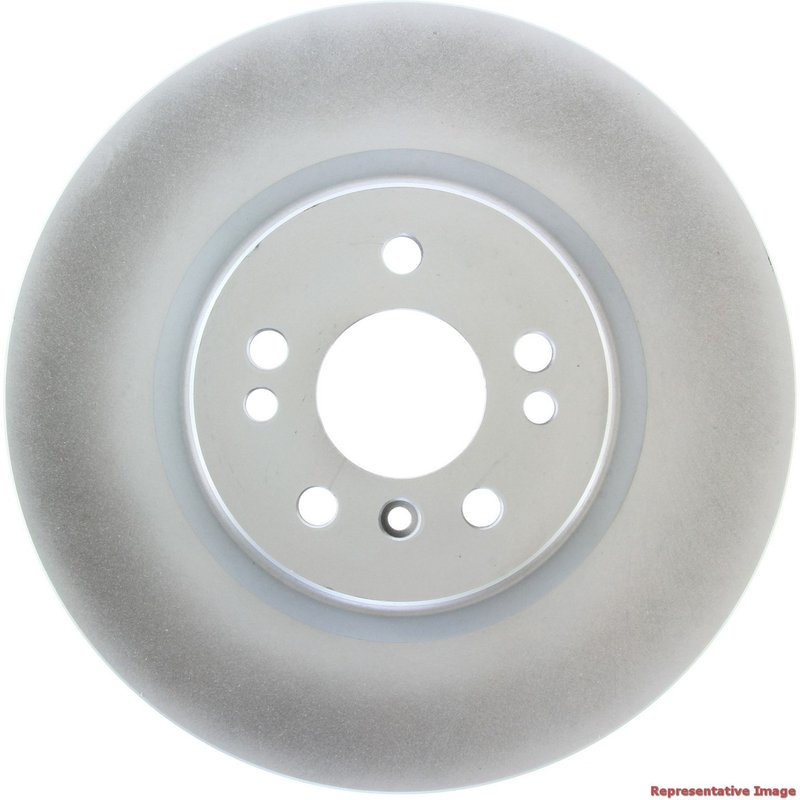

Centric 320.35089F Disc Brake Rotor - Front
⚙️ 34 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$70.58Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
🚗Fitment: Mercedes-Benz, GL320, GL450, GL550, ML320, ML350, ML450, ML500, ML550, R320, R350, and R500
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Disc Brake Rotor options
Centric 320.35089F Disc Brake Rotor - Front
| Brand | Centric |
| Part Number | 320.35089F |
| Position | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front |
| Discard Thickness | 1.157 |
| Discard Thickness | 29.400 |
| Nominal Thickness | 1.256 |
| Nominal Thickness | 31.900 |
| Disc Finish | Fully coated |
| Hat Finish | Coated |
| Overall Height | 2.138 |
| Overall Height | 54.300 |
| Outside Diameter | 12.992 |
| Outside Diameter | 330.000 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.638 |
| Center Hole Diameter | 67.000 |
| Mounting Bolt Hole Circle Diameter | 112.000 |
| Mounting Bolt Hole Circle Diameter | 4.409 |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.602 |
| Stud/Lug Hole Diameter | 15.300 |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 3 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] kgs | 12.050 |
| Weight [cntrc] lbs | 26.500 |
This part fits 34 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2012 | Mercedes-Benz | R350 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2011 | Mercedes-Benz | ML350 | Front | 330mm Front Disc; Solid Rear Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2011 | Mercedes-Benz | ML450 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2011 | Mercedes-Benz | ML550 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2011 | Mercedes-Benz | R350 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2010 | Mercedes-Benz | ML350 | Front | 330mm Front Disc; Solid Rear Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2010 | Mercedes-Benz | ML450 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2010 | Mercedes-Benz | ML550 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2010 | Mercedes-Benz | R350 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2009 | Mercedes-Benz | ML320 | Front | 330mm Front Disc; Solid Rear Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2009 | Mercedes-Benz | ML350 | Front | 330mm Front Disc; Solid Rear Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2009 | Mercedes-Benz | ML550 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2009 | Mercedes-Benz | R320 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2009 | Mercedes-Benz | R350 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2008 | Mercedes-Benz | GL320 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2008 | Mercedes-Benz | GL450 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2008 | Mercedes-Benz | GL550 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2008 | Mercedes-Benz | ML320 | Front | 330mm Front Disc; Solid Rear Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2008 | Mercedes-Benz | ML350 | Front | 330mm Front Disc; Solid Rear Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2008 | Mercedes-Benz | ML550 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2008 | Mercedes-Benz | R320 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2008 | Mercedes-Benz | R350 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2007 | Mercedes-Benz | GL320 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2007 | Mercedes-Benz | GL450 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2007 | Mercedes-Benz | ML320 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2007 | Mercedes-Benz | ML350 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2007 | Mercedes-Benz | ML500 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2007 | Mercedes-Benz | R320 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2007 | Mercedes-Benz | R350 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2007 | Mercedes-Benz | R500 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2006 | Mercedes-Benz | ML350 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2006 | Mercedes-Benz | ML500 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2006 | Mercedes-Benz | R350 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2006 | Mercedes-Benz | R500 | Front | 330mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
