CentricPart #: 320.35107H

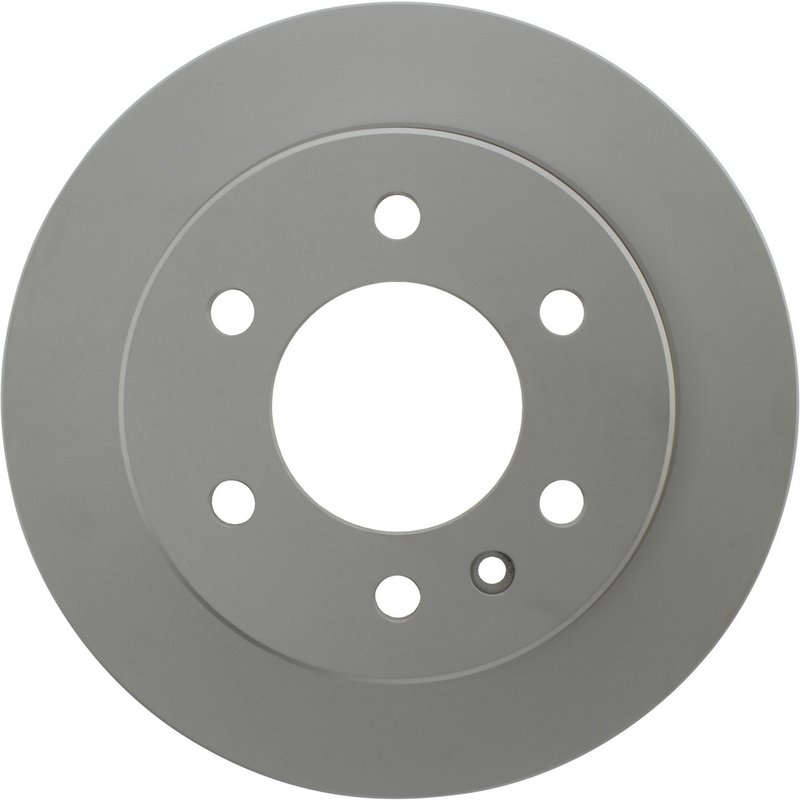

Centric 320.35107H Disc Brake Rotor - Rear
⚙️ 34 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$69.63Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content, Rear
🚗Fitment: Dodge, Mercedes-Benz, and Volkswagen, Crafter Van, Sprinter 2500, and Sprinter 3500
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Disc Brake Rotor options
Centric 320.35107H Disc Brake Rotor - Rear
| Brand | Centric |
| Part Number | 320.35107H |
| Position | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content, Rear |
| Discard Thickness | 0.551 |
| Discard Thickness | 14.000 |
| Nominal Thickness | 0.630 |
| Nominal Thickness | 16.000 |
| Disc Finish | Fully coated |
| Hat Finish | Coated |
| Overall Height | 2.803 |
| Overall Height | 71.200 |
| Outside Diameter | 11.732 |
| Outside Diameter | 298.000 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Bearings Included | No |
| Center Hole Diameter | 3.346 |
| Center Hole Diameter | 85.000 |
| Mounting Bolt Hole Circle Diameter | 130.200 |
| Mounting Bolt Hole Circle Diameter | 5.126 |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 0.602 |
| Stud/Lug Hole Diameter | 15.300 |
| Disc Mounting [cntrc] | Floating / dih |
| Misc Holes [cntrc] | 1 |
| Weight [cntrc] kgs | 7.250 |
| Weight [cntrc] lbs | 15.950 |
This part fits 34 vehicles. Search below:
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2018 | Mercedes-Benz | Sprinter 2500 | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2018 | Mercedes-Benz | Sprinter 3500 | Rear | Solid Rear Disc; SRW - 9,900lb GVW; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2017 | Mercedes-Benz | Sprinter 2500 | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2017 | Mercedes-Benz | Sprinter 3500 | Rear | Solid Rear Disc; SRW - 9,900lb GVW; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2017 | Volkswagen | Crafter Van | Rear | 3.88 / 5.0 Ton; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2016 | Mercedes-Benz | Sprinter 2500 | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2016 | Mercedes-Benz | Sprinter 3500 | Rear | Solid Rear Disc; SRW - 9,900lb GVW; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2016 | Volkswagen | Crafter Van | Rear | 3.88 / 5.0 Ton; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2015 | Mercedes-Benz | Sprinter 2500 | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2015 | Mercedes-Benz | Sprinter 3500 | Rear | Solid Rear Disc; SRW - 9,900lb GVW; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2015 | Volkswagen | Crafter Van | Standard Cargo Van | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content |
| 2014 | Mercedes-Benz | Sprinter 2500 | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2014 | Mercedes-Benz | Sprinter 3500 | Rear | Solid Rear Disc; SRW - 9,900lb GVW; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2014 | Volkswagen | Crafter Van | Standard Cargo Van | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content |
| 2013 | Mercedes-Benz | Sprinter 2500 | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2013 | Mercedes-Benz | Sprinter 3500 | Rear | Solid Rear Disc; SRW - 9,900lb GVW; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2013 | Volkswagen | Crafter Van | Standard Cargo Van | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content |
| 2012 | Mercedes-Benz | Sprinter 2500 | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2012 | Mercedes-Benz | Sprinter 3500 | Rear | Solid Rear Disc; SRW - 9,900lb GVW; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2012 | Volkswagen | Crafter Van | Standard Cargo Van | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content |
| 2011 | Mercedes-Benz | Sprinter 2500 | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2011 | Mercedes-Benz | Sprinter 3500 | Rear | Solid Rear Disc; SRW - 9,900lb GVW; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2011 | Volkswagen | Crafter Van | Standard Cargo Van | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content |
| 2010 | Mercedes-Benz | Sprinter 2500 | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2010 | Mercedes-Benz | Sprinter 3500 | Rear | Solid Rear Disc; SRW - 9,900lb GVW; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2010 | Volkswagen | Crafter Van | Standard Cargo Van | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content |
| 2009 | Dodge | Sprinter 2500 | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2009 | Dodge | Sprinter 3500 | Rear | Fitment: Designed for vehicles with Single Rear Wheel setups; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2009 | Volkswagen | Crafter Van | Standard Cargo Van | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content |
| 2008 | Dodge | Sprinter 2500 | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2008 | Dodge | Sprinter 3500 | Rear | Fitment: Designed for vehicles with Single Rear Wheel setups; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2008 | Volkswagen | Crafter Van | Mini Cargo Van | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content |
| 2007 | Dodge | Sprinter 2500 | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2007 | Dodge | Sprinter 3500 | Rear | Fitment: Designed for vehicles with Single Rear Wheel setups; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
780613FZN
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
