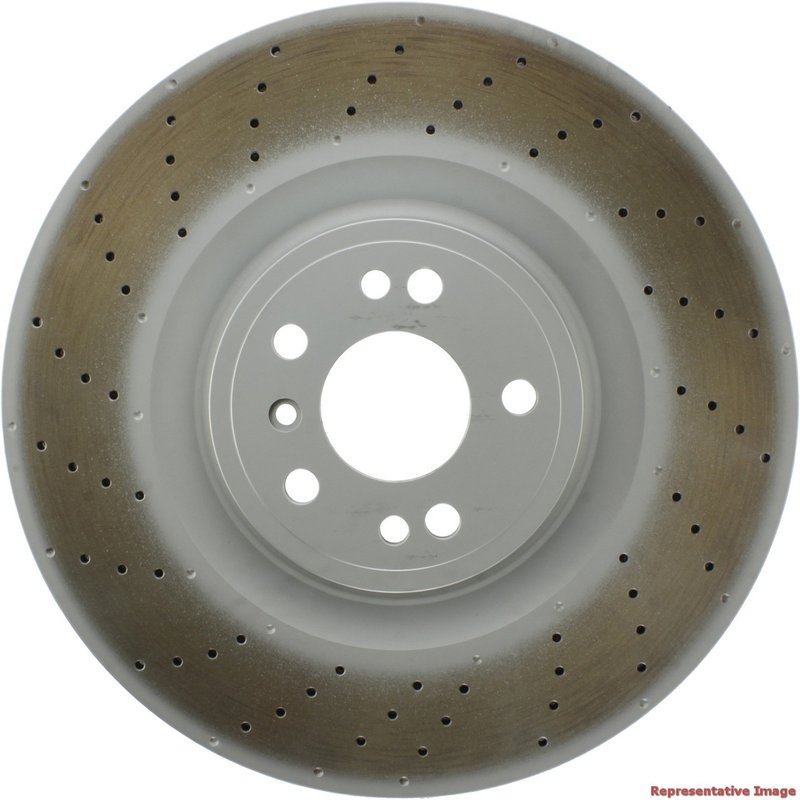

Centric 320.35136F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotor 320.35136F offers reliable braking performance for select Mercedes-Benz models. Designed with a full coating, this vented rotor provides enhanced corrosion resistance and durability for vehicles like the GL350, GLE43 AMG, and ML350.

• Full coating on disc and hat for superior rust protection
• Vented design with pillar-style vanes for efficient heat dissipation
• Floating disc mounting for improved rotor alignment
• Nominal thickness of 1.417 inches (36.000 mm) with discard thickness at 1.315 inches (33.400 mm)
• Outside diameter of 14.764 inches (375.000 mm) suitable for heavy-duty braking
• Coated hat finish to prevent corrosion in mounting areas
• Compatible with 5-lug wheel configurations and 112 mm bolt circle diameter

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a comprehensive protective coating that covers both the braking surface and the rotor hat. This full coating helps reduce rust and corrosion, extending the rotor's service life and maintaining consistent braking performance. The 320.35136F rotor benefits from this technology, making it a suitable replacement part for Mercedes-Benz SUVs and performance models requiring reliable stopping power under varied driving conditions.

Technical Specifications and Features

This disc brake rotor features a smooth surface type and a vented design with pillar-style vanes to optimize airflow and heat dissipation during braking. The rotor's overall height measures 2.150 inches (54.600 mm), and it includes a center hole diameter of 2.638 inches (67.000 mm) to ensure proper fitment. The rotor is designed for vehicles with a 5-stud lug pattern and a mounting bolt hole circle diameter of 112 mm (4.409 inches). The floating disc mounting system allows for slight movement to reduce stress and improve rotor longevity.

Compatible Mercedes-Benz Models

• GL350, GL450, GL550
• GLE43 AMG, GLE63 AMG, GLE63 AMG S, GLE400, GLE450 AMG, GLE550e
• GLS450, GLS550
• ML63 AMG, ML250, ML350, ML400, ML550

Common Issues Addressed by This Rotor

• Brake rotor corrosion and rust buildup
• Uneven brake pad wear due to rotor warping
• Reduced braking efficiency from overheating
• Noise and vibration caused by rotor surface irregularities
• Compatibility issues with OEM brake components

Installation Notes and Tips

• Ensure the rotor thickness is above the discard thickness of 1.315 inches before installation
• Clean mounting surfaces and check for proper fit on the 112 mm bolt circle diameter
• Use proper torque specifications for the 5-lug wheel studs
• Verify absence of ABS tone ring as this rotor does not include one
• Inspect brake pads and calipers for wear during rotor replacement

Quality Assurance and Warranty

Centric rotors undergo rigorous quality control to meet or exceed OEM standards. The full coating process enhances corrosion resistance, contributing to longer rotor life. While specific warranty details for part number 320.35136F are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always consult product documentation or manufacturer resources for exact warranty terms.
