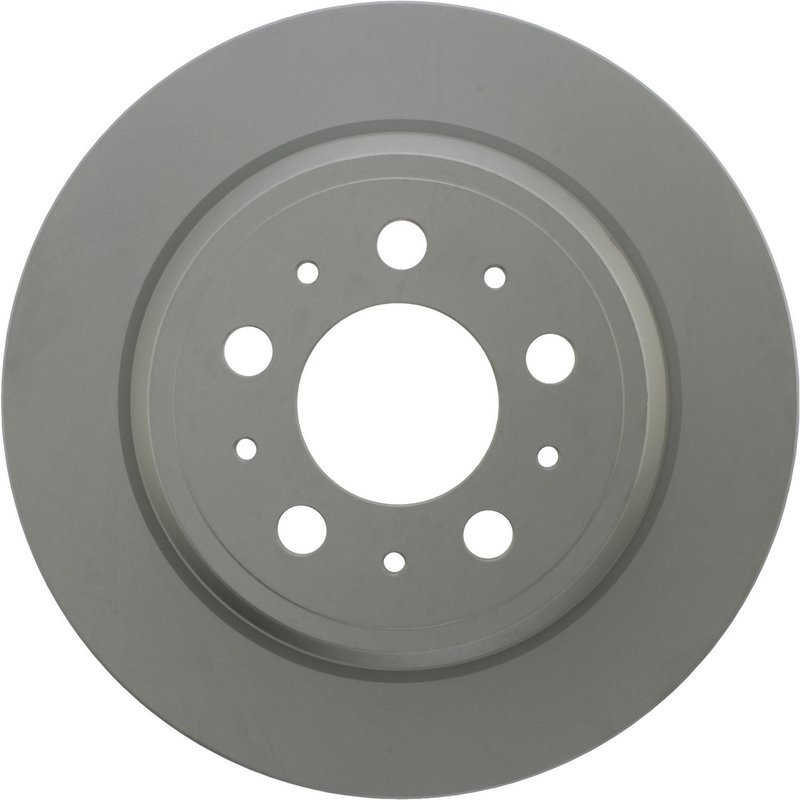

Centric 320.39025H Disc Brake Rotor - Rear

Centric GCX Rear Brake Rotor for Volvo

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.39025H, is built for rear brake service on select Volvo applications. It combines a fully coated finish with high carbon metallurgy to support OE-style braking performance while helping resist rust on exposed surfaces.

Compatible With 1999-2009 Volvo S60, V70, XC70, and S80 rear brake applications, this rotor is sized for 288 mm rear use where specified. The Centric GCX rotor line uses application-specific coating patterns and OE-matched metallurgy to align with the brake pad friction type and vehicle profile.

• Part number 320.39025H
• Fits rear brake applications on select Volvo S60, V70, XC70, and S80 models
• Fully coated disc finish and coated hat finish for corrosion resistance on non-mating surfaces
• High carbon content rotor metallurgy for OE-style thermal and braking characteristics
• Solid rotor design with smooth surface type
• 288 mm outside diameter, 5-lug pattern, 108 mm bolt circle
• Center hole diameter: 68 mm

GCX Rotor Line Details

Centric’s GCX rotor family is application specific, with coating patterns and metallurgy selected to match the vehicle’s brake system requirements. The RS200-style coating on non-mating surfaces helps protect the rotor from rust and corrosion, while the high carbon alloy formulation supports consistent performance in everyday driving. If you are replacing a rear brake rotor on a Volvo S60, Volvo V70, Volvo XC70, or Volvo S80, part number 320.39025H is built for that exact type of service.

What This Rotor Helps Address

• Rear brake pulsation caused by worn or uneven rotor surfaces
• Rust buildup on exposed rotor areas
• Brake noise related to rotor surface condition
• Reduced braking consistency from rotor wear
• Replacement needs for 288 mm rear Volvo brake rotor applications

Installation Notes

Verify rotor diameter, center hole size, bolt pattern, and rear-position fitment before installation. This rotor is a solid rear disc design and does not include ABS tone ring or bearings. For best results, inspect pads, caliper hardware, and hub condition during brake service. Confirm the vehicle application against the fitment list for 1999-2006 Volvo S80 rear, 2001-2003 Volvo V70 rear, 2001-2009 Volvo S60 rear, 2003-2007 Volvo XC70 rear, and 2004-2007 Volvo V70 rear.

Quality Assurance

Centric manufactures the GCX line to match OE performance targets and vehicle-specific metallurgy requirements. This part cross-references Raybestos Brakes 980045FZN for the same application.
