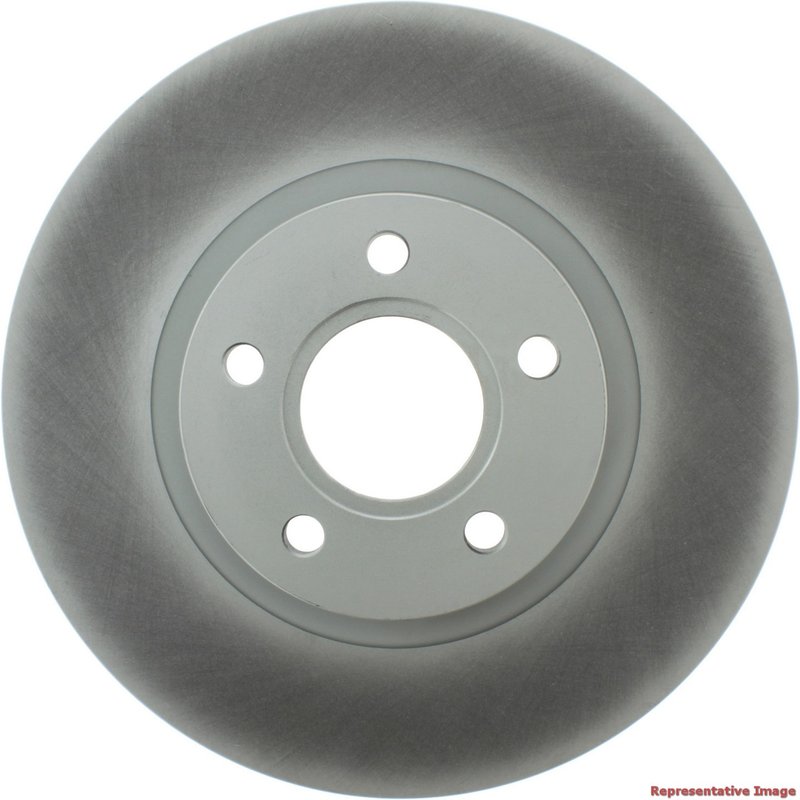

Centric 320.39037F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor for Ford and Volvo

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.39037F, is a front vented rotor built for select Ford and Volvo applications. It features a fully coated disc finish and coated hat finish to help protect exposed metal surfaces while maintaining a smooth braking surface.

Key Features

• Part number 320.39037F
• Fully coated disc finish with coated hat finish
• Vented rotor design with straight vane style
• 11.811 in. outside diameter and 1.917 in. overall height
• Nominal thickness: 0.984 in. / 25.000 mm
• Discard thickness: 0.906 in. / 23.000 mm
• 5-lug pattern with 108.000 mm bolt circle
• Floating disc mounting and smooth surface type
• No ABS tone ring included

Product Details

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating are engineered as front disc brake rotors for vehicles that use a 300 mm front rotor size. This Centric rotor, part number 320.39037F, measures 300.000 mm in outside diameter, 63.600 mm center hole diameter, and 48.700 mm overall height, with a vented, straight-vane construction for front brake service. The fully coated finish and coated hat help reduce exposed-surface corrosion on the rotor and hat areas, making it a practical choice for daily-driven Ford Escape, Ford C-Max, and Volvo front brake applications.

Compatible With select front applications including 2013-2019 Ford Escape, 2013-2017 Ford C-Max, 2012-2013 Volvo C30, 2006-2013 Volvo C70, 2004-2012 Volvo S40, 2007-2011 Volvo C30, and 2005-2011 Volvo V50. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Front brake pulsation caused by worn rotor surfaces
• Corrosion on exposed rotor and hat areas
• Reduced braking consistency from rotor wear
• Noise or vibration associated with rotor deterioration
• Service replacement needs on 300 mm front brake setups

Installation Notes and Tips

Verify rotor diameter, center hole size, bolt circle, and front brake configuration before installation. This rotor is for front use only and does not include bearings or an ABS tone ring. For best results, inspect pads, caliper condition, and hub mounting surfaces during brake service, and confirm the vehicle uses a 5-lug, 108 mm bolt circle setup.

Quality Assurance

Centric GCX Elemental Protection Disc Brake Rotors are built with coated surfaces and application-specific dimensions to support consistent fitment on the listed Ford and Volvo models. Part number 320.39037F is specified for front brake service on the confirmed applications above.
