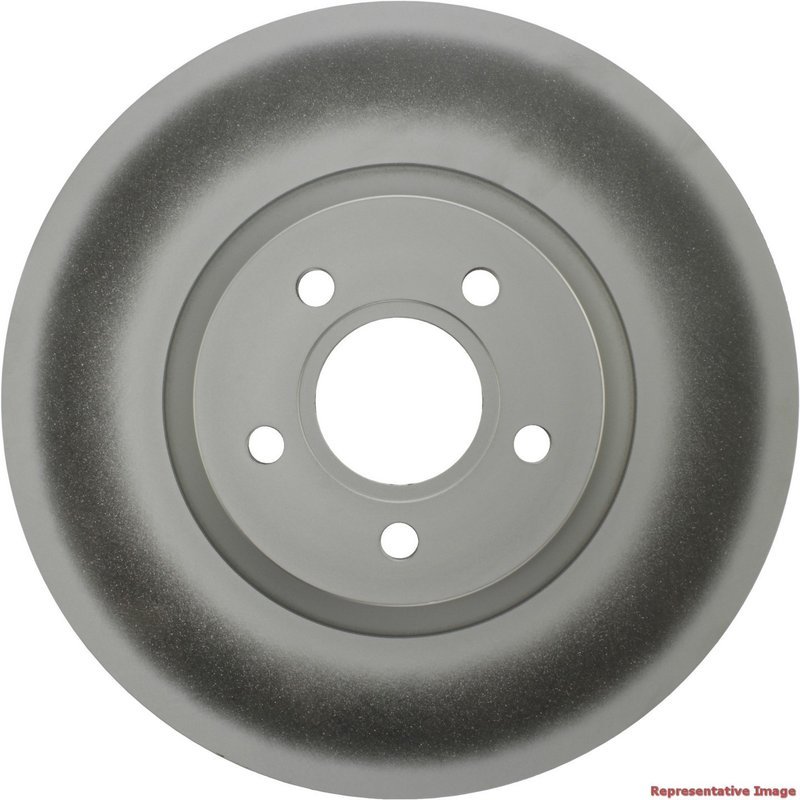

Centric 320.39038H Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Ford, Lincoln, and Volvo Vehicles

The Centric GCX Elemental Protection Disc Brake Rotor - Full Coating, High Carbon Content (Part Number 320.39038H) offers a durable and precise braking solution for select Ford, Lincoln, and Volvo models. Designed to meet OEM specifications, this vented rotor ensures consistent performance and long service life.

• Full coating on disc and hat for enhanced corrosion resistance
• High carbon content for improved heat dissipation and reduced brake fade
• Vented design with straight vanes to optimize cooling
• Nominal thickness of 0.984 inches (25.000 mm) with discard thickness at 0.906 inches (23.000 mm)
• Overall diameter of 12.598 inches (320.000 mm) and overall height of 1.917 inches (48.700 mm)
• Floating disc mounting and smooth surface finish for reliable braking
• Compatible with 5-lug wheel configurations (bolt circle diameter 108.000 mm)

About the Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content line is engineered to provide enhanced corrosion protection and thermal management. The full coating on both the disc and hat surfaces helps prevent rust and extends rotor life, especially in harsh driving environments. The high carbon content improves rotor strength and heat dissipation, reducing the risk of brake fade during demanding conditions. This rotor is designed with a vented, straight vane style to maintain optimal cooling and consistent braking performance.

Detailed Product Specifications

This disc brake rotor features a nominal thickness of 0.984 inches (25.000 mm) and a discard thickness of 0.906 inches (23.000 mm), ensuring it meets strict wear limits for safety and performance. The rotor's outside diameter measures 12.598 inches (320.000 mm), with an overall height of 1.917 inches (48.700 mm). It includes a floating disc mounting system and a smooth surface finish to provide consistent pad contact and braking efficiency. The hat is coated to resist corrosion, and the rotor weighs approximately 21 lbs (9.55 kgs). It is designed for vehicles with a 5-lug wheel pattern and a mounting bolt hole circle diameter of 108.000 mm (4.252 inches).

Compatible Vehicles and Applications

• Ford Escape and Transit Connect models
• Lincoln MKC
• Volvo C70, S40, V50
• Ford Focus

This rotor is ideal for replacing worn or damaged disc brake rotors on these specific models, restoring braking performance and safety.

Common Issues Addressed by This Rotor

• Brake rotor warping causing vibration during braking
• Corrosion and rust buildup reducing rotor lifespan
• Brake fade due to insufficient heat dissipation
• Uneven brake pad wear from damaged or worn rotors
• Noise and reduced braking efficiency from surface imperfections

Installation Notes and Tips

Ensure the rotor is installed on compatible vehicles including Ford Escape, Lincoln MKC, and Volvo S40 models. Verify the rotor thickness before installation to confirm it is above the discard limit of 0.906 inches (23.000 mm). Clean the hub surface and mounting area to prevent runout and ensure proper rotor seating. Use proper torque specifications on lug nuts and mounting bolts. This rotor does not include bearings or an ABS tone ring, so verify compatibility with your vehicle’s braking system.

Quality Assurance and Warranty

Centric GCX rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The full coating and high carbon content materials contribute to durability and consistent braking performance. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
