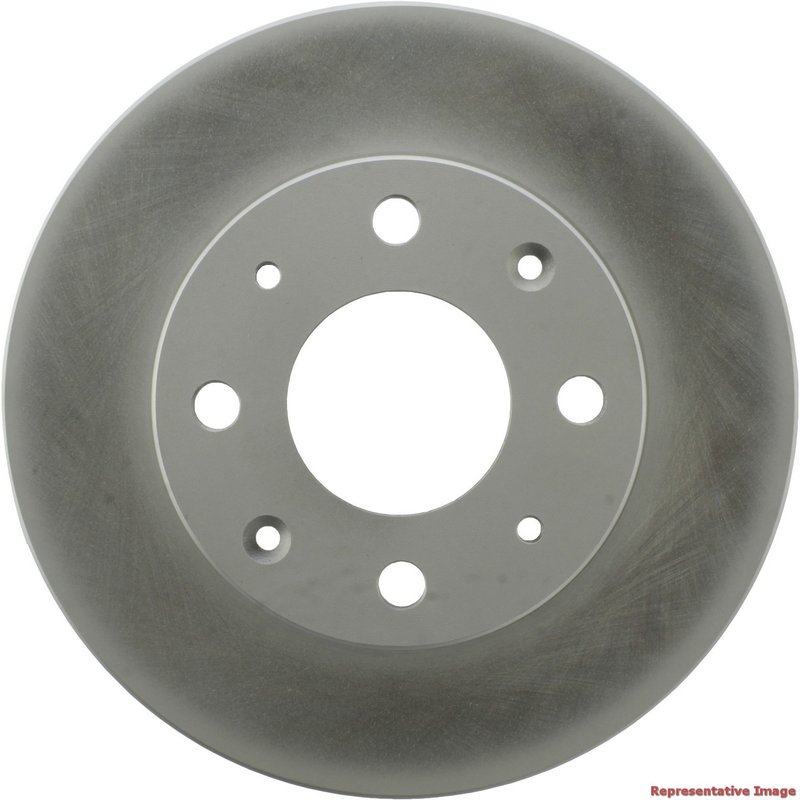

Centric 320.40005F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance for Honda Civic, CRX, and Insight models. Designed with a fully coated disc and hat finish, these rotors offer enhanced corrosion resistance and durability.

• Part Number: 320.40005F
• Compatible with Honda Civic, CRX, and Insight
• Fully coated disc and hat finish for corrosion protection
• Vented rotor design with straight vane style for improved heat dissipation
• Nominal thickness: 0.669 inches (17.000 mm)
• Discard thickness: 0.591 inches (15.000 mm)
• Outside diameter: 9.094 inches (231.000 mm)
• Overall height: 1.732 inches (44.000 mm)
• Floating disc mounting and smooth surface finish
• 4 stud/lug holes with 0.504 inch (12.800 mm) diameter

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a full protective coating to resist rust and corrosion. This coating extends the rotor's service life, especially in environments prone to moisture and road salt exposure. The full coating on both the disc and hat ensures consistent protection across the entire rotor surface, making it suitable for Honda Civic, CRX, and Insight vehicles requiring dependable braking components.

Technical Description and Specifications

This disc brake rotor features a vented design with straight vanes to facilitate efficient heat dissipation during braking, reducing the risk of brake fade. The rotor has a nominal thickness of 0.669 inches (17.000 mm) and a discard thickness of 0.591 inches (15.000 mm), indicating when replacement is necessary to maintain safe braking performance. The outside diameter measures 9.094 inches (231.000 mm), and the overall height is 1.732 inches (44.000 mm). The rotor mounts using a floating disc mounting system and includes four stud/lug holes with a diameter of 0.504 inches (12.800 mm). The smooth surface finish supports consistent pad contact and braking efficiency.

Applications and Problem Solving

• Replacement for worn or warped rotors on Honda Civic, CRX, and Insight
• Addresses rotor corrosion and rust issues with full coating protection
• Improves heat dissipation to reduce brake fade during extended use
• Restores braking performance affected by rotor thickness below discard limits
• Suitable for vehicles experiencing uneven braking or vibration due to rotor wear

Installation Notes and Tips

Ensure the rotor thickness is measured before installation to confirm it meets or exceeds the nominal thickness of 0.669 inches (17.000 mm). Clean the hub surface thoroughly to prevent rotor runout. Use proper torque specifications for the four mounting lug holes to avoid distortion. Since this rotor does not include bearings or an ABS tone ring, verify compatibility with your vehicle’s braking system. The floating disc mounting design requires careful alignment during installation to maintain optimal rotor performance.

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The full coating process enhances corrosion resistance, contributing to longer service life. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
