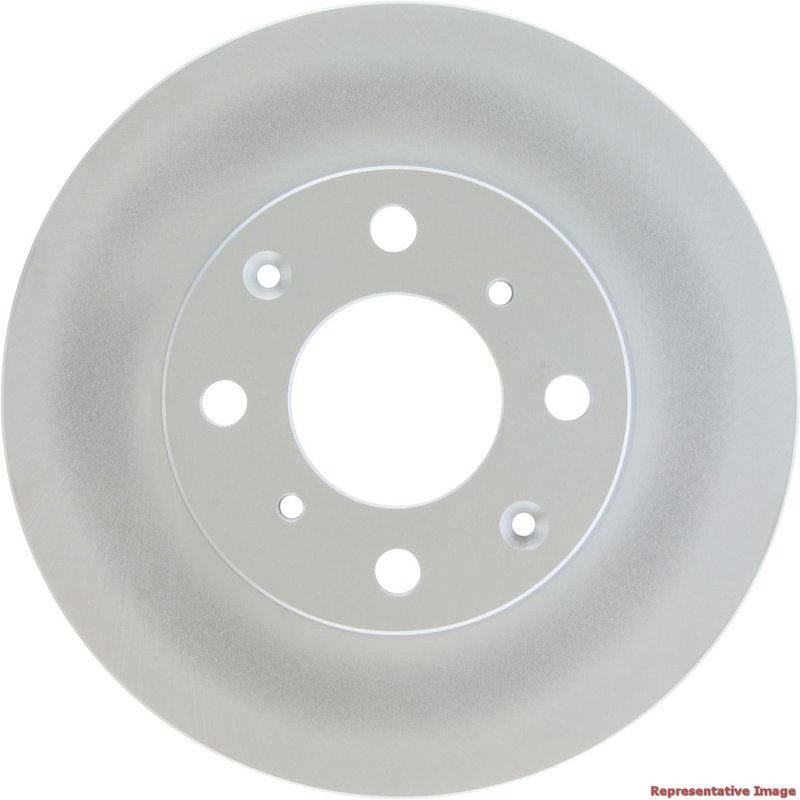

Centric 320.40023F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance for Honda Civic, Civic del Sol, and CRX models. Designed with a fully coated disc and hat finish, these rotors offer enhanced corrosion resistance and durability for long-term use.

• Part Number: 320.40023F
• Fully coated disc and hat finish for corrosion protection
• Vented rotor design with straight vanes for improved heat dissipation
• Nominal thickness: 0.827 inches (21.000 mm)
• Discard thickness: 0.748 inches (19.000 mm)
• Outside diameter: 9.449 inches (240.000 mm)
• Overall height: 1.772 inches (45.000 mm)
• Floating disc mounting with 4 mounting bolt holes (100 mm bolt circle diameter)
• Compatible with Honda Civic, Civic del Sol, and CRX models

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a full protective coating on both the disc surface and the hat. This coating helps prevent rust and corrosion, extending the rotor's service life and maintaining consistent braking performance. The vented design with straight vanes enhances cooling efficiency, which is critical for maintaining rotor integrity under demanding driving conditions.

Technical Description and Specifications

This disc brake rotor features a vented design with straight vanes to optimize airflow and heat dissipation during braking. The rotor has a nominal thickness of 0.827 inches (21.000 mm) and a discard thickness of 0.748 inches (19.000 mm), ensuring safe replacement intervals. The outside diameter measures 9.449 inches (240.000 mm), with an overall height of 1.772 inches (45.000 mm). The rotor is fully coated, including the hat, to resist corrosion and wear. It mounts using a floating disc system with four mounting bolt holes arranged on a 100 mm bolt circle diameter, compatible with vehicles requiring a 4-lug pattern with 0.504 inch (12.800 mm) stud hole diameter. The smooth surface finish supports consistent pad contact and braking performance.

Applications and Problem Solving

• Replacement for worn or warped rotors on Honda Civic, Civic del Sol, and CRX
• Addresses rotor corrosion and rust issues with full coating protection
• Improves heat dissipation to reduce brake fade during extended use
• Restores braking performance affected by uneven rotor wear
• Compatible upgrade for maintaining OEM braking specifications

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (0.748 inches) before installation
• Clean mounting surfaces to prevent uneven rotor seating
• Torque mounting bolts to manufacturer specifications for secure fitment
• Check compatibility with ABS systems; this rotor does not include an ABS tone ring
• Inspect brake pads and replace if worn to ensure optimal rotor performance

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The full coating process enhances corrosion resistance, contributing to longer rotor life. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Always verify warranty terms with the product documentation or supplier.
