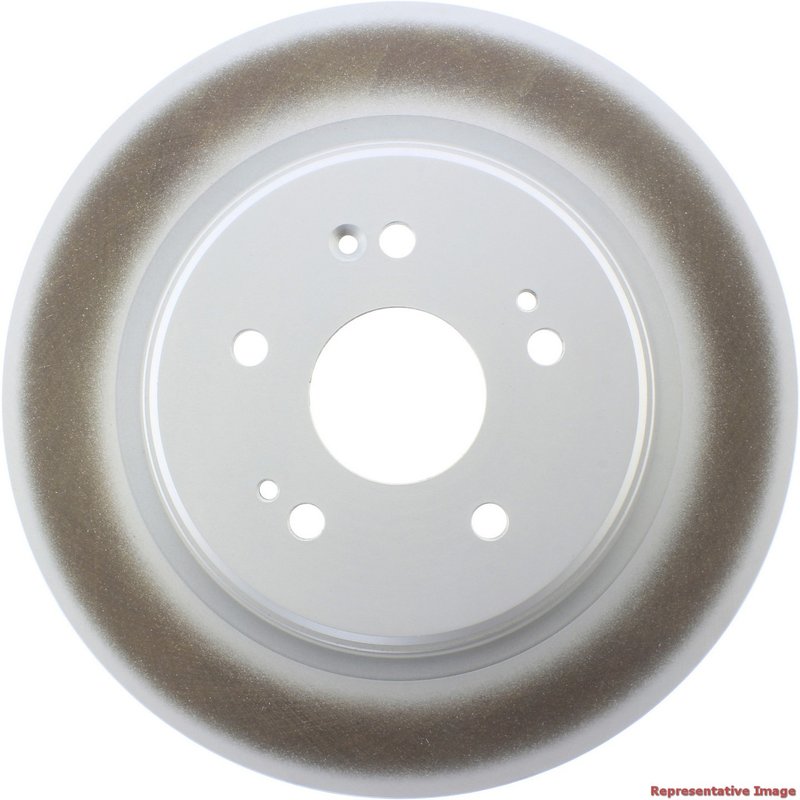

Centric 320.40087F Disc Brake Rotor - Rear

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotor 320.40087F is engineered for reliable braking performance on Acura and Honda vehicles, specifically designed for models like the CR-V and TLX. Featuring a full coating, this rotor offers enhanced corrosion resistance and durability for long-term use.

• Full coating on disc and hat for superior rust protection
• Solid disc type with smooth surface finish for consistent braking
• Nominal thickness of 0.394 inches (10.000 mm) with discard thickness at 0.315 inches (8.000 mm)
• Overall height of 1.492 inches (37.900 mm) and outside diameter of 12.205 inches (310.000 mm)
• Floating disc mounting design for improved heat dissipation
• Five stud/lug holes with 0.500 inch (12.700 mm) diameter for secure fitment

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a comprehensive protective coating that covers both the braking surface and the rotor hat. This full coating helps prevent rust and corrosion, which can degrade rotor performance and lifespan. The 320.40087F rotor is part of this line, offering a solid rotor design with a smooth surface finish, optimized for Acura CR-V and Honda TLX models requiring dependable braking components.

Technical Specifications and Features

This rotor features a nominal thickness of 0.394 inches (10.000 mm) and a discard thickness of 0.315 inches (8.000 mm), ensuring it meets OEM standards for wear limits. The solid rotor design provides consistent braking without the complexity of vented rotors. The floating disc mounting allows for slight movement to reduce stress and improve heat management during braking. The rotor’s overall height is 1.492 inches (37.900 mm), with an outside diameter of 12.205 inches (310.000 mm), matching factory specifications for proper fitment on compatible vehicles.

Compatible Vehicles and Applications

• Replacement rotor for Acura CR-V models
• Suitable for Honda TLX vehicles
• Designed to address rotor wear and corrosion issues
• Ideal for restoring braking performance and safety
• Helps resolve brake noise and vibration caused by worn rotors

Installation Notes and Tips

When installing the Centric GCX Elemental Protection Disc Brake Rotor 320.40087F, ensure the rotor surface is clean and free of contaminants. Verify the rotor thickness before installation to confirm it is above the discard limit. Use proper torque specifications on the five lug holes (0.500 inch diameter) to secure the rotor. Since this rotor does not include bearings or an ABS tone ring, reuse existing components if applicable. The floating disc mounting requires careful alignment to maintain proper rotor function.

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. The full coating on both the disc and hat provides enhanced corrosion resistance, extending the rotor’s service life. While specific warranty details are not provided here, Centric typically offers coverage against manufacturing defects. Always consult product documentation or the manufacturer for exact warranty terms.
