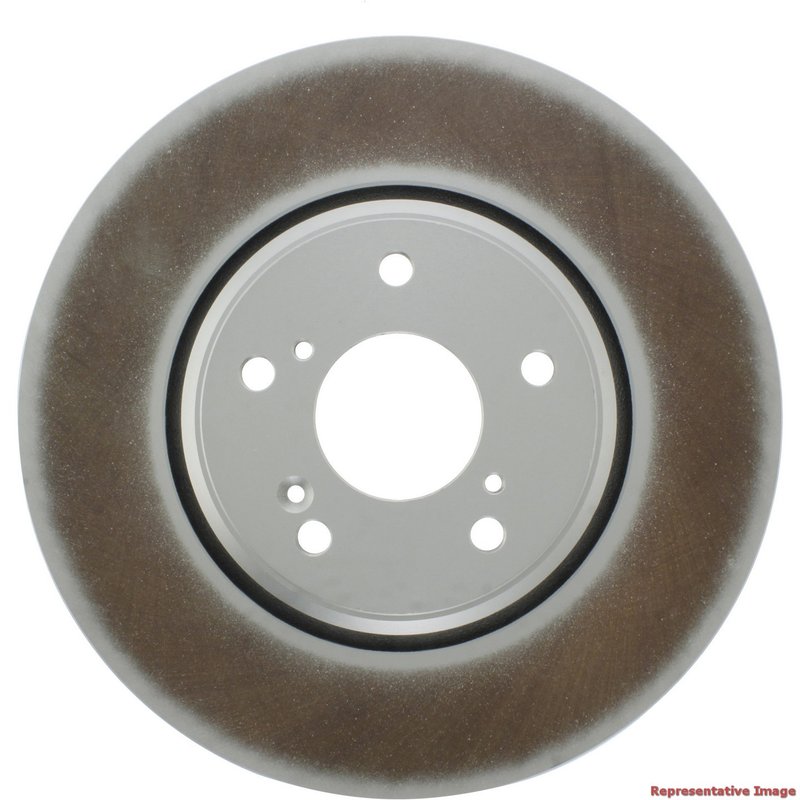

Centric 320.40094F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance for Acura and Honda vehicles. Designed specifically for models like the Accord, Civic, and ILX, these rotors offer enhanced corrosion resistance and durability through a full coating finish.

• Part Number: 320.40094F
• Fully coated disc and hat finish for corrosion protection
• Vented rotor design with 60 straight vanes for improved heat dissipation
• Nominal thickness of 0.984 inches (25.000 mm) with discard thickness at 0.906 inches (23.000 mm)
• Outside diameter of 12.283 inches (312.000 mm)
• Overall height of 1.858 inches (47.200 mm)
• Floating disc mounting and smooth surface type
• Five stud/lug holes with 0.488 inch (12.400 mm) diameter

Product Line Details: Centric GCX Elemental Protection

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a comprehensive protective coating that guards against rust and corrosion. This full coating extends the rotor’s service life and maintains consistent braking performance, especially in environments prone to moisture and road salt. The product line is engineered to meet or exceed OEM specifications, making it a suitable replacement for Acura and Honda vehicles requiring dependable rotor performance.

Technical Specifications and Features

This disc brake rotor features a vented design with 60 straight vanes, which enhances airflow and heat dissipation during braking. The rotor’s nominal thickness is 0.984 inches (25.000 mm), with a discard thickness of 0.906 inches (23.000 mm), ensuring safe and effective braking over its lifespan. The fully coated disc and hat finish provide protection against corrosion, while the smooth surface type supports consistent pad contact. The rotor measures 12.283 inches (312.000 mm) in outside diameter and has an overall height of 1.858 inches (47.200 mm). It mounts using a floating disc system and includes five stud/lug holes with a diameter of 0.488 inches (12.400 mm).

Compatible Vehicles and Applications

• Designed for Acura Accord models requiring part number 320.40094F
• Compatible with Honda Civic vehicles needing vented, fully coated rotors
• Fits Honda ILX models with matching rotor specifications
• Ideal for replacing worn or corroded rotors on these specific Acura and Honda models

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (0.906 inches) before installation
• Clean hub surface before mounting to prevent uneven rotor seating
• Use proper torque specifications for lug nuts to avoid rotor warping
• Check for ABS tone ring compatibility; this rotor does not include an ABS tone ring
• Inspect brake pads and hardware during rotor replacement for optimal performance

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM standards, ensuring reliable braking performance and durability. The full coating finish provides extended corrosion resistance, contributing to longer rotor life. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always refer to the manufacturer’s warranty documentation for complete terms.
