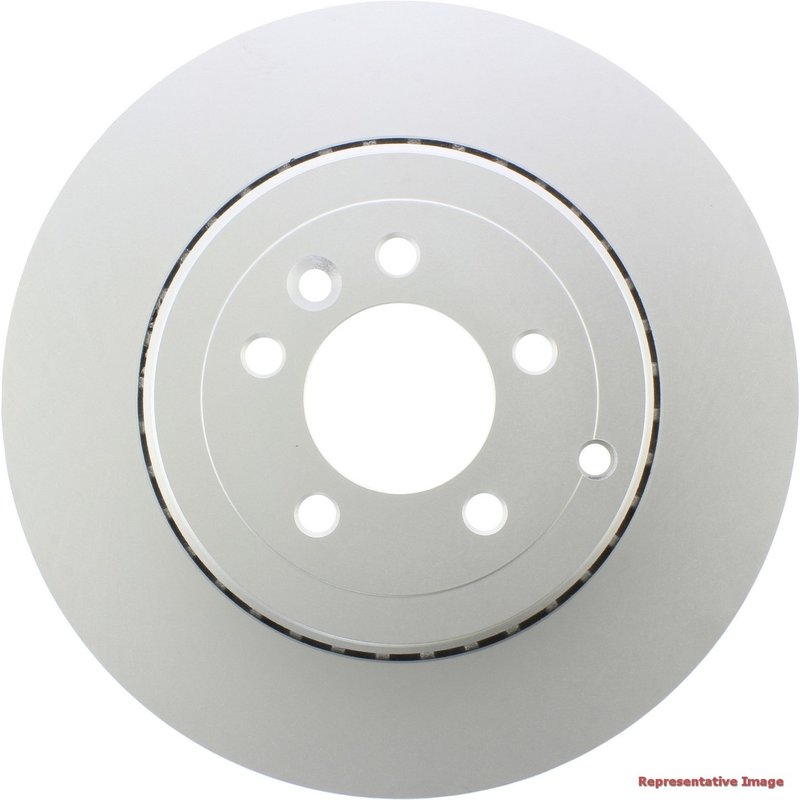

Centric 320.42068F Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Nissan Pathfinder and Infiniti QX4

The Centric GCX Elemental Protection Disc Brake Rotor - Full Coating (part number 320.42068F) is engineered to provide consistent braking performance for Nissan Pathfinder and Infiniti QX4 models. Designed with durability and corrosion resistance in mind, this rotor ensures dependable stopping power under various driving conditions.

• Fully coated disc and hat finish for enhanced corrosion protection
• Vented rotor design with straight vane style for improved heat dissipation
• Nominal thickness of 1.102 inches (28.000 mm) with discard thickness at 1.024 inches (26.000 mm)
• Overall height of 1.496 inches (38.000 mm) and outside diameter of 11.811 inches (300.000 mm)
• Six mounting bolt holes with a bolt thread pitch of 1.250 inches
• Center hole diameter of 3.941 inches (100.100 mm) and mounting bolt hole circle diameter of 4.882 inches (124.000 mm)
• Weight approximately 19.72 lbs (8.96 kgs)
• Solid smooth surface type without ABS tone ring

About the Centric GCX Elemental Protection Disc Brake Rotors - Full Coating Line

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating product line focuses on providing rotors with a complete protective coating on both the disc and hat surfaces. This full coating helps to reduce rust and corrosion, extending the rotor's service life and maintaining consistent braking performance. The rotors in this line are designed to meet or exceed OEM specifications, making them suitable replacements for Nissan Pathfinder and Infiniti QX4 vehicles requiring reliable braking components.

Product Details and Specifications

This disc brake rotor features a vented design with straight vanes that promote efficient heat dissipation during braking, reducing the risk of brake fade. The rotor's nominal thickness is 1.102 inches (28.000 mm), with a discard thickness of 1.024 inches (26.000 mm), indicating when the rotor should be replaced to maintain safe braking performance. The fully coated disc and hat finish provide protection against environmental elements, helping to prevent rust and corrosion that can compromise rotor integrity.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation or vibration
• Addressing corrosion-related rotor surface degradation
• Improving heat management to reduce brake fade during heavy use
• Restoring proper rotor thickness for consistent braking response
• Ensuring compatibility with Nissan Pathfinder and Infiniti QX4 brake systems

Installation Notes and Tips

When installing the Centric GCX Elemental Protection Disc Brake Rotor 320.42068F, ensure the rotor is mounted behind the hub as specified. Verify the mounting bolt hole pattern matches the vehicle’s specifications, with six bolt holes and a 1.250-inch thread pitch. It is recommended to inspect the brake pads and calipers during installation to ensure optimal braking system performance. Proper torque specifications should be followed to secure the rotor safely.

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. The full coating process enhances corrosion resistance, contributing to longer rotor life. While specific warranty details are not provided, Centric products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
