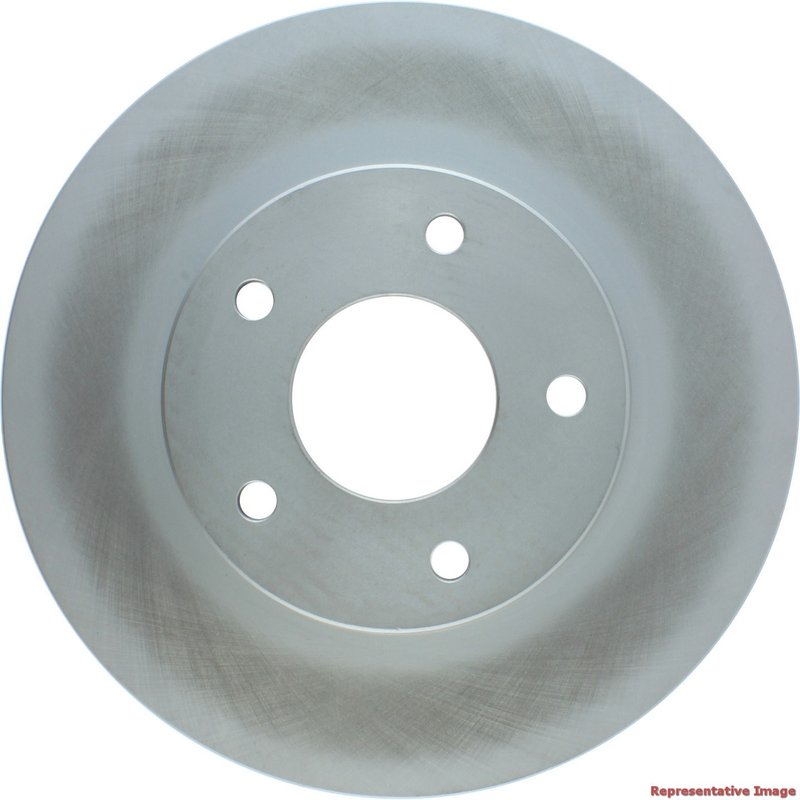

Centric 320.42069F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor for Maxima and I30

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.42069F, is a front vented rotor built for 1999-2001 Nissan Maxima and 2000-2001 INFINITI I30 applications. It features a fully coated disc finish and coated hat finish to help protect exposed metal surfaces while maintaining a smooth braking surface.

Key Features

• Part number 320.42069F for front brake service
• Fully coated disc finish with coated hat finish
• Vented rotor design with straight vane construction
• Smooth surface type for consistent pad contact
• 5-lug pattern with 114.3 mm bolt circle
• Outside diameter: 279.8 mm (11.016 in.)
• Nominal thickness: 26.0 mm (1.024 in.)
• Discard thickness: 24.0 mm (0.945 in.)
• Center hole diameter: 68.0 mm
• Floating disc mounting with 2 miscellaneous holes

Product Details

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating are built for front axle brake replacement on the Nissan Maxima and INFINITI I30. The coated rotor surfaces help reduce exposure of the rotor body and hat to corrosion, while the vented, straight-vane design supports heat management during repeated stops. With a smooth friction surface, this rotor is suited to direct brake service where OE-style dimensions and fitment matter. This part number 320.42069F matches 1999 Nissan Maxima front, 2000-2001 Nissan Maxima front, and 2000-2001 INFINITI I30 front applications.

What This Rotor Helps Address

• Front brake pulsation caused by worn or out-of-spec rotors
• Corrosion on exposed rotor surfaces and hat area
• Reduced braking consistency from uneven friction surfaces
• Heat buildup during repeated stop-and-go driving
• Brake service needs on 1999-2001 Nissan Maxima and 2000-2001 INFINITI I30 front axles

Installation Notes and Tips

Verify rotor dimensions, hub fit, and lug pattern before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake noise or pedal pulsation. Replace pads as needed and follow proper bedding procedures after installation. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Quality Assurance

Centric GCX Elemental Protection rotors are engineered with coated surfaces and OE-style dimensions for direct-fit brake service on listed Nissan Maxima and INFINITI I30 applications. Part number 320.42069F is specified for front use and built to match the listed rotor measurements and mounting configuration.
