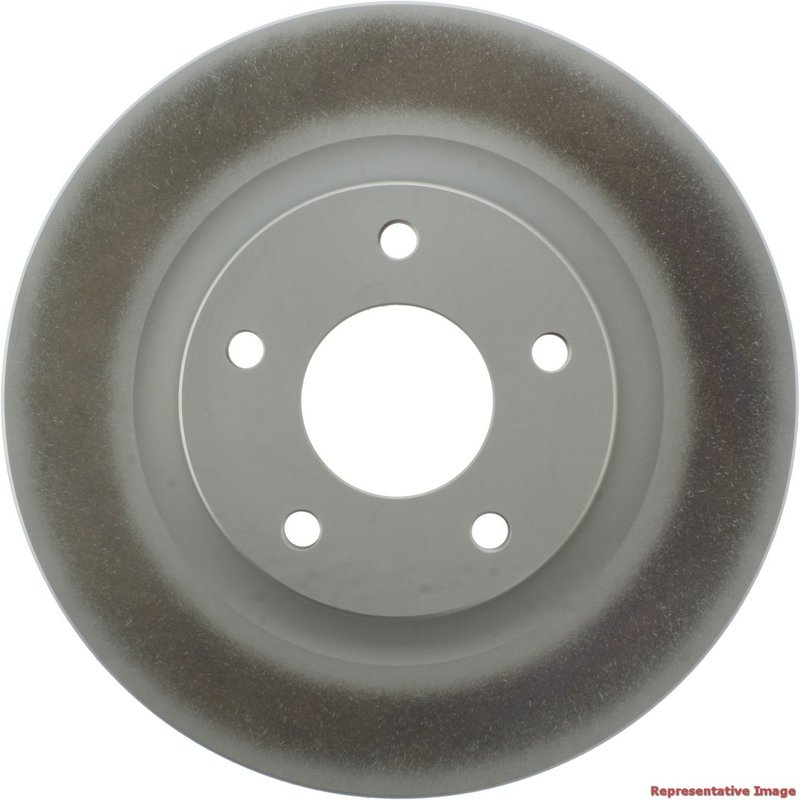

Centric 320.42108F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor for Nissan

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.42108F, is a front vented rotor built for select Nissan applications. It features a fully coated disc finish and coated hat to help protect exposed surfaces while maintaining a smooth braking surface.

Key Features

• Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
• Part number 320.42108F
• Front disc brake rotor for select Nissan Sentra and Nissan Juke models
• Fully coated disc finish with coated hat finish
• Vented rotor design with straight vane construction
• Smooth surface type for consistent pad contact
• 5-lug pattern with 114.3 mm bolt circle
• Outside diameter: 295.5 mm (11.634 in)
• Nominal thickness: 26.0 mm (1.024 in)
• Discard thickness: 24.0 mm (0.945 in)

Product Details

Centric GCX Elemental Protection Disc Brake Rotors are built for drivers who need a direct-fit front rotor with corrosion-resistant surface treatment. This rotor uses a floating disc mounting design, a 68.0 mm center hole diameter, and a 146.37 mm hat ID for the specified Nissan fitments. The straight vane vented construction supports heat management during repeated braking, while the fully coated finish helps protect the rotor surfaces and hat area from environmental exposure.

This part number 320.42108F fits 2017-2019 Nissan Sentra, front, and 2011-2017 Nissan Juke, front. It is a practical replacement choice when servicing worn, warped, or rusted front brake rotors on these vehicles.

Common Reasons to Replace

• Brake pulsation or steering wheel shake during braking
• Rotor scoring, grooves, or uneven pad contact
• Visible rust or corrosion on the braking surface or hat
• Reduced braking smoothness from rotor wear
• Front brake service on a Nissan Sentra or Nissan Juke

Installation Notes

Verify rotor dimensions, lug pattern, and front axle fitment before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake noise or pedal pulsation. Follow the vehicle manufacturer’s brake service procedures and inspect pads, calipers, and hardware condition during rotor replacement. Part number 320.42108F is a front rotor only and should be matched to the confirmed application listed above.

Quality Assurance

Centric GCX rotors are engineered with application-specific dimensions and protective coating coverage for the listed Nissan Sentra and Nissan Juke fitments. This rotor is built to meet the dimensional and mounting requirements shown in the product specifications.
