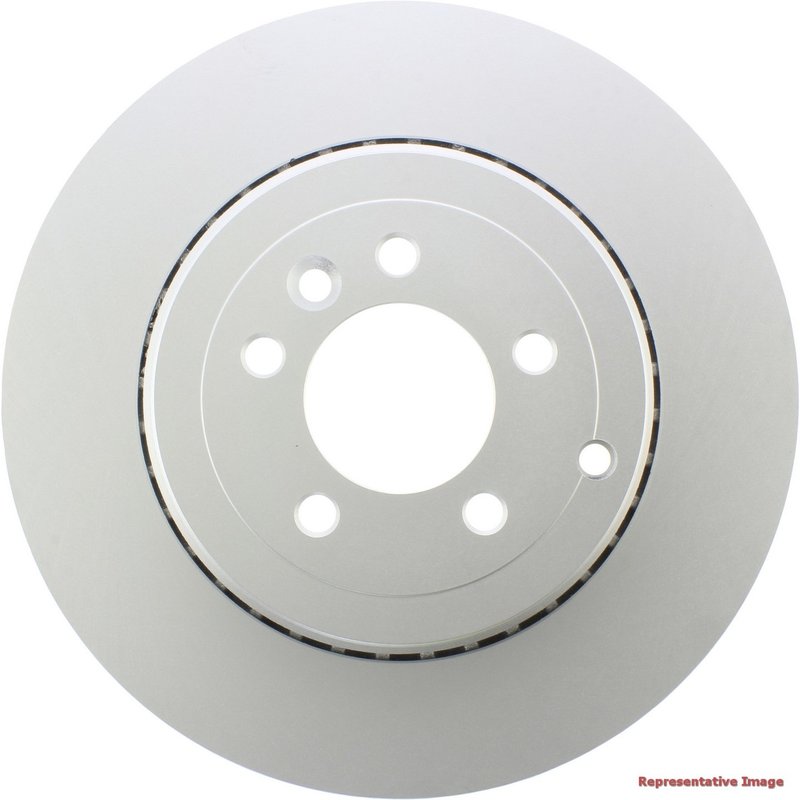

Centric 320.42116F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotor (part number 320.42116F) is engineered for reliable braking performance on Nissan vehicles, including the Note, Versa, and Versa Note models. Featuring a full coating for enhanced corrosion resistance, this vented rotor is designed to maintain smooth braking under various driving conditions.

• Full coating on disc and hat for corrosion protection
• Vented rotor design with straight vane style for heat dissipation
• Nominal thickness of 0.866 inches (22.000 mm) with discard thickness at 0.787 inches (20.000 mm)
• Outside diameter of 10.228 inches (259.800 mm)
• Floating disc mounting and smooth surface finish
• Compatible with Nissan Note, Versa, and Versa Note models
• Part number 320.42116F for precise fitment

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a complete protective coating on both the disc surface and the hat. This full coating helps prevent rust and corrosion, extending the rotor's service life and maintaining consistent braking performance. The vented design with straight vanes improves heat dissipation, reducing the risk of brake fade during extended use. This product line is suitable for drivers seeking durable, OEM-quality replacement rotors for their Nissan vehicles.

Technical Specifications and Features

This disc brake rotor features a nominal thickness of 0.866 inches (22.000 mm) and a discard thickness of 0.787 inches (20.000 mm), ensuring it meets safety and performance standards. The rotor's outside diameter measures 10.228 inches (259.800 mm), with an overall height of 1.732 inches (44.000 mm). It includes a floating disc mounting system and a smooth surface finish to optimize brake pad contact and reduce noise. The rotor is vented with straight vanes to enhance cooling efficiency during braking. It has four stud/lug holes with a diameter of 0.504 inches (12.800 mm) and a mounting bolt hole circle diameter of 100.000 mm (3.937 inches). The hat is coated and has an inside diameter of 5.632 inches (143.060 mm).

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Nissan Note, Versa, and Versa Note
• Addresses brake noise and vibration issues caused by uneven rotor surfaces
• Helps prevent rust and corrosion that can reduce braking efficiency
• Improves heat dissipation to reduce brake fade during extended driving
• Restores proper rotor thickness for safe braking performance

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean mounting surfaces to prevent uneven rotor seating
• Use proper torque specifications for mounting bolts
• Check compatibility with vehicle ABS system; this rotor does not include an ABS tone ring
• Inspect brake pads and replace if worn to ensure optimal rotor performance

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The full coating on both the disc and hat provides enhanced corrosion resistance. While specific warranty details for part number 320.42116F are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always refer to the manufacturer’s warranty documentation for complete information.
