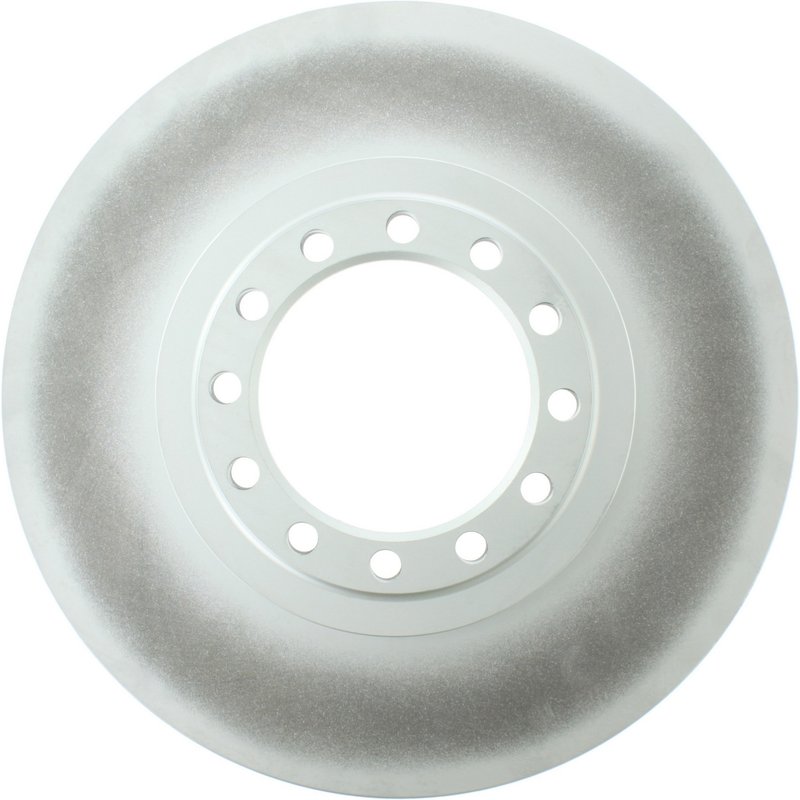

Centric 320.43020F Disc Brake Rotor - Front

Reliable Performance with Centric GCX Elemental Protection Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating (part number 320.43020F) offer a durable and corrosion-resistant solution for vehicles requiring vented disc brake rotors. Designed with a fully coated disc and hat finish, these rotors provide long-lasting protection against rust and wear.

• Fully coated disc and hat for enhanced corrosion resistance
• Vented rotor design for improved heat dissipation
• Nominal thickness of 1.354 inches (42.000 mm) with discard thickness at 1.535 inches (39.000 mm)
• Outside diameter of 14.291 inches (363.000 mm) for precise fitment
• 12 mounting bolt holes with a bolt hole circle diameter of 5.354 inches (136.000 mm)
• Center hole diameter of 4.331 inches (110.000 mm)
• Weight approximately 43 lbs (19.55 kgs)
• Smooth surface finish for consistent braking performance

Product Line Overview: Centric GCX Elemental Protection Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a full protective coating to resist corrosion and extend rotor life. This product line is engineered to meet or exceed OEM specifications, making it suitable for vehicles that require reliable braking components with enhanced elemental protection. The full coating on both the disc and hat surfaces helps maintain rotor integrity in harsh environments.

Technical Details and Specifications

This disc brake rotor features a vented design that promotes efficient heat dissipation during braking, reducing the risk of brake fade. The nominal thickness measures 1.354 inches (42.000 mm), with a discard thickness of 1.535 inches (39.000 mm), ensuring safe replacement intervals. The rotor’s outside diameter is 14.291 inches (363.000 mm), and it mounts behind the hub using 12 bolt holes arranged on a 5.354-inch (136.000 mm) bolt circle diameter. The smooth surface finish supports consistent pad contact and braking performance. Note that this rotor does not include an ABS tone ring or bearings.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Upgrading corroded rotors to prevent rust-related braking issues
• Addressing brake noise due to uneven rotor surfaces
• Improving heat management in braking systems prone to fade
• Maintaining OEM fitment and performance for compatible vehicles

Installation Notes and Tips

Ensure the rotor is installed behind the hub as specified. Verify the mounting bolt hole pattern and center hole diameter match the vehicle’s hub assembly. Clean the rotor surface before installation to remove any protective coating residue that could affect initial braking performance. Use proper torque specifications for mounting bolts to avoid rotor warping. This rotor does not include bearings or ABS tone rings, so confirm compatibility with your vehicle’s braking system.

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The full coating process enhances corrosion resistance, contributing to longer rotor life. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Consult the product packaging or Centric’s official documentation for exact warranty terms.
