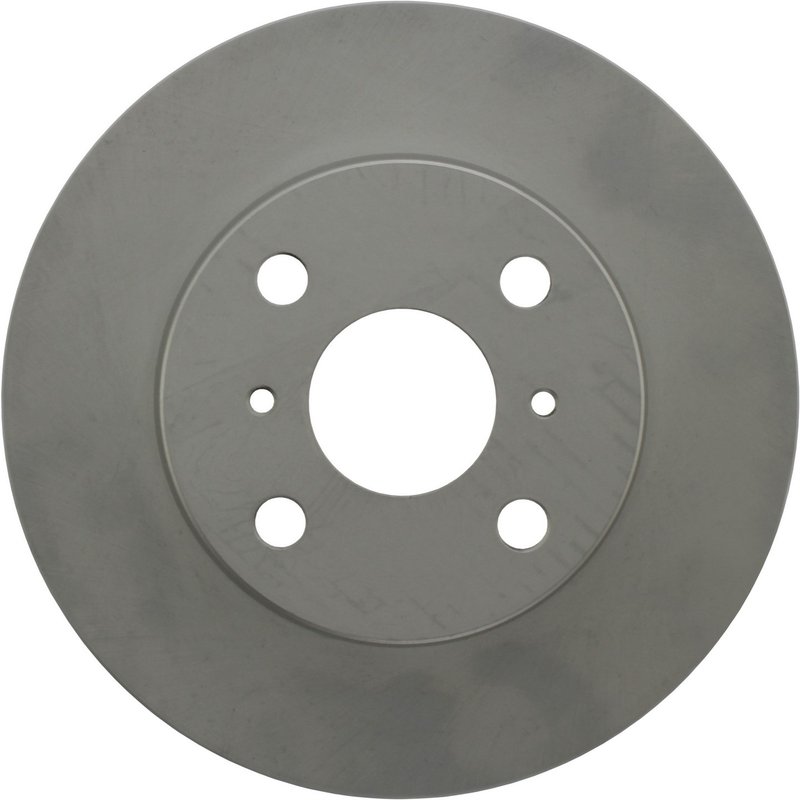

Centric 320.44024F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotor 320.44024F is engineered for reliable braking performance on Toyota Tercel vehicles. Featuring a fully coated disc and hat finish, this rotor offers enhanced corrosion resistance and durability for long-term use.

• Compatible with Toyota Tercel models
• Part number: 320.44024F
• Fully coated disc and hat for corrosion protection
• Solid disc type with smooth surface finish
• Floating disc mounting design
• Outside diameter: 243 mm (9.567 inches)
• Nominal thickness: 11.1 mm (0.437 inches)
• Discard thickness: 10 mm (0.394 inches)
• Overall height: 39.2 mm (1.543 inches)
• Mounting bolt hole circle diameter: 100 mm (3.937 inches) with 4 lug holes

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line is designed to provide enhanced elemental protection through a complete coating process. This full coating covers both the disc and hat surfaces, reducing the risk of rust and corrosion that can compromise rotor integrity and braking performance. This product line is ideal for drivers seeking a durable rotor solution that maintains consistent braking efficiency over time, especially in environments prone to moisture and road salt exposure.

Technical Specifications and Features

This solid disc brake rotor features a smooth surface type optimized for consistent pad contact and braking response. The floating disc mounting design allows for slight movement to reduce stress and improve rotor lifespan. With a center hole diameter of 54 mm (2.126 inches) and a mounting bolt hole circle diameter of 100 mm (3.937 inches), it is engineered to fit securely on Toyota Tercel brake assemblies. The rotor weighs approximately 8.75 lbs (3.98 kgs), balancing durability and ease of installation.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Toyota Tercel vehicles
• Addresses rotor corrosion and rust issues due to environmental exposure
• Improves braking consistency by restoring nominal thickness and surface finish
• Eliminates brake noise caused by uneven or damaged rotors
• Prevents premature rotor discard by maintaining proper thickness and coating protection

Installation Notes and Tips

• Ensure compatibility with Toyota Tercel brake system before installation
• Check rotor thickness and discard limits to confirm replacement necessity
• Clean mounting surfaces and hardware prior to installation for proper fit
• Torque lug nuts to manufacturer specifications to avoid rotor warping
• Inspect brake pads and replace if worn to optimize rotor performance

Quality Assurance and Warranty

Centric brake rotors are manufactured to meet or exceed OEM specifications, ensuring reliable performance and safety. The full coating process provides additional protection against corrosion, extending the rotor's service life. While specific warranty details for part number 320.44024F are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Refer to Centric's official documentation for complete warranty information.
