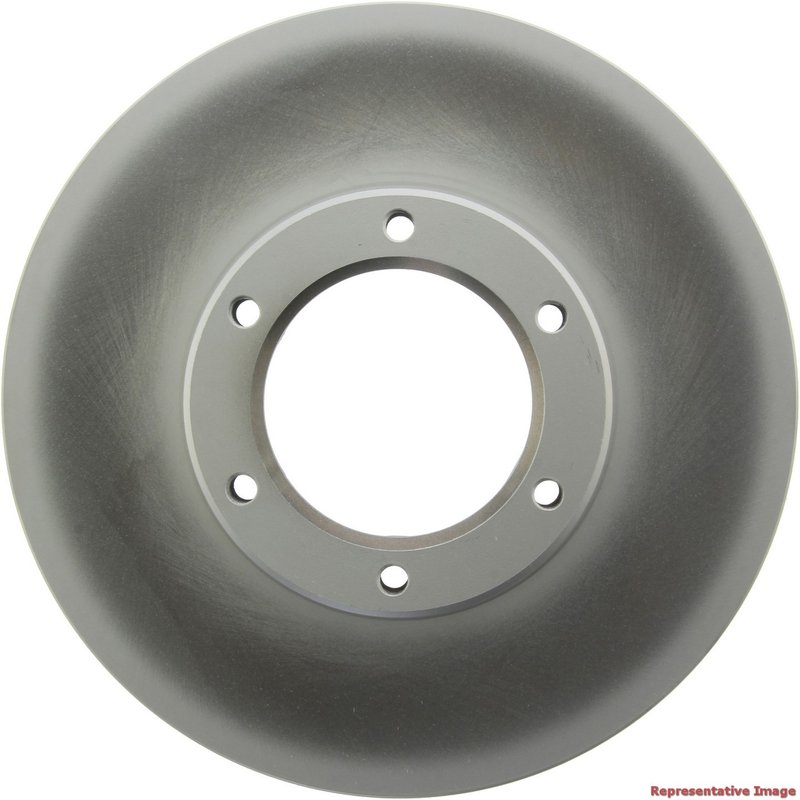

Centric 320.44049F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotor 320.44049F is engineered for Toyota Pickup models requiring reliable braking performance. Featuring a full coating, this rotor offers enhanced corrosion resistance and durability for consistent stopping power.

• Full coating on disc and hat for superior rust protection
• Vented rotor design for improved heat dissipation
• Nominal thickness of 0.984 inches (25.000 mm) with discard thickness at 0.945 inches (24.000 mm)
• Outside diameter of 10.098 inches (256.500 mm) suitable for Toyota Pickup
• Six mounting bolt holes with 1.250 bolt thread pitch
• Smooth surface finish for optimal pad contact
• Weight approximately 12.6 lbs (5.73 kgs)

About the Centric GCX Elemental Protection Product Line

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line is designed to provide enhanced corrosion resistance through a complete coating process on both the disc and hat surfaces. This full coating helps extend rotor life by protecting against rust and environmental damage, making it a practical choice for vehicles like the Toyota Pickup that may encounter varied driving conditions.

Detailed Product Description

This Centric disc brake rotor 320.44049F is a vented rotor with straight vane style, which promotes effective heat dissipation during braking to reduce the risk of brake fade. The rotor features a smooth surface finish to ensure consistent brake pad contact and performance. With an overall height of 1.835 inches (46.600 mm) and a center hole diameter of 3.307 inches (84.000 mm), it is designed to mount behind the hub with six bolt holes arranged on a 4.331 inch (110.000 mm) bolt circle diameter. The coated hat finish complements the fully coated disc surface, providing comprehensive protection against corrosion.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Toyota Pickup models
• Addresses rotor corrosion and rust issues in humid or salty environments
• Helps reduce brake noise and vibration caused by uneven rotor surfaces
• Improves braking consistency by maintaining proper rotor thickness and surface finish
• Suitable for vehicles experiencing brake fade due to heat buildup

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness of 0.945 inches (24.000 mm) before installation
• Clean mounting surface and hub to prevent uneven rotor seating
• Torque mounting bolts to manufacturer specifications using the 1.250 thread pitch bolts
• Check compatibility with ABS sensors as this rotor does not include an ABS tone ring
• Inspect brake pads for wear and replace if necessary to ensure optimal rotor performance

Quality Assurance and Warranty

Centric brake rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The full coating process enhances durability and corrosion resistance, contributing to longer service life. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Always refer to the product packaging or Centric’s official documentation for exact warranty terms.
