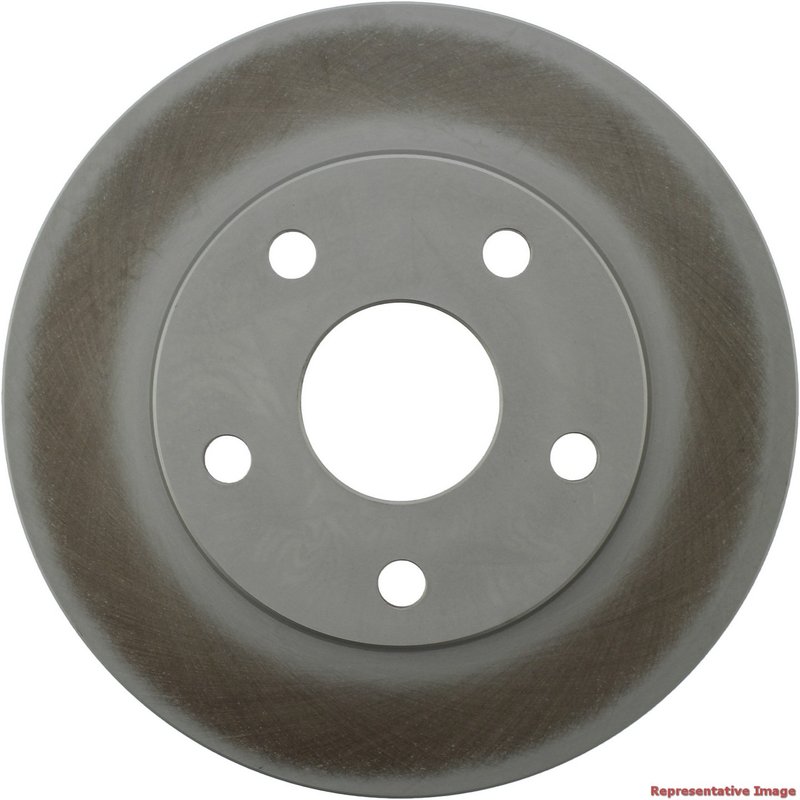

Centric 320.44069F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotor 320.44069F is engineered for Toyota MR2 models requiring reliable braking performance. Featuring a fully coated disc and hat finish, this vented rotor offers enhanced corrosion resistance and durability for consistent stopping power.

• Compatible with Toyota MR2 vehicles
• Part number: 320.44069F
• Fully coated disc and hat for corrosion protection
• Vented rotor design with straight vane style for heat dissipation
• Nominal thickness: 0.984 inches (25.000 mm)
• Discard thickness: 0.945 inches (24.000 mm)
• Outside diameter: 10.157 inches (258.000 mm)
• Overall height: 1.870 inches (47.500 mm)
• Floating disc mounting with 5 lug holes (0.571 inches diameter)
• Smooth surface finish for optimal pad contact

Detailed Product Description

This Centric GCX Elemental Protection Disc Brake Rotor 320.44069F is designed specifically for Toyota MR2 models, ensuring precise fitment and reliable braking performance. The rotor features a fully coated disc and hat finish that protects against rust and corrosion, extending the rotor's service life. Its vented design with straight vanes improves heat dissipation during braking, reducing the risk of brake fade under demanding conditions.

The rotor's nominal thickness of 0.984 inches (25.000 mm) and discard thickness of 0.945 inches (24.000 mm) provide clear service limits for maintenance. With an outside diameter of 10.157 inches (258.000 mm) and overall height of 1.870 inches (47.500 mm), this rotor matches OEM specifications for the Toyota MR2. The floating disc mounting and 5 lug holes (each 0.571 inches in diameter) ensure secure installation and compatibility with factory hardware.

About the Centric GCX Elemental Protection Disc Brake Rotors - Full Coating Line

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating product line focuses on delivering rotors with comprehensive corrosion resistance through a full coating process. This coating covers both the braking surface and the rotor hat, providing enhanced protection against environmental elements. This line is ideal for vehicles like the Toyota MR2 that require durable, long-lasting rotors capable of maintaining performance in various driving conditions.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Toyota MR2
• Addressing brake noise caused by rust or corrosion buildup
• Improving heat dissipation to reduce brake fade during aggressive driving
• Restoring braking performance after rotor surface damage
• Preventing premature rotor failure due to environmental exposure

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (0.945 inches) before installation
• Clean hub surface to prevent runout and ensure proper rotor seating
• Use proper torque specifications for lug nuts to avoid rotor warping
• Check compatibility with existing brake pads and hardware
• Perform a bed-in procedure after installation for optimal braking performance

Quality Assurance and Warranty

Centric rotors undergo rigorous quality control to meet or exceed OEM standards. The full coating process enhances corrosion resistance, contributing to longer rotor life. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Refer to manufacturer documentation for exact warranty terms.
