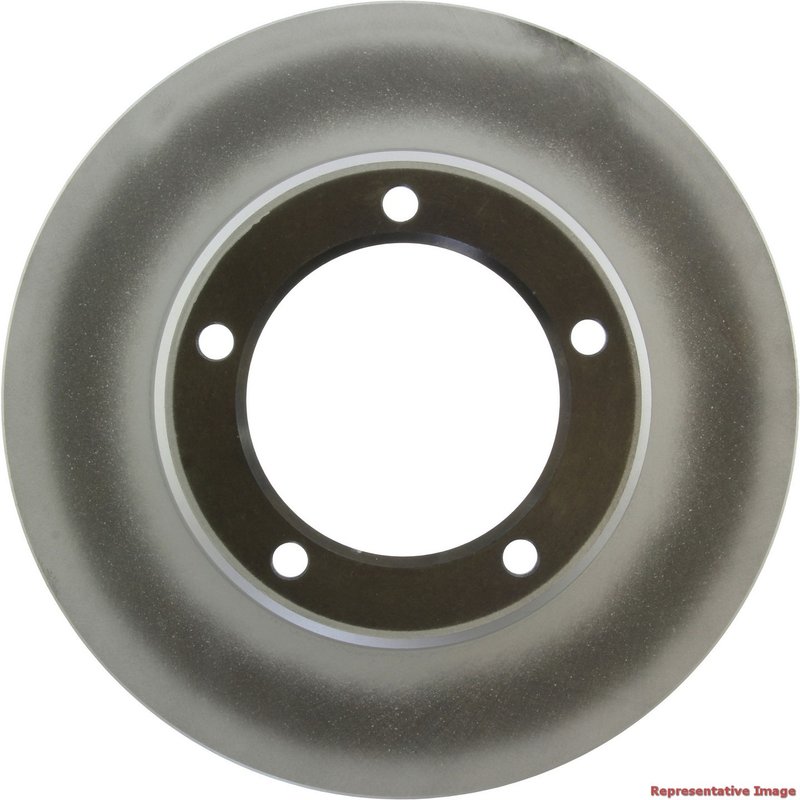

Centric 320.44086F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor for LX470 and Land Cruiser

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.44086F, is a front vented rotor built for 1998-2007 Lexus LX470 and 1998-2007 Toyota Land Cruiser applications. Its fully coated disc finish and coated hat help protect exposed metal surfaces, while the smooth braking surface supports consistent pad contact.

Key Features

• Fits 1998-2007 Lexus LX470, front
• Fits 1998-2007 Toyota Land Cruiser, front
• Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
• Part number 320.44086F
• Fully coated disc finish with coated hat finish
• Vented rotor design with straight vane style
• Smooth surface type for even brake pad engagement
• Outside diameter: 12.323 in. / 313.000 mm
• Nominal thickness: 1.260 in. / 32.000 mm
• Discard thickness: 1.181 in. / 30.000 mm
• 5-bolt mounting pattern with 144.000 mm bolt circle diameter
• Center hole diameter: 115.100 mm / 4.531 in.
• Disc mounting: behind the hub

Product Details

Centric GCX Elemental Protection Disc Brake Rotors are built for front brake service on the Lexus LX470 and Toyota Land Cruiser. The fully coated finish helps resist corrosion on the disc and hat surfaces, which is especially relevant for vehicles exposed to moisture, road salt, and daily stop-and-go driving. With a vented, straight-vane construction and smooth braking face, this rotor is specified for stable front axle braking performance and direct-fit replacement use. The 320.44086F rotor matches the listed hub and bolt pattern dimensions for the confirmed fitment range.

Common Reasons for Replacement

• Brake pulsation from rotor wear or thickness variation
• Rust buildup on the rotor hat or outer surfaces
• Reduced braking smoothness from scored or uneven rotor faces
• Front brake noise caused by worn rotor surfaces
• Service replacement for a worn Lexus LX470 or Toyota Land Cruiser front rotor

Installation Notes and Tips

Verify rotor dimensions, hub fit, and bolt pattern before installation. Clean the hub mounting surface thoroughly so the rotor seats flat behind the hub. Inspect brake pads, calipers, and hardware condition during service, and follow the vehicle manufacturer’s torque specifications and bedding procedure after installation. Part number 320.44086F is listed for front position only on the confirmed Lexus LX470 and Toyota Land Cruiser fitments.

Quality Assurance

Centric’s GCX Elemental Protection line focuses on coated rotor surfaces for added corrosion resistance in brake service applications. This rotor is engineered to match the specified fitment and dimensional requirements for the listed vehicles.
