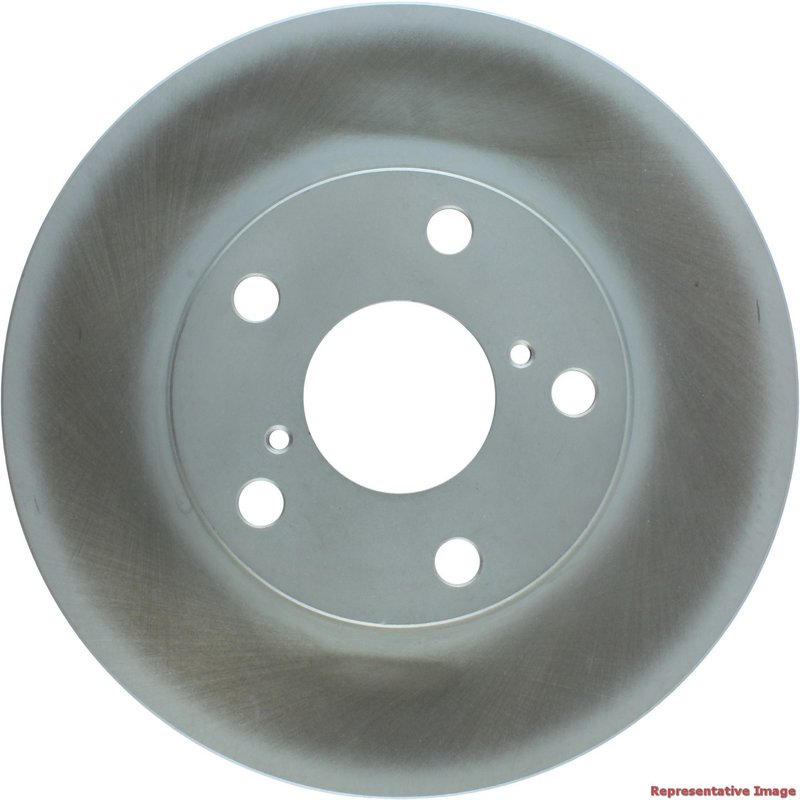

Centric 320.44121F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor for RAV4

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.44121F, is a front vented rotor built for 2001-2005 Toyota RAV4 applications. It combines a fully coated disc finish with a coated hat finish to help resist corrosion on exposed surfaces while maintaining a smooth braking surface.

For drivers searching for a front brake rotor for 2001-2005 Toyota RAV4, this Centric rotor is sized to match the listed OE-style dimensions and fitment. The 320.44121F part number is also useful when cross-checking replacement brake rotors for the Toyota RAV4 front axle.

Key Features

• Fits 2001-2005 Toyota RAV4, front
• Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line
• Part number 320.44121F
• Fully coated disc finish with coated hat finish
• Vented rotor design with straight vane style
• Smooth surface type for consistent pad contact
• Outside diameter: 10.827 in. (275.000 mm)
• Nominal thickness: 0.984 in. (25.000 mm)
• Discard thickness: 0.906 in. (23.000 mm)
• 5-lug pattern with 114.300 mm bolt circle
• Floating disc mounting and 2 miscellaneous holes

Product Details

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on corrosion protection across the rotor’s exposed metal surfaces, including the disc and hat areas. On the 320.44121F, the vented construction and straight vane layout support front-axle brake service on the Toyota RAV4, while the smooth friction surface is sized for standard pad contact and rotor replacement work.

This part number, 320.44121F, is a direct fit for 2001-2005 Toyota RAV4 front brake applications listed in the fitment data. If you are replacing worn front rotors on a Toyota RAV4, this rotor provides the specified diameter, thickness, center hole, and 5-lug mounting pattern needed for the application.

Common Reasons to Replace

• Brake pulsation from rotor wear or thickness variation
• Corrosion on the rotor hat or outer surfaces
• Reduced braking consistency from worn friction surfaces
• Rotor scoring or uneven pad contact
• Front brake service on a 2001-2005 Toyota RAV4

Installation Notes

Verify rotor dimensions, hub fit, and bolt pattern before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect brake pads and caliper hardware during service. This rotor does not include bearings or an ABS tone ring.

For fitment verification, use the vehicle listing exactly as shown: Fits 2001-2005 Toyota RAV4, front. The part number 320.44121F should be matched to the front axle application before installation.

Quality Assurance

Centric’s GCX Elemental Protection rotor line is built around coated corrosion protection and OE-style dimensional fitment for brake service. Part number 320.44121F is specified for the listed Toyota RAV4 front application and should be confirmed against the vehicle’s brake specifications before installation.
