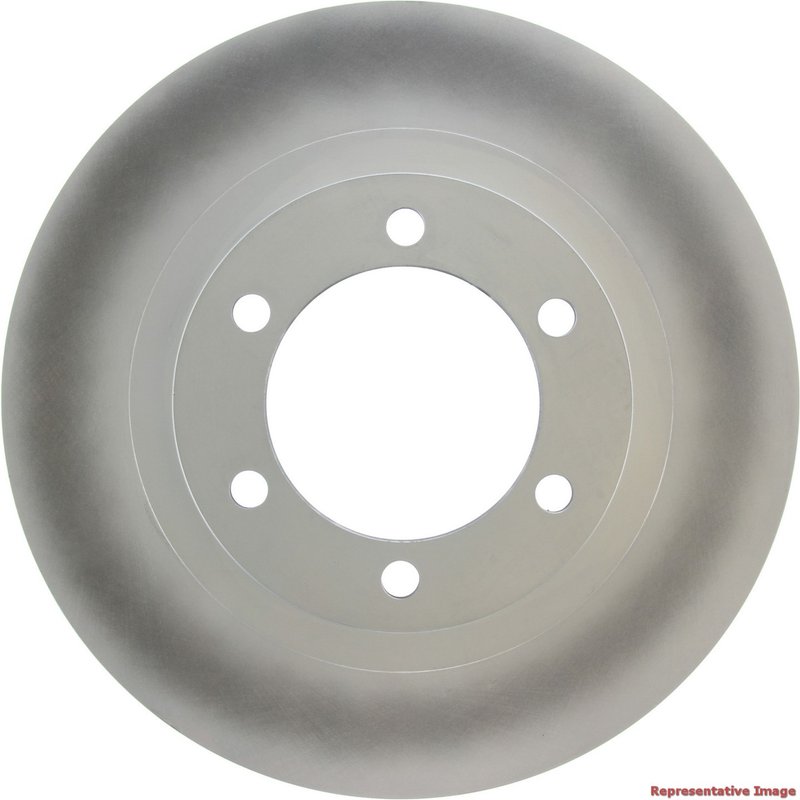

Centric 320.44127F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotor (part number 320.44127F) is engineered for reliable braking performance on Lexus and Toyota vehicles, specifically the 4Runner and GX470 models. Designed with a full coating, this rotor offers enhanced corrosion resistance and durability for long-term use.

• Full coating on disc and hat for superior rust protection
• Vented rotor design for improved heat dissipation
• Floating disc mounting for better rotor alignment
• Compatible with Lexus 4Runner and Toyota GX470
• Nominal outside diameter of 13.307 inches (338 mm)
• 6 lug holes with 0.571 inch (14.5 mm) diameter
• Overall height of 2.654 inches (67.4 mm)
• Nominal thickness of 1.083 inches (27.5 mm) with discard thickness at 1.024 inches (26 mm)

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a complete protective coating on both the disc surface and the hat. This full coating helps prevent corrosion and extends rotor life, especially in environments prone to moisture and road salt exposure. The rotors feature a vented design with straight vanes to optimize cooling and maintain consistent braking performance under demanding conditions.

Technical Specifications and Features

This disc brake rotor features a vented design with straight vanes to enhance airflow and heat dissipation, reducing the risk of brake fade during extended use. The rotor's smooth surface finish ensures consistent pad contact and braking efficiency. The floating disc mounting system allows for slight movement to reduce stress and improve rotor alignment. With a center hole diameter of 4.252 inches (108 mm) and a mounting bolt hole circle diameter of 5.5 inches (139.7 mm), this rotor is designed to fit securely on the specified Lexus and Toyota models.

Applications and Problem Solving

• Replacement for worn or warped rotors on Lexus 4Runner and Toyota GX470
• Addresses brake noise and vibration issues caused by uneven rotor surfaces
• Helps prevent rust and corrosion-related rotor damage in humid or salty environments
• Improves braking consistency and heat management during heavy braking
• Suitable for vehicles experiencing reduced braking performance due to rotor wear

Installation Notes and Tips

• Ensure compatibility with Lexus 4Runner and Toyota GX470 before installation
• Inspect brake pads and replace if worn to maintain optimal braking performance
• Clean mounting surfaces thoroughly to ensure proper rotor seating
• Torque lug nuts to manufacturer specifications to avoid rotor warping
• Check rotor thickness and discard limits to confirm suitability for reuse or replacement

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The full coating process provides added protection against corrosion, extending the rotor's service life. While specific warranty details are not provided here, Centric typically offers coverage against manufacturing defects. Refer to the product packaging or manufacturer documentation for exact warranty terms.
