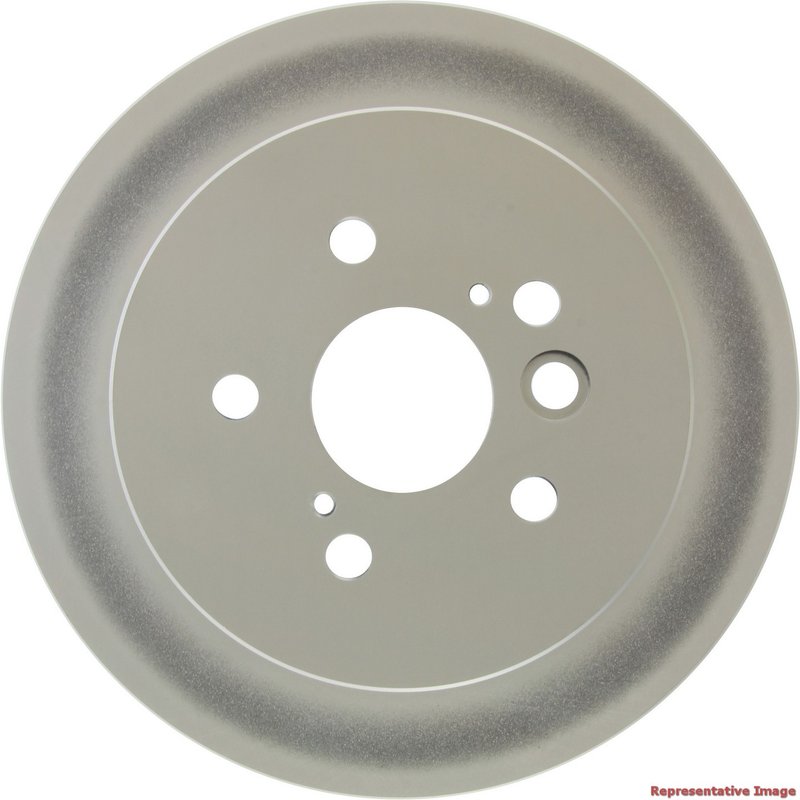

Centric 320.44134F Disc Brake Rotor - Rear

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotor 320.44134F is engineered for reliable braking performance on Toyota RAV4 models. Featuring a fully coated disc and hat finish, this rotor offers enhanced corrosion resistance and durability for long-term use.

• Fully coated disc and hat finish for corrosion protection
• Solid rotor design with smooth surface type
• Nominal thickness of 0.354 inches (9.000 mm) and discard thickness of 0.315 inches (8.000 mm)
• Outside diameter of 11.929 inches (303.000 mm)
• Five stud/lug holes with 0.579 inch (14.700 mm) diameter
• Center hole diameter of 2.445 inches (62.100 mm)
• Mounting bolt hole circle diameter of 4.500 inches (114.300 mm)
• Weight approximately 11 lbs (5 kgs)

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a comprehensive protective coating that covers both the disc and hat surfaces. This full coating helps prevent rust and corrosion, which can degrade braking performance over time. The 320.44134F rotor is part of this line, designed to maintain structural integrity and appearance while delivering consistent braking for Toyota RAV4 vehicles.

Technical Specifications and Features

This solid disc brake rotor features a smooth surface type optimized for consistent pad contact and braking efficiency. The nominal thickness of 0.354 inches (9.000 mm) ensures durability, while the discard thickness of 0.315 inches (8.000 mm) indicates the minimum safe thickness before replacement is necessary. The rotor’s outside diameter measures 11.929 inches (303.000 mm), suitable for the specified Toyota RAV4 fitment. The rotor includes five stud/lug holes with a diameter of 0.579 inches (14.700 mm) and a mounting bolt hole circle diameter of 4.500 inches (114.300 mm), ensuring proper fitment and secure installation.

Compatible Vehicles and Applications

• Compatible with Toyota RAV4 models requiring part number 320.44134F
• Designed for use in brake systems needing solid disc rotors with full coating protection
• Ideal replacement for worn or corroded rotors on compatible Toyota RAV4 vehicles
• Suitable for drivers seeking rotors with enhanced corrosion resistance and consistent braking performance

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (0.315 inches) before installation
• Clean mounting surfaces to prevent uneven rotor seating
• Torque lug nuts to manufacturer specifications for secure fitment
• Check compatibility with existing brake pads and hardware
• Perform a test drive to verify proper braking function after installation

Quality Assurance and Warranty

Centric rotors, including the 320.44134F, are manufactured to meet or exceed OEM specifications for fit, form, and function. The full coating process provides added protection against corrosion, extending rotor life. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Refer to Centric’s official documentation for complete warranty information.
