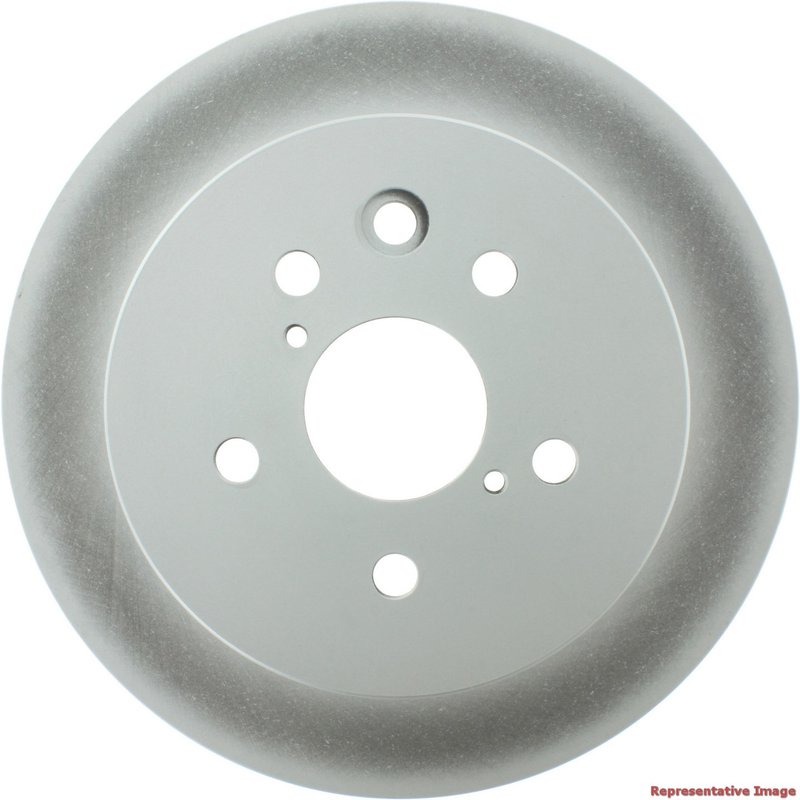

Centric 320.44141F Disc Brake Rotor - Rear

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance for Lexus GS and IS series vehicles. Designed with a fully coated finish, these rotors offer enhanced corrosion resistance and durability for long-term use.

• Part Number: 320.44141F
• Fully coated disc and hat finish for corrosion protection
• Vented rotor design for improved heat dissipation
• Compatible with Lexus GS300, GS350, GS430, GS450h, GS460, IS250, and IS350
• Floating disc mounting for better rotor alignment
• Outside diameter: 12.205 inches (310 mm)
• Nominal thickness: 0.701 inches (17.8 mm)
• Discard thickness: 0.650 inches (16.5 mm)
• Overall height: 2.657 inches (67.5 mm)
• 5 stud/lug holes with 4.5 inch (114.3 mm) bolt circle diameter

Product Line Details: Centric GCX Elemental Protection

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a complete protective coating to resist rust and corrosion. This full coating extends the rotor's service life, especially in environments prone to moisture and road salt exposure. The rotors feature a vented design with straight vanes to optimize cooling and maintain consistent braking performance under demanding conditions.

Technical Specifications and Features

This disc brake rotor is vented with straight vanes, allowing for efficient heat dissipation during braking. The rotor's smooth surface finish ensures consistent pad contact and braking response. The floating disc mounting design helps reduce stress and warping, improving rotor longevity. The rotor's dimensions include a 12.205 inch outside diameter and a nominal thickness of 0.701 inches, with a discard thickness of 0.650 inches to indicate when replacement is necessary. The hat and disc are fully coated to protect against corrosion, and the rotor includes five lug holes with a 4.5 inch bolt circle diameter, compatible with specified Lexus models.

Compatible Vehicles and Applications

• Lexus GS300 (various model years)
• Lexus GS350
• Lexus GS430
• Lexus GS450h
• Lexus GS460
• Lexus IS250
• Lexus IS350

This rotor is designed specifically for these Lexus models, ensuring proper fitment and performance when replacing worn or damaged rotors.

Common Issues Addressed by This Rotor

• Brake rotor corrosion and rust buildup
• Warped or uneven rotor surfaces causing brake pulsation
• Reduced braking efficiency due to worn rotor thickness
• Overheating and brake fade from insufficient heat dissipation
• Noise and vibration caused by damaged or uneven rotors

Installation Notes and Tips

• Ensure rotor discard thickness is not exceeded before installation
• Clean hub surface to prevent rotor runout
• Torque lug nuts to manufacturer specifications
• Check brake pads for wear and replace if necessary
• Perform a proper bed-in procedure after installation for optimal braking

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The full coating provides additional protection against corrosion, extending rotor life. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Always consult product documentation or manufacturer resources for warranty terms.
