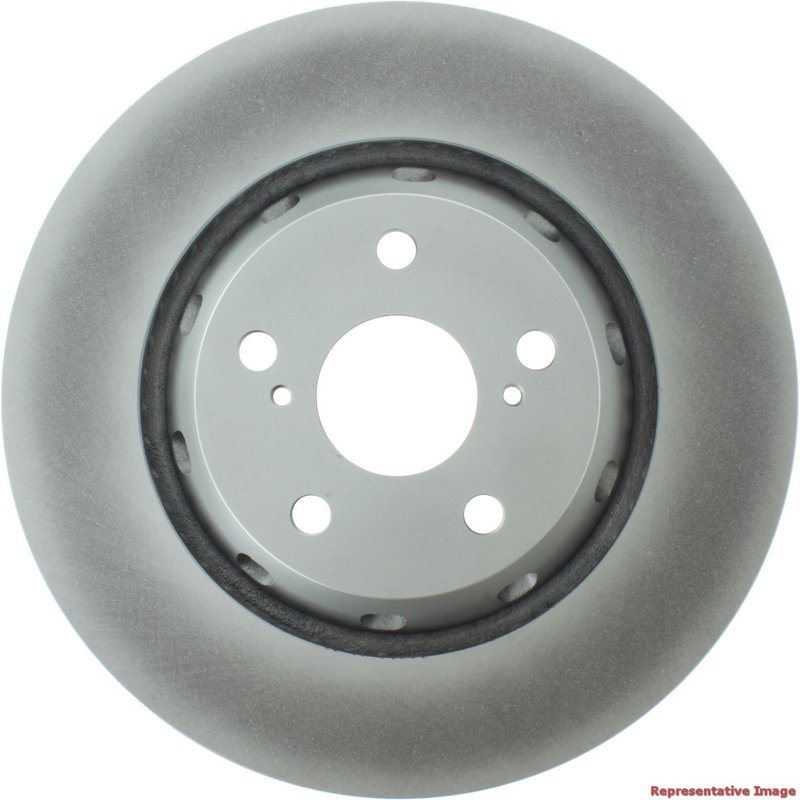

Centric 320.44168F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotor

The Centric GCX Elemental Protection Disc Brake Rotor - Full Coating (part number 320.44168F) is engineered for Toyota Venza models requiring reliable braking performance. This vented disc brake rotor features a fully coated surface and hat finish to resist corrosion and extend service life.

• Compatible with Toyota Venza vehicles
• Part Number: 320.44168F
• Fully coated disc and hat finish for corrosion resistance
• Vented rotor design with straight vane style for heat dissipation
• Floating disc mounting with 5 lug holes (14.6 mm diameter)
• Outside diameter: 324.3 mm (12.768 inches)
• Nominal thickness: 28.0 mm (1.102 inches); discard thickness: 26.0 mm (1.024 inches)
• Overall height: 49.5 mm (1.949 inches)
• Smooth surface type without ABS tone ring
• Weight approximately 9.36 kg (20.6 lbs)

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on enhanced corrosion resistance through a full coating process applied to both the disc surface and the rotor hat. This protective layer helps maintain rotor integrity in harsh environments, reducing the risk of rust and extending rotor lifespan. The vented design with straight vanes improves heat dissipation, which is critical for maintaining consistent braking performance under demanding conditions.

Technical Specifications and Features

This disc brake rotor is designed with a vented hat and floating disc mounting to optimize thermal management and reduce warping. The rotor's nominal thickness of 28.0 mm ensures durability, while the discard thickness of 26.0 mm indicates the minimum safe thickness before replacement is necessary. The smooth surface finish supports even pad contact and braking efficiency. The rotor includes five lug holes with a diameter of 14.6 mm and a mounting bolt hole circle diameter of 114.3 mm, matching Toyota Venza specifications.

Applications and Problem Solving

• Replacement for worn or warped rotors on Toyota Venza models
• Addresses rotor corrosion issues with full coating protection
• Improves heat dissipation to reduce brake fade during extended use
• Restores smooth braking performance by replacing damaged or uneven rotors
• Compatible with vehicles requiring vented, floating disc brake rotors

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 26.0 mm before installation. The rotor is designed for floating disc mounting and requires proper alignment with the 5 lug holes and mounting bolt circle diameter of 114.3 mm. No ABS tone ring or bearings are included, so verify compatibility with your vehicle’s existing components. Clean the rotor surface before installation to remove any protective coatings or residues.

Quality Assurance and Warranty

Centric brake rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The full coating process provides additional corrosion resistance to extend rotor life. While specific warranty details are not provided here, Centric products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
