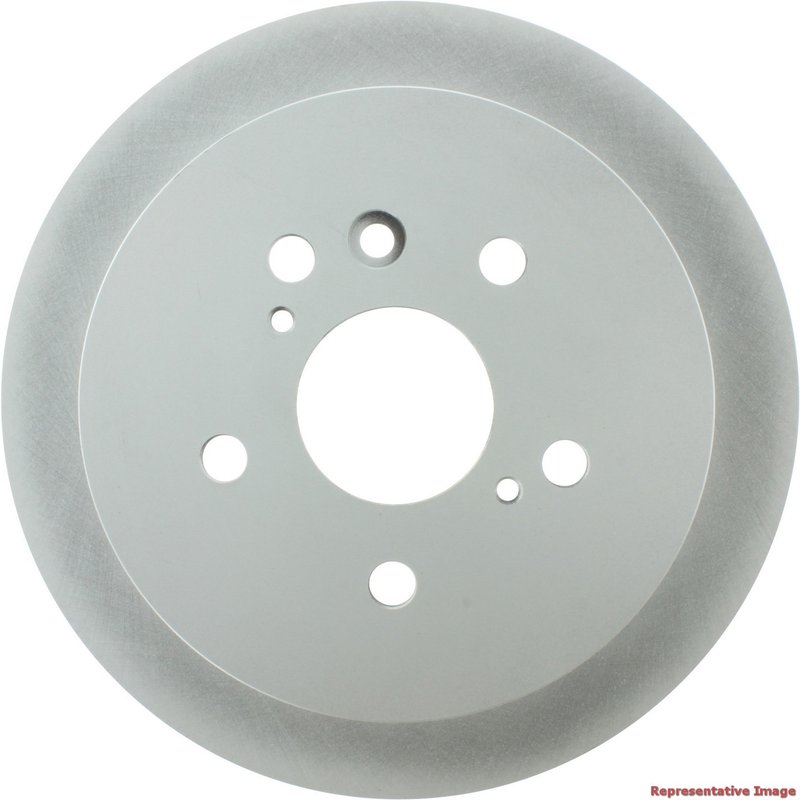

Centric 320.44169F Disc Brake Rotor - Rear

Rear Brake Rotor for Toyota Venza

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, part number 320.44169F, is a rear disc brake rotor for 2009-2016 Toyota Venza applications. It combines a fully coated disc finish with a coated hat finish to help protect exposed metal surfaces while maintaining a smooth braking surface.

Key Features

• Fits 2009-2016 Toyota Venza, rear
• Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
• Part number 320.44169F
• Fully coated disc finish with coated hat finish
• Smooth surface type for consistent pad contact
• Solid rotor design
• Outside diameter: 11.732 in. / 298.000 mm
• Nominal thickness: 0.394 in. / 10.000 mm
• Discard thickness: 0.354 in. / 9.000 mm
• 5-lug pattern with 4.500 in. bolt circle diameter

Product Details

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line is built around corrosion protection and service-ready rotor geometry. For Toyota Venza rear brake service, part number 320.44169F uses a fully coated disc and coated hat to help resist surface rust on exposed areas, while the smooth braking face supports even pad interaction. The rotor measures 11.732 inches in outside diameter, 2.748 inches in overall height, and uses a solid construction with a 5-lug, 4.500-inch bolt circle. This part number 320.44169F is a direct fit for rear brake rotor replacement on the Toyota Venza across the listed model years.

Common Reasons to Replace

• Brake pulsation from rotor wear or thickness variation
• Surface rust on the braking rotor or hat area
• Reduced braking consistency from worn disc surfaces
• Noise caused by uneven rotor finish or wear
• Service replacement for rear brake maintenance on a Toyota Venza

Installation Notes

Verify rear axle fitment before installation and compare the rotor dimensions, center hole diameter, and bolt pattern to the original part. Clean the hub mounting surface before installing the new rotor to help prevent runout issues. After installation, follow the vehicle manufacturer’s brake bedding procedure for proper pad and rotor seating.

Quality Assurance

Centric manufactures the GCX Elemental Protection Disc Brake Rotors line with coated surfaces for corrosion resistance and consistent service performance. This rotor is identified by part number 320.44169F and is specified for rear use on the Toyota Venza in the listed model years.
