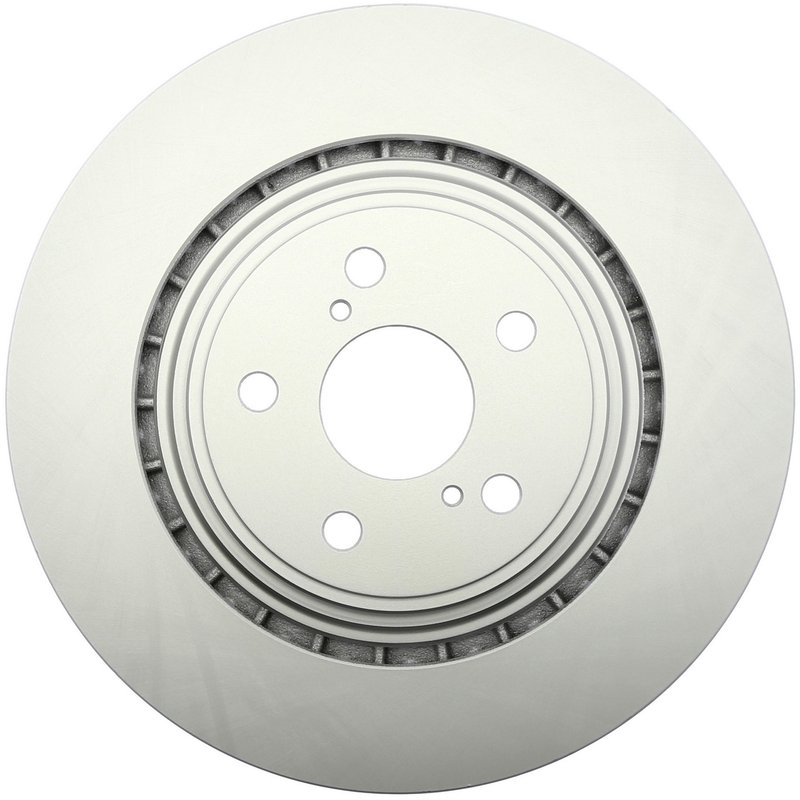

Centric 320.44215F Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Lexus and Toyota Vehicles

The Centric GCX Elemental Protection Disc Brake Rotor - Full Coating (Part Number 320.44215F) is engineered to provide consistent braking performance for Lexus and Toyota models. Designed specifically for the Highlander, RX350, and RX350h, this rotor offers durability and corrosion resistance through its full coating finish.

• Fully coated disc and hat for enhanced corrosion protection
• Vented rotor design with 50 straight vanes for improved heat dissipation
• Nominal thickness of 1.102 inches (28.000 mm) with discard thickness at 0.984 inches (25.000 mm)
• Outside diameter of 13.386 inches (340.000 mm) for precise fitment
• Floating disc mounting and smooth surface finish for reliable braking
• Five lug holes with a 4.500 inch (114.300 mm) bolt circle diameter
• Hat inner diameter of 6.358 inches (161.500 mm) and overall height of 1.937 inches (49.200 mm)
• Weight approximately 21.6 lbs (9.82 kgs)

About the Centric GCX Elemental Protection Disc Brake Rotors - Full Coating Line

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a complete protective coating on both the disc and hat surfaces. This full coating helps prevent rust and corrosion, extending the rotor's service life and maintaining consistent braking performance. The rotors in this line are designed to meet or exceed OEM specifications, making them suitable replacements for factory-installed components on compatible Lexus and Toyota vehicles.

Product Details and Specifications

This disc brake rotor features a vented design with 50 straight vanes, which enhances airflow and heat dissipation during braking. The smooth surface finish ensures optimal contact with brake pads, reducing noise and vibration. The rotor's floating disc mounting system allows for slight movement to accommodate thermal expansion, improving overall braking stability. With a nominal thickness of 1.102 inches and a discard thickness of 0.984 inches, this rotor maintains safety standards throughout its usable life. The five lug holes and 4.500 inch bolt circle diameter ensure proper fitment on Lexus Highlander, RX350, and RX350h models.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing corrosion and rust buildup on original rotors
• Improving heat dissipation to reduce brake fade during extended use
• Restoring smooth braking performance and reducing noise
• Ensuring proper rotor thickness for safe braking operation

Installation Notes and Tips

When installing the Centric GCX Elemental Protection Disc Brake Rotor (320.44215F), ensure the rotor surface is clean and free of any contaminants. Verify the rotor thickness before installation to confirm it meets minimum specifications. Use proper torque settings on lug nuts to avoid rotor warping. This rotor does not include bearings or ABS tone rings, so reuse existing components if applicable. Proper bedding-in of brake pads after installation is recommended for optimal performance.

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. The full coating on both the disc and hat surfaces provides enhanced corrosion resistance. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Refer to Centric's official documentation for complete warranty information.
