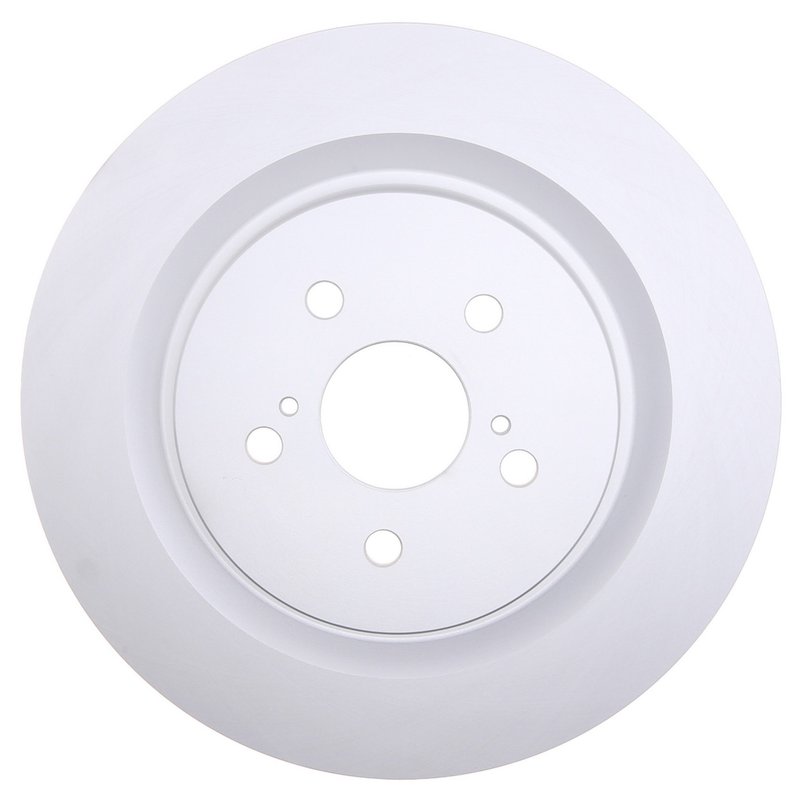

Centric 320.44216F Disc Brake Rotor - Rear

Reliable Disc Brake Rotor for Lexus and Toyota Vehicles

The Centric GCX Elemental Protection Disc Brake Rotor - Full Coating (Part Number 320.44216F) is engineered to provide consistent braking performance for select Lexus and Toyota models. Designed with a fully coated surface and vented rotor construction, this part ensures durability and corrosion resistance for your vehicle's braking system.

• Fully coated disc and hat finish for enhanced corrosion protection
• Vented rotor design with 52 straight vanes for efficient heat dissipation
• Nominal thickness of 0.709 inches (18.000 mm) with discard thickness at 0.650 inches (16.500 mm)
• Outside diameter of 13.313 inches (338.150 mm) suitable for specified fitments
• Floating disc mounting and smooth surface type for reliable braking
• Compatible with 5 lug/stud holes, 0.565 inch (14.360 mm) diameter

About the Centric GCX Elemental Protection Disc Brake Rotors - Full Coating Line

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a complete protective coating on both the disc and hat surfaces. This full coating helps prevent rust and corrosion, extending the rotor's service life and maintaining consistent braking performance. The vented design with straight vanes improves heat management, reducing the risk of brake fade during extended use. This product line is tailored for drivers seeking reliable, long-lasting rotors for their Lexus Highlander, RX350, RX350h, RX450h+, and RX500h models.

Technical Specifications and Features

This disc brake rotor features a nominal thickness of 0.709 inches (18.000 mm) and a discard thickness of 0.650 inches (16.500 mm), ensuring it meets OEM standards for safe operation. The rotor's overall height measures 1.555 inches (39.500 mm), with a center hole diameter of 2.441 inches (62.000 mm) and a mounting bolt hole circle diameter of 4.500 inches (114.300 mm). The rotor weighs approximately 15.6 lbs (7.06 kgs), balancing durability and performance. The smooth surface finish and floating disc mounting contribute to consistent pad contact and braking efficiency.

Compatible Vehicles and Applications

• Designed specifically for Lexus Highlander models
• Compatible with Toyota Highlander and RX series including RX350, RX350h, RX450h+, and RX500h
• Ideal replacement rotor for vehicles requiring part number 320.44216F
• Suitable for drivers needing corrosion-resistant, vented rotors for daily driving and light towing

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Verify compatibility with vehicle make, model, and year prior to purchase
• Use proper torque specifications for mounting bolts to avoid rotor warping
• Inspect brake pads and hardware during rotor replacement for optimal performance

Quality Assurance and Warranty

Centric brake rotors are manufactured to meet or exceed OEM specifications, providing reliable braking performance and durability. The full coating process protects against rust and corrosion, contributing to longer rotor life. While specific warranty details are not provided here, Centric products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or manufacturer resources for exact warranty terms.
