Home› Brake > Drums and Rotors› Centric 320.45046F Disc Brake Rotor - Rear
Centric 320.45046F Disc Brake Rotor - RearOE Quality 60-Day Returns

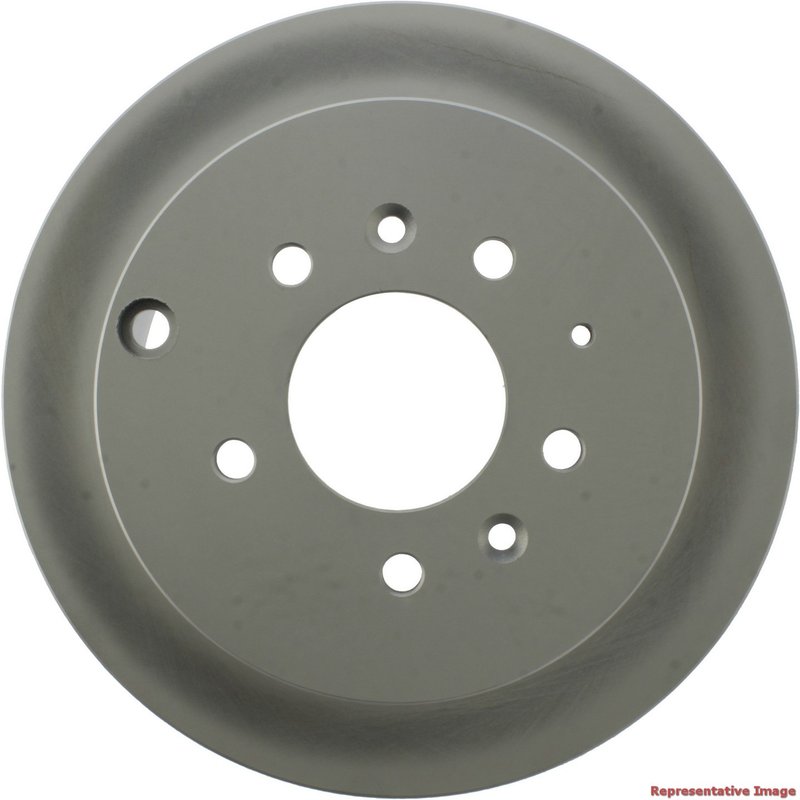

Centric 320.45046F Disc Brake Rotor - Rear - view 1
Centric 320.45046F Disc Brake Rotor - Rear - view 2
Centric 320.45046F Disc Brake Rotor - Rear - view 3
Centric 320.45046F Disc Brake Rotor - Rear - view 4
Centric 320.45046F Disc Brake Rotor - Rear - view 5
Part #: 320.45046F

Centric 320.45046F Disc Brake Rotor - Rear

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Rear
⚙️ 13 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$38.29Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Rear
🚗Fitment: Mazda, 929 and MPV
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Disc Brake Rotor options
Centric 320.45046F Disc Brake Rotor - Rear
BrandCentric
Part Number320.45046F
PositionCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, Rear
Discard Thickness0.630
Discard Thickness16.000
Nominal Thickness0.709
Nominal Thickness18.000
Disc FinishFully coated
Hat FinishCoated
Overall Height2.248
Overall Height57.100
Outside Diameter11.248
Outside Diameter285.700
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorVented
Nominal Drum Diameter190.000
Nominal Drum Diameter7.480
Bearings IncludedNo
Center Hole Diameter2.835
Center Hole Diameter72.000
Mounting Bolt Hole Circle Diameter114.300
Mounting Bolt Hole Circle Diameter4.500
Stud/Lug Hole Quantity5
Stud/Lug Hole Diameter0.512
Stud/Lug Hole Diameter13.000
Disc Mounting [cntrc]Floating / dih
Max PB Drum Dia [cntrc] in7.520
Max PB Drum Dia [cntrc] mm191.000
Misc Holes [cntrc]1
Vane Style [cntrc]Straight
Weight [cntrc] kgs5.910
Weight [cntrc] lbs13.000

This part fits 13 vehicles. Search below:

YearMakeModelPositionNotes
2006MazdaMPVRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2005MazdaMPVRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2004MazdaMPVRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
1998MazdaMPVRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
1997MazdaMPVRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
1996MazdaMPVRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
1995Mazda929RearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
1995MazdaMPVRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
1994Mazda929RearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
1994MazdaMPVRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
1993Mazda929RearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
1993MazdaMPVRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
1992Mazda929RearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
