Home› Brake > Drums and Rotors› Centric 320.45071F Disc Brake Rotor - Front
Centric 320.45071F Disc Brake Rotor - FrontOE Quality 60-Day Returns
Part #: 320.45071F

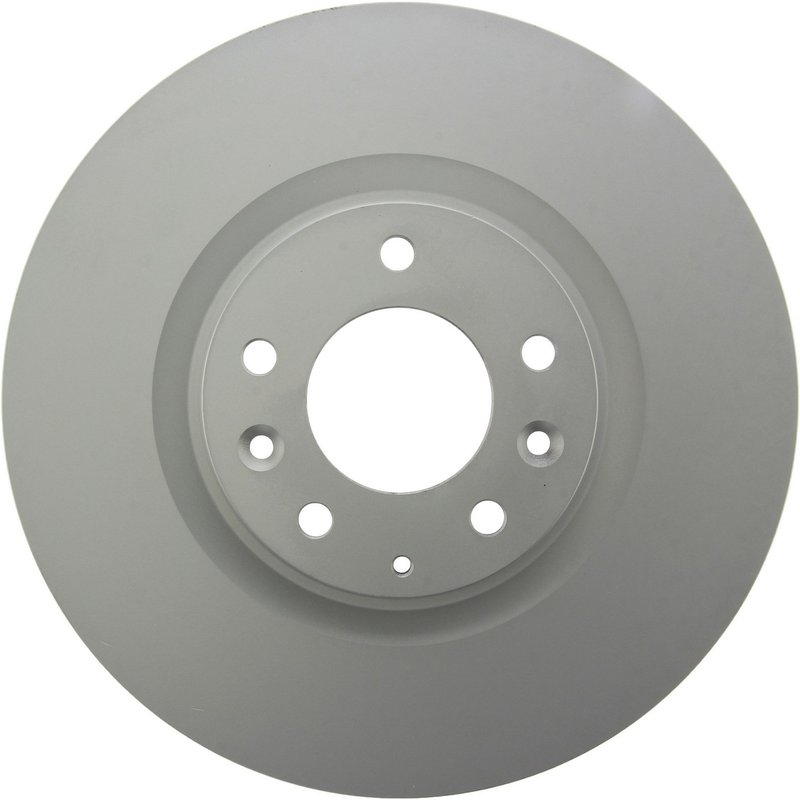

Centric 320.45071F Disc Brake Rotor - Front

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
10 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$58.16Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
Fitment: Mazda, RX-8
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Disc Brake Rotor options
Centric 320.45071F Disc Brake Rotor - Front
BrandCentric
Part Number320.45071F
PositionCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
Discard Thickness0.866
Discard Thickness22.000
Nominal Thickness0.945
Nominal Thickness24.000
Disc FinishFully coated
Hat FinishCoated
Overall Height1.768
Overall Height44.900
Outside Diameter12.717
Outside Diameter323.000
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorVented
Bearings IncludedNo
Center Hole Diameter2.827
Center Hole Diameter71.800
Mounting Bolt Hole Circle Diameter114.300
Mounting Bolt Hole Circle Diameter4.500
Stud/Lug Hole Quantity5
Stud/Lug Hole Diameter0.508
Stud/Lug Hole Diameter12.900
Disc Mounting [cntrc]Floating
Misc Holes [cntrc]3
Vane Style [cntrc]Straight
Weight [cntrc] kgs8.180
Weight [cntrc] lbs18.000

This part fits 10 vehicles. Search below:

YearMakeModelTransmissionPositionNotes
2011MazdaRX-8FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2010MazdaRX-8FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2009MazdaRX-8FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2008MazdaRX-8FrontSport Susp; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2007MazdaRX-8FrontSport Susp; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2006MazdaRX-8FrontSport Susp; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2005MazdaRX-8ManualFront323mm Front Disc; Sport Susppension; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2005MazdaRX-8AutomaticFront323mm Front Disc; Sport Susppension; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2004MazdaRX-8ManualFront323mm Front Disc; Sport Susppension; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2004MazdaRX-8AutomaticFront323mm Front Disc; Sport Susppension; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
