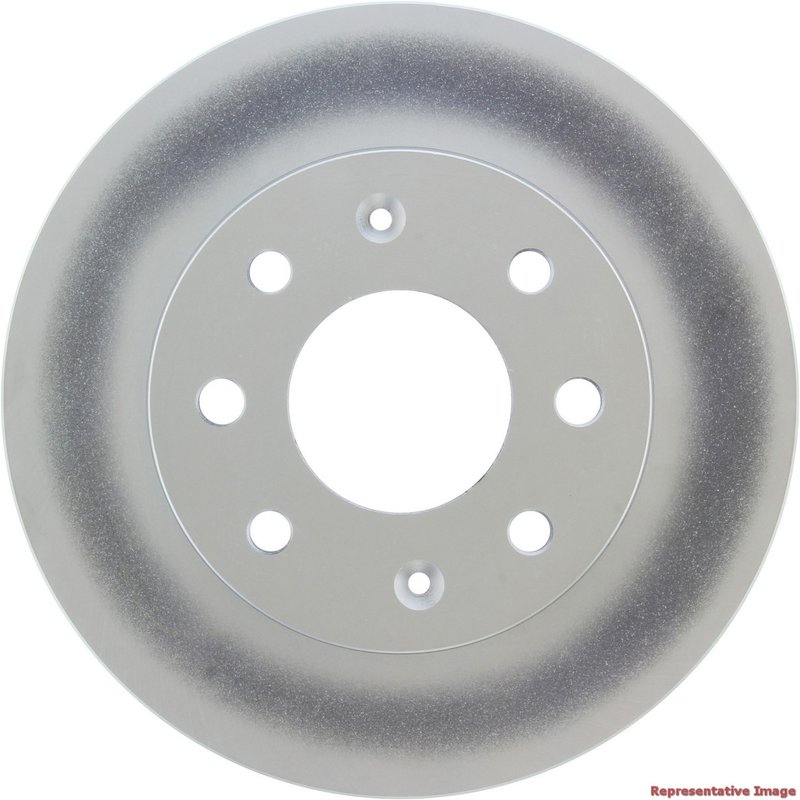

Centric 320.46039F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance for select Dodge, Hyundai, and Mitsubishi vehicles. Designed with a fully coated disc and hat finish, these rotors offer enhanced corrosion resistance and durability for long-term use.

• Part Number: 320.46039F
• Fully coated disc and hat finish for corrosion protection
• Vented rotor design with straight vane style for improved heat dissipation
• Nominal thickness of 0.965 inches (24.5 mm) and discard thickness of 0.882 inches (22.4 mm)
• Outside diameter of 10.118 inches (257 mm) and overall height of 1.799 inches (45.7 mm)
• Floating disc mounting and smooth surface finish
• Compatible with Dodge, Hyundai, and Mitsubishi models including Colt, Elantra, Expo, Galant, Lancer, Sigma, Sonata, Space Star, and Tiburon

Product Line Details

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a complete protective coating to resist rust and corrosion. This full coating extends the rotor’s service life and maintains consistent braking performance, especially in environments prone to moisture and road salt. The rotors in this line feature vented designs with straight vanes to optimize cooling and reduce brake fade during operation.

Technical Specifications and Features

This disc brake rotor features a vented design with straight vanes that promote efficient heat dissipation, helping to maintain optimal braking performance under demanding conditions. The rotor’s nominal thickness is 0.965 inches (24.5 mm), with a discard thickness of 0.882 inches (22.4 mm), ensuring safe replacement intervals. The rotor has a smooth surface finish and a floating disc mounting style, which helps reduce stress and improve rotor longevity. The outside diameter measures 10.118 inches (257 mm), and the overall height is 1.799 inches (45.7 mm). The hat and disc are fully coated to protect against corrosion, extending the rotor’s usable life.

Compatible Vehicles and Applications

• Designed for Dodge models such as the Colt
• Compatible with Hyundai vehicles including Elantra, Sonata, and Tiburon
• Fits Mitsubishi models like Expo, Expo LRV, Galant, Lancer, Sigma, and Space Star

This rotor is ideal for replacing worn or damaged disc brake rotors on these vehicles, restoring braking efficiency and safety.

Common Issues Addressed by This Rotor

• Brake rotor corrosion and rust buildup
• Uneven rotor wear causing brake pulsation
• Reduced braking performance due to heat fade
• Warped or damaged rotors leading to noise and vibration
• Rotors below minimum thickness affecting safety

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 0.882 inches (22.4 mm) before installation. Clean the hub surface thoroughly to prevent uneven mounting. Use proper torque specifications on the 4 mounting lug holes (0.5 inch diameter) to avoid rotor warping. Since this rotor does not include bearings or an ABS tone ring, verify compatibility with your vehicle’s braking system. The floating disc mounting design requires careful alignment during installation to maintain proper rotor function.

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The full coating on both the disc and hat provides enhanced corrosion resistance. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
