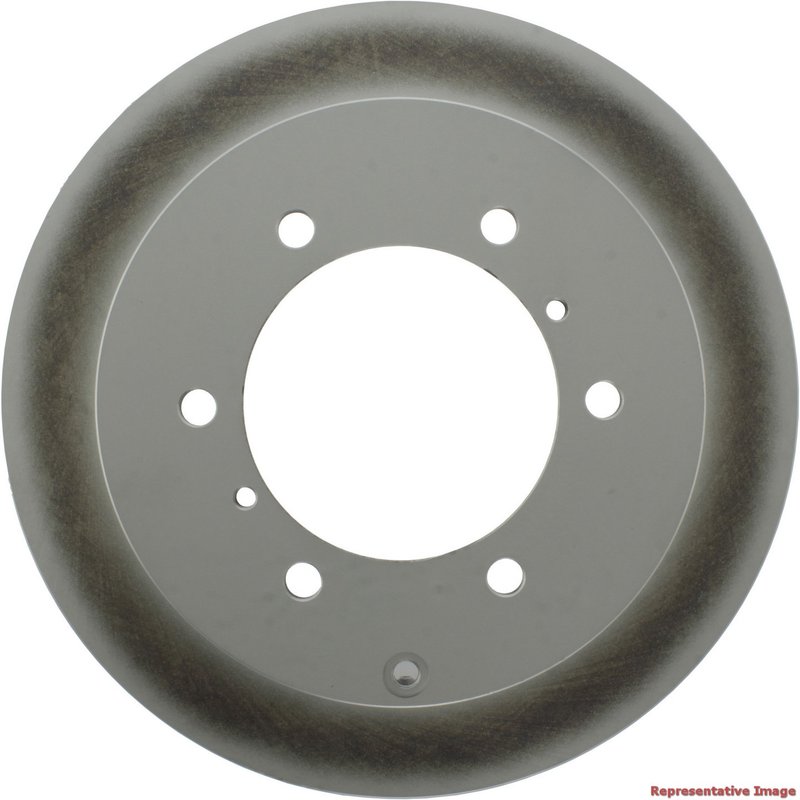

Centric 320.46041F Disc Brake Rotor - Rear

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotor 320.46041F is engineered for reliable braking performance on Mitsubishi Montero and Montero Sport models. Featuring a fully coated disc and hat finish, this rotor offers enhanced corrosion resistance and durability for demanding driving conditions.

• Fully coated disc and hat finish for corrosion protection
• Solid rotor design with smooth surface type
• Nominal thickness of 0.709 inches (18.000 mm) with discard thickness at 0.646 inches (16.400 mm)
• Outside diameter of 12.402 inches (315.000 mm)
• Overall height of 3.315 inches (84.200 mm)
• Center hole diameter of 4.252 inches (108.000 mm)
• Six stud/lug holes with 0.492 inch (12.500 mm) diameter
• Compatible with Mitsubishi Montero and Montero Sport

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line is designed to provide extended rotor life through a comprehensive coating process. This full coating covers both the braking surface and the rotor hat, reducing the risk of rust and corrosion. This product line is ideal for vehicles like the Mitsubishi Montero and Montero Sport that require dependable braking components capable of withstanding environmental exposure.

Technical Specifications and Features

This solid disc brake rotor features a smooth surface type optimized for consistent pad contact and braking efficiency. The nominal thickness measures 0.709 inches (18.000 mm), with a discard thickness of 0.646 inches (16.400 mm), ensuring clear service limits for maintenance. The rotor’s outside diameter is 12.402 inches (315.000 mm), and it has an overall height of 3.315 inches (84.200 mm). The rotor includes six stud/lug holes with a diameter of 0.492 inches (12.500 mm) and a mounting bolt hole circle diameter of 5.500 inches (139.700 mm). The center hole diameter is 4.252 inches (108.000 mm), designed for precise fitment on compatible Mitsubishi models.

Applications and Problem Solving

• Replacement for worn or warped rotors on Mitsubishi Montero and Montero Sport
• Addresses rotor corrosion and rust issues with full coating protection
• Improves braking consistency by maintaining smooth rotor surface
• Prevents premature rotor failure due to environmental exposure
• Compatible with vehicles requiring solid disc brake rotors without ABS tone ring

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Verify compatibility with vehicle’s stud/lug hole pattern and center hole diameter
• Use proper torque specifications for mounting bolts to avoid rotor warping
• Inspect brake pads and calipers during rotor replacement for optimal performance
• Clean rotor surface before installation to remove any protective coatings or contaminants

Quality Assurance and Warranty

Centric brake rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The full coating process enhances corrosion resistance, contributing to longer service life. While specific warranty details for part number 320.46041F are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always consult product documentation or manufacturer resources for exact warranty terms.
