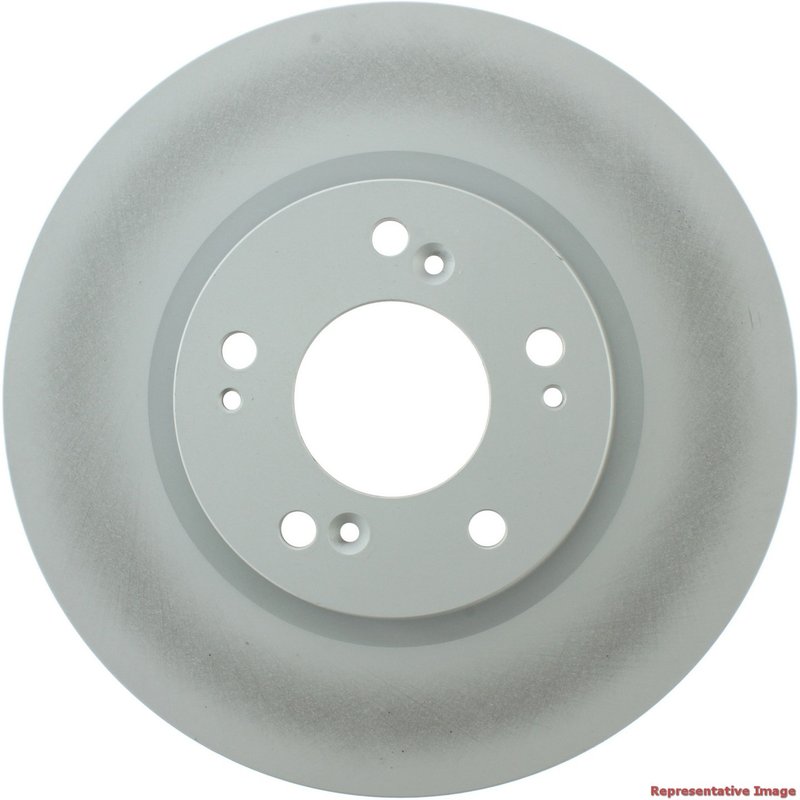

Centric 320.46068F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor Overview

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.46068F, is a front vented rotor built for select Mitsubishi applications. It is fully coated for added corrosion resistance and features a smooth braking surface for consistent pad contact on the Mitsubishi Eclipse and Mitsubishi Galant.

Compatible With 2004-2009 Mitsubishi Galant, front and 2006-2012 Mitsubishi Eclipse, front, this rotor is sized for OE-style fitment and direct replacement service. The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on corrosion protection across the disc and hat surfaces, making it a practical choice for daily-driven vehicles exposed to moisture, road salt, and stop-and-go traffic.

Key Features

• Part number 320.46068F
• Fully coated disc finish with coated hat finish
• Vented rotor design with straight vanes
• Smooth surface type for even pad contact
• 5-lug pattern with 114.3 mm bolt circle diameter
• Outside diameter: 294.0 mm (11.575 in.)
• Nominal thickness: 26.3 mm (1.035 in.)
• Discard thickness: 24.4 mm (0.961 in.)
• Floating disc mounting and 4 miscellaneous holes
• No ABS tone ring included; no bearings included

Product Details

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating are engineered for front brake service where corrosion control and stable braking performance matter. The coated disc and hat help protect exposed metal surfaces, while the vented construction supports heat management during repeated braking. This rotor measures 46.0 mm overall height, 68.7 mm center hole diameter, and 12.3 mm lug hole diameter, with a 7.5 kg (16.5 lb) weight.

For shoppers searching for a front brake rotor for 2006-2012 Mitsubishi Eclipse or a front disc brake rotor for 2004-2009 Mitsubishi Galant, part number 320.46068F provides a direct-fit replacement option. The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line is a fitment-focused solution for drivers who want coated rotor surfaces and OE-style dimensions without changing the vehicle’s brake layout.

What This Rotor Helps Address

• Brake rotor surface rust on exposed metal areas
• Uneven pad contact caused by worn or scored rotors
• Front brake vibration related to rotor wear
• Reduced braking consistency from heat buildup in vented applications
• Replacement needs for Mitsubishi Eclipse and Mitsubishi Galant front brake service

Installation Notes and Tips

Verify rotor dimensions, hub fit, and wheel clearance before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect pads, calipers, and hardware condition before reassembly. Because this rotor is fully coated, avoid aggressive abrasion on coated surfaces during handling and installation. Confirm front-position application and match the vehicle year and model exactly to the listed fitment.

Quality Assurance

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating are built to published dimensional specifications for the listed Mitsubishi applications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
