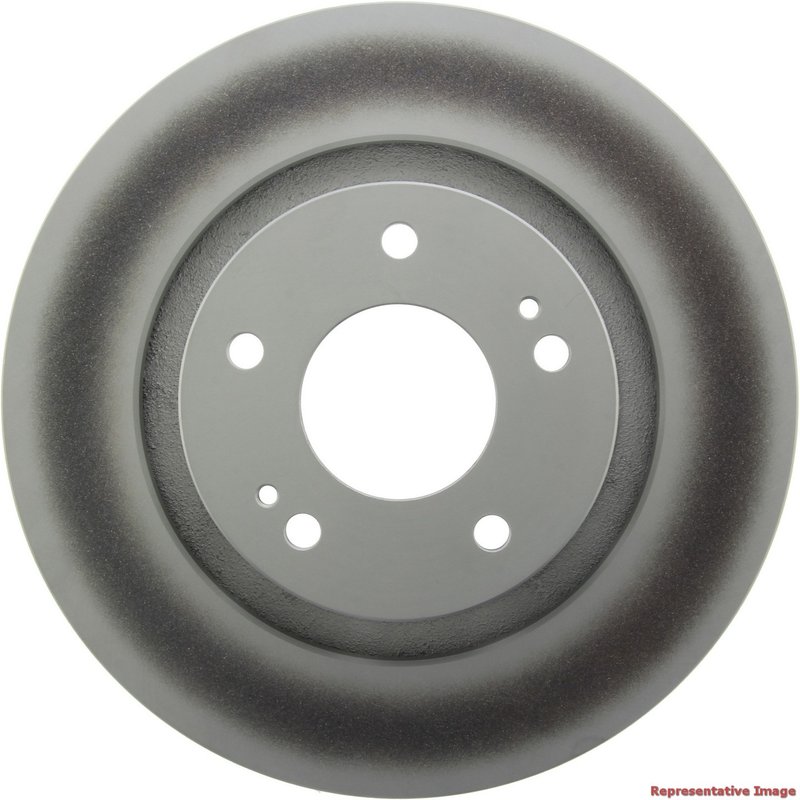

Centric 320.46071F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor Overview

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.46071F, is a front vented rotor built for select Mitsubishi applications. It combines a fully coated disc finish with a coated hat finish to help resist corrosion on exposed surfaces while maintaining a smooth braking surface.

Compatible With 2018-2022 Mitsubishi Outlander PHEV, front; 2009 Mitsubishi Lancer, front; and 2005-2006 Mitsubishi Outlander, front. This rotor is a direct-fit option for drivers searching for a front brake rotor for Mitsubishi Outlander PHEV, Mitsubishi Lancer front rotor replacement, or a Centric 320.46071F rotor for Mitsubishi Outlander applications.

Key Features

• Part number 320.46071F from Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
• Fully coated disc finish with coated hat finish for added surface protection
• Vented rotor design with straight vane style
• Smooth surface type for consistent pad contact
• Outside diameter: 11.575 in. / 294.000 mm
• Nominal thickness: 0.945 in. / 24.000 mm
• Discard thickness: 0.882 in. / 22.400 mm
• 5-lug pattern with 114.300 mm bolt circle and 69.000 mm center hole diameter
• Floating disc mounting and 2 miscellaneous holes

Product Details

The Centric GCX Elemental Protection line focuses on corrosion-resistant rotor construction for everyday braking service. On this rotor, the coated hat and fully coated disc help protect non-friction surfaces, while the smooth braking face and vented internal design support stable heat management during repeated stops. The 320.46071F is sized for front axle use on the listed Mitsubishi Outlander PHEV, Lancer, and Outlander fitments.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Brake Issues This Rotor Addresses

• Front brake rotor rust on exposed surfaces
• Brake pulsation from worn rotor thickness
• Uneven pad contact on a damaged rotor face
• Heat buildup during repeated braking events
• Noise caused by rotor surface wear or corrosion

Installation Notes

Verify rotor dimensions, bolt pattern, center hole diameter, and front position before installation. Clean the hub mounting surface thoroughly to reduce runout concerns, and inspect brake pads and caliper hardware for wear before fitting the new rotor. Always confirm vehicle-specific fitment for the exact model year and trim, especially on the 2009 Mitsubishi Lancer through 03/2009 note.

Quality Assurance

Centric GCX Elemental Protection rotors are engineered with coated surfaces and OE-style dimensions for the listed Mitsubishi applications. Part number 320.46071F is built to match the specified front rotor requirements for 2018-2022 Mitsubishi Outlander PHEV, 2009 Mitsubishi Lancer, and 2005-2006 Mitsubishi Outlander fitments.
