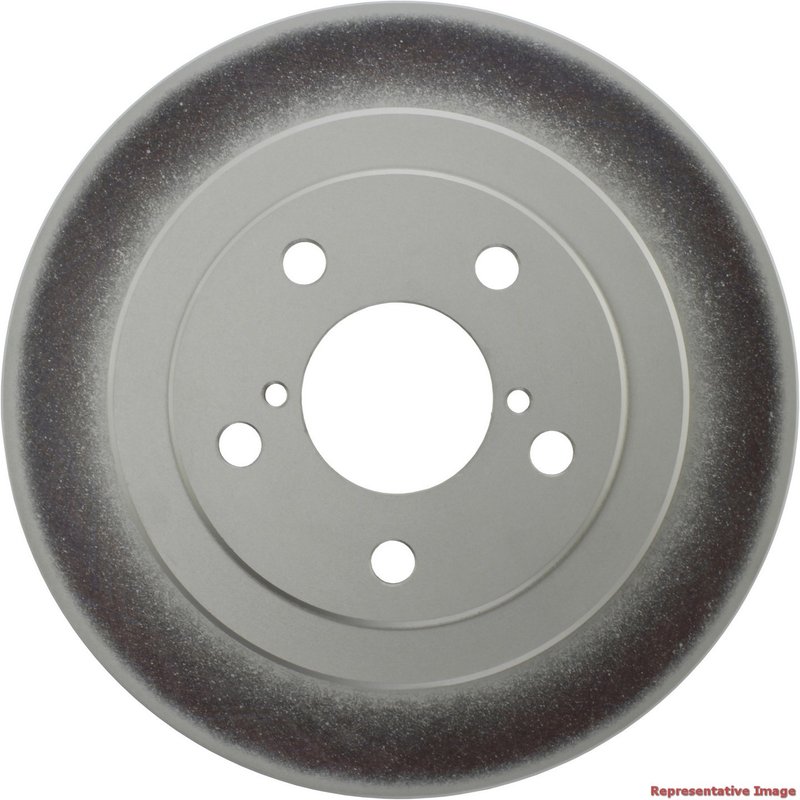

Centric 320.47011F Disc Brake Rotor - Rear

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotor 320.47011F offers reliable braking performance for select Saab and Subaru vehicles. Designed with a full coating, this rotor provides enhanced corrosion resistance and durability for consistent stopping power.

• Full coating on disc and hat for corrosion protection
• Solid disc type with smooth surface finish
• Nominal thickness of 0.394 inches (10.000 mm)
• Outside diameter of 10.453 inches (265.500 mm)
• Fits Saab 9-2X and Subaru Forester, Impreza, Legacy models
• 5 lug holes with 0.504 inch (12.800 mm) diameter
• Center hole diameter of 2.287 inches (58.100 mm)
• Mounting bolt hole circle diameter of 100.000 mm (3.937 inches)
• Weight approximately 10.5 lbs (4.77 kgs)

Detailed Product Description

This Centric GCX Elemental Protection Disc Brake Rotor 320.47011F is engineered as a solid rotor with a smooth surface finish, ensuring consistent contact with brake pads for effective braking. The full coating on both the disc and hat surfaces helps prevent rust and corrosion, extending the rotor's service life. With a nominal thickness of 0.394 inches and a discard thickness of 0.335 inches, this rotor meets OEM specifications for thickness and durability. The rotor's dimensions, including an outside diameter of 10.453 inches and a center hole diameter of 2.287 inches, are designed to fit precisely on compatible Saab and Subaru models, including the 9-2X, Forester, Impreza, and Legacy.

About the Centric GCX Elemental Protection Disc Brake Rotors - Full Coating Line

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating product line focuses on providing rotors with comprehensive corrosion resistance through a full coating process. This coating covers both the braking surface and the rotor hat, offering protection against environmental elements that can cause rust and premature wear. This line is suitable for drivers seeking rotors that maintain structural integrity and appearance over time, especially in regions prone to moisture and road salt exposure.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Saab 9-2X and Subaru Forester, Impreza, Legacy
• Addresses rotor corrosion and rust issues due to environmental exposure
• Improves braking consistency by maintaining smooth rotor surface
• Prevents premature rotor failure caused by surface degradation
• Suitable for vehicles experiencing brake noise or vibration related to rotor wear

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness of 0.335 inches before installation
• Clean mounting surfaces to prevent uneven rotor seating
• Torque lug nuts to manufacturer specifications for proper fitment
• Check compatibility with ABS systems; this rotor does not include an ABS tone ring
• Inspect brake pads and replace if worn to ensure optimal rotor performance

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The full coating process enhances durability and corrosion resistance. While specific warranty details for part number 320.47011F are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Refer to Centric's official documentation for exact warranty terms.
