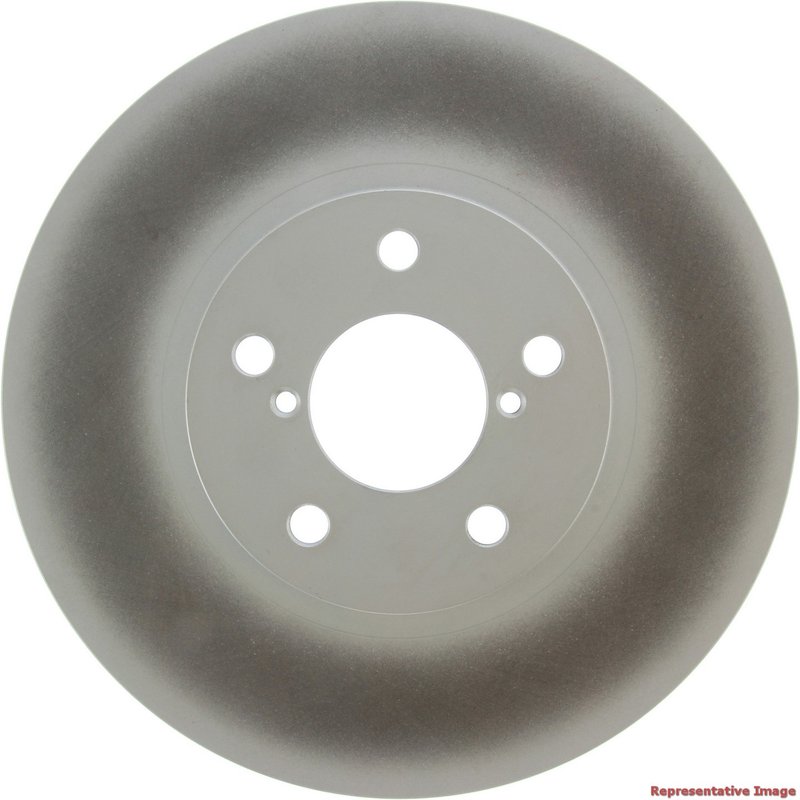

Centric 320.47012F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor Overview

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.47012F, is a front vented rotor built for select Subaru, Scion, and Saab applications. It features a fully coated disc finish and coated hat finish to help protect exposed metal surfaces while maintaining a smooth braking surface.

With a 10.898-inch outside diameter, 0.945-inch nominal thickness, and straight vane construction, this rotor is specified for vehicles that use a 277mm front disc setup. The floating disc mounting design and 5-lug pattern support direct replacement service on listed applications.

Key Features

• Part number 320.47012F
• Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line
• Fully coated disc finish with coated hat finish
• Vented rotor with straight vane style
• Smooth surface type for front brake service
• Outside diameter: 10.898 in. / 276.800 mm
• Nominal thickness: 0.945 in. / 24.000 mm
• Discard thickness: 0.866 in. / 22.000 mm
• Center hole diameter: 2.283 in. / 58.000 mm
• 5 lug holes with 100 mm bolt circle diameter

Product Line Details

Centric GCX Elemental Protection Disc Brake Rotors are part of Centric’s coated rotor lineup, focused on corrosion resistance for daily-driven vehicles. The full coating on the disc and coated hat helps protect the rotor’s exposed surfaces, which is especially relevant for front brake rotor replacement on Subaru Impreza, Subaru Forester, Subaru Legacy, Subaru Outback, Subaru BRZ, Scion FR-S, and Saab 9-2X applications.

Detailed Description

This Centric front brake rotor is engineered for direct-fit service on a wide range of Subaru platforms, including the 1991-2016 Subaru Legacy, 1996-2016 Subaru Impreza, 1998-2002 Subaru Forester, and 2000 Subaru Outback, along with the 2013-2016 Subaru BRZ and Scion FR-S and the 2005 Saab 9-2X. Fitment also includes specific 2002-2004 Subaru Impreza and 2002 Subaru Legacy configurations with 277mm front disc notes. The part number 320.47012F is a practical choice when replacing a worn front disc rotor on these applications.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Rotor Helps Address

• Front brake pulsation caused by rotor wear or thickness variation
• Brake noise related to uneven or damaged rotor surfaces
• Corrosion on exposed rotor and hat surfaces
• Reduced braking consistency from worn front discs
• Service replacement for vehicles with the specified 277mm front disc setup

Installation Notes and Tips

Verify rotor dimensions, bolt pattern, center hole diameter, and vehicle brake configuration before installation. This rotor is for front position applications only and does not include ABS tone ring or bearings. For 2002-2004 Subaru Impreza and 2002 Subaru Legacy listings, confirm the production-date and 277mm front disc notes shown in the fitment data.

• Fits 2013-2016 Scion FR-S, front
• Fits 2013-2016 Subaru BRZ, front
• Fits 2005-2016 Subaru Impreza, front
• Fits 2003 Subaru Impreza, front
• Fits 1998-2001 Subaru Impreza, front
• Fits 2005 Saab 9-2X, front
• Fits 1996-2005 Subaru Legacy, front
• Fits 1991-1994 Subaru Legacy, front
• Fits 2004 Subaru Impreza, front; front disc brake caliper for production dates starting from October 2002
• Fits 2003 Subaru Impreza, front; Fr 10/02 - To 12/02
• Fits 1998-2002 Subaru Forester, front
• Fits 2002 Subaru Impreza, front; fits vehicles up to September 2002
• Fits 2002 Subaru Legacy, front; 277mm front disc
• Fits 2000 Subaru Outback, front

Quality Assurance

Centric’s GCX Elemental Protection rotor line is built around coated-surface corrosion protection and application-specific fitment data for listed Subaru, Scion, and Saab front brake applications. Part number 320.47012F follows the published dimensional and fitment specifications shown above.
