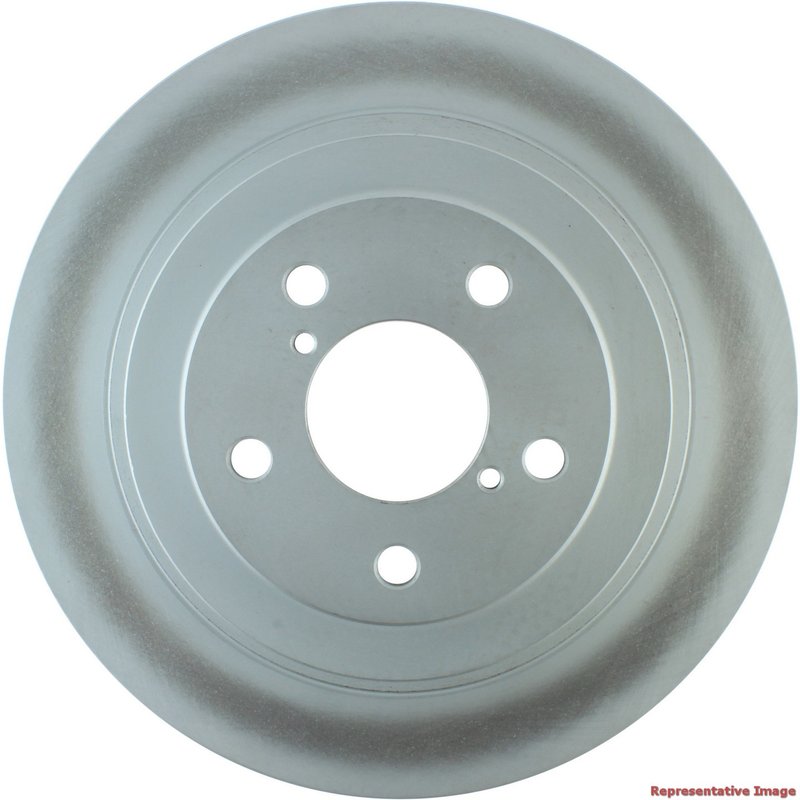

Centric 320.47017F Disc Brake Rotor - Rear

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotor 320.47017F offers reliable braking performance for Subaru vehicles. Designed specifically for Subaru Baja, Legacy, and Outback models, this fully coated solid rotor provides corrosion resistance and consistent stopping power.

• Fully coated disc and hat finish for enhanced corrosion protection
• Solid rotor design with smooth surface type for even pad contact
• Nominal thickness of 0.394 inches (10.000 mm) with discard thickness at 0.335 inches (8.500 mm)
• Outside diameter of 11.406 inches (289.700 mm) suitable for specified Subaru models
• Five stud/lug holes with a diameter of 0.508 inches (12.900 mm)
• Center hole diameter of 2.283 inches (58.000 mm) and mounting bolt hole circle diameter of 100.000 mm (3.937 inches)
• Weight approximately 11 lbs (5 kgs) for balanced handling

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a complete protective coating on both the disc and hat surfaces. This coating helps reduce rust and corrosion, extending rotor life and maintaining consistent braking performance. The full coating is particularly beneficial for vehicles exposed to harsh weather or road conditions, such as the Subaru Baja, Legacy, and Outback models this rotor fits.

Technical Description and Specifications

This disc brake rotor features a solid design with a smooth surface type, ensuring uniform pad wear and reliable braking response. The nominal thickness of 0.394 inches (10.000 mm) and discard thickness of 0.335 inches (8.500 mm) provide clear service limits for maintenance. The rotor’s outside diameter measures 11.406 inches (289.700 mm), matching the OEM specifications for the compatible Subaru models. The rotor includes five lug holes with a diameter of 0.508 inches (12.900 mm) and a mounting bolt hole circle diameter of 100.000 mm (3.937 inches), ensuring proper fitment and secure installation. The hat finish is coated to resist corrosion, complementing the fully coated disc surface.

Compatible Vehicles and Common Applications

• Subaru Baja brake system maintenance or replacement
• Subaru Legacy brake rotor replacement for wear or damage
• Subaru Outback rotor upgrade or service
• Addressing rotor corrosion or surface rust issues
• Resolving uneven brake pad wear or noise caused by rotor surface defects

Installation Notes and Tips

When installing the Centric GCX Elemental Protection Disc Brake Rotor 320.47017F, ensure the rotor surface is clean and free of any protective oils before mounting. Verify the rotor thickness is within the nominal range and above discard thickness limits. Use proper torque specifications for the five lug nuts to avoid warping. This rotor does not include bearings or an ABS tone ring, so confirm compatibility with your vehicle’s brake system components. Proper bedding-in of brake pads after installation is recommended for optimal performance.

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The full coating process enhances durability against corrosion, contributing to longer service life. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
