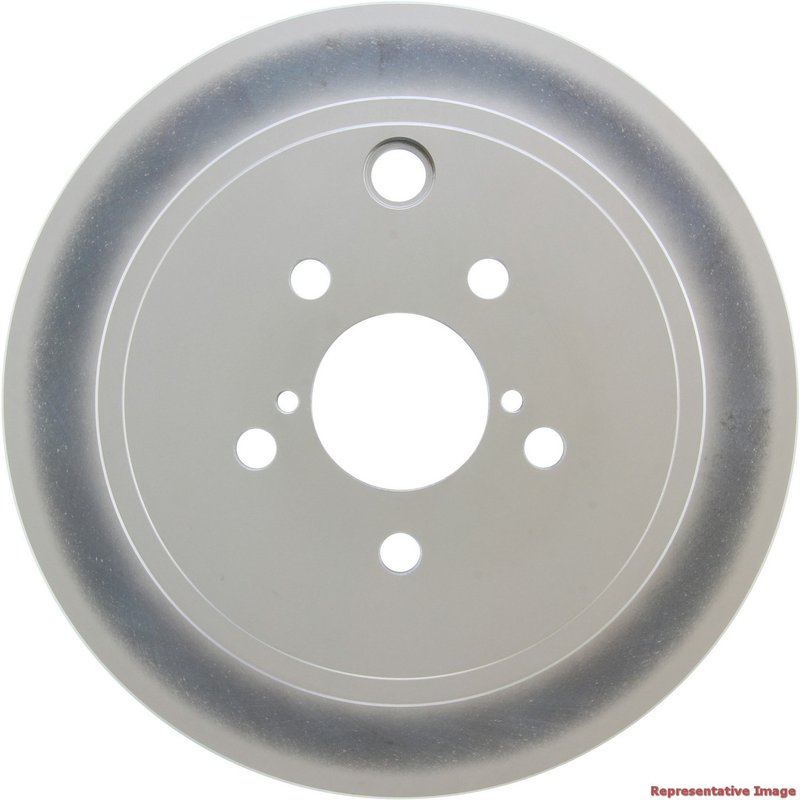

Centric 320.47029F Disc Brake Rotor - Rear

Centric GCX Rear Brake Rotor for Subaru and Scion

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.47029F, is a rear solid rotor built for specific Subaru and Scion applications. It features a fully coated disc finish and coated hat finish to help resist corrosion while maintaining a smooth braking surface.

Compatible With 2008-2014 Subaru Impreza rear, 2010-2014 Subaru Legacy rear, 2010-2014 Subaru Outback rear, 2012-2014 Subaru WRX rear, 2009-2013 Subaru Forester rear, and 2013-2016 Scion FR-S rear. It is also compatible with 2013-2016 Subaru BRZ rear.

Key Features

• Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line
• Part number 320.47029F
• Fully coated disc finish with coated hat finish
• Solid rear rotor design with smooth surface type
• Outside diameter: 285.700 mm (11.248 in)
• Nominal thickness: 10.000 mm (0.394 in)
• Discard thickness: 8.500 mm (0.335 in)
• 5-lug pattern with 100.000 mm bolt circle diameter
• Center hole diameter: 58.000 mm
• Overall height: 63.600 mm (2.504 in)

Product Details

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line is built for drivers who need a rear disc brake rotor with corrosion-resistant coating coverage on both the disc and hat. For Subaru BRZ, Subaru WRX, Subaru Forester, Subaru Impreza, Subaru Legacy, Subaru Outback, and Scion FR-S rear brake service, this rotor matches the listed dimensions and mounting layout for the confirmed applications. The 320.47029F rotor uses a solid construction, smooth braking surface, and floating/DIH disc mounting specification.

Common Brake Issues This Rotor Can Address

• Rear rotor rust and surface corrosion
• Brake pulsation caused by worn rotor thickness
• Uneven braking feel from rotor wear
• Noise related to rotor surface condition
• Replacement needs for rear disc brake service on listed Subaru and Scion models

Installation Notes and Tips

Verify rear fitment by year, make, model, and brake configuration before installation. Confirm the rotor dimensions, 5-lug bolt circle, and center hole diameter against the vehicle hub and rear brake setup. Clean the hub mounting surface before installing the rotor to help reduce runout concerns and ensure proper seating.

For fitment-specific searches, this part number 320.47029F is a direct rear rotor option for Subaru BRZ rear brake replacement and Subaru WRX rear brake service, as well as Scion FR-S rear brake maintenance.

Quality Assurance

Centric’s GCX Elemental Protection line focuses on coated rotor construction for improved resistance to environmental exposure. The listed dimensions, coating details, and application data provide the basis for fitment verification on the confirmed Subaru and Scion rear brake applications.
