Home› Brake > Drums and Rotors› Centric 320.48008F Disc Brake Rotor - Front
Centric 320.48008F Disc Brake Rotor - FrontOE Quality 60-Day Returns

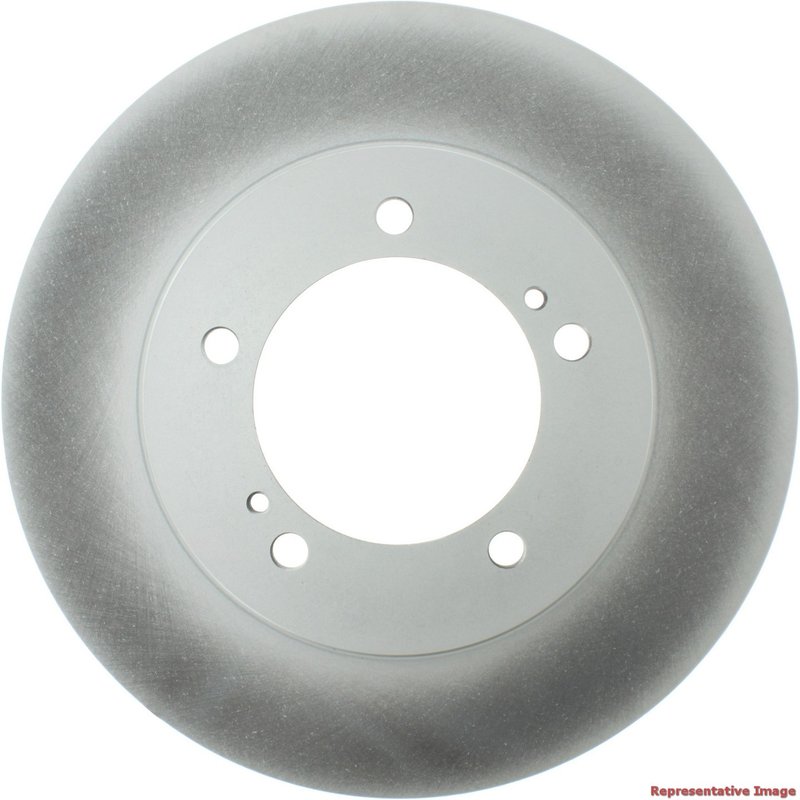

Centric 320.48008F Disc Brake Rotor - Front - view 1
Centric 320.48008F Disc Brake Rotor - Front - view 2
Centric 320.48008F Disc Brake Rotor - Front - view 3
Centric 320.48008F Disc Brake Rotor - Front - view 4
Centric 320.48008F Disc Brake Rotor - Front - view 5
Part #: 320.48008F

Centric 320.48008F Disc Brake Rotor - Front

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
⚙️ 12 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$26.83Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
🚗Fitment: Suzuki, Grand Vitara and XL-7
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Disc Brake Rotor options
Centric 320.48008F Disc Brake Rotor - Front
BrandCentric
Part Number320.48008F
PositionCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
Discard Thickness0.787
Discard Thickness20.000
Nominal Thickness0.866
Nominal Thickness22.000
Disc FinishFully coated
Hat FinishCoated
Overall Height1.146
Overall Height29.100
Outside Diameter12.205
Outside Diameter310.000
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorVented
Bearings IncludedNo
Center Hole Diameter108.400
Center Hole Diameter4.268
Mounting Bolt Hole Circle Diameter139.700
Mounting Bolt Hole Circle Diameter5.500
Stud/Lug Hole Quantity5
Stud/Lug Hole Diameter0.504
Stud/Lug Hole Diameter12.800
Disc Mounting [cntrc]Floating
Misc Holes [cntrc]2
Vane Style [cntrc]Straight
Weight [cntrc] kgs6.360
Weight [cntrc] lbs14.000

This part fits 12 vehicles. Search below:

YearMakeModelPositionNotes
2006SuzukiXL-7FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2005SuzukiGrand VitaraFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2005SuzukiXL-7FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2004SuzukiGrand VitaraFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2004SuzukiXL-7FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2003SuzukiGrand VitaraFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2003SuzukiXL-7FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2002SuzukiGrand VitaraFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2002SuzukiXL-7FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2001SuzukiGrand VitaraFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2000SuzukiGrand VitaraFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
1999SuzukiGrand VitaraFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
