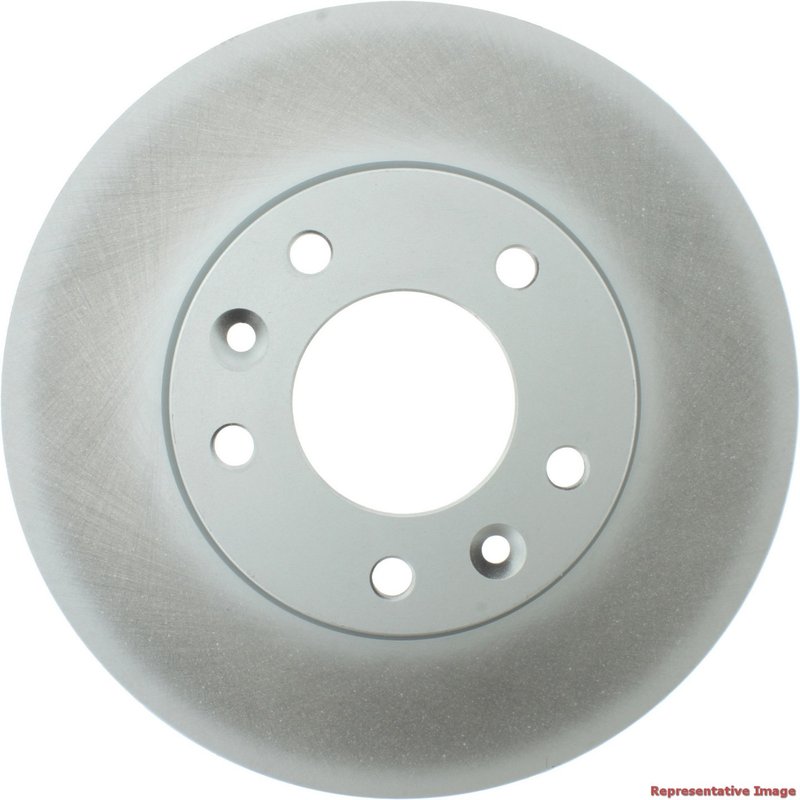

Centric 320.50014F Disc Brake Rotor - Front
Centric GCX Front Brake Rotor for Sedona
The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.50014F, is a front vented rotor built for 2003-2005 Kia Sedona applications. It features a fully coated disc finish, coated hat, and smooth surface to support consistent braking performance while helping protect exposed metal surfaces from corrosion.
Key Features
- Fits 2004-2005 Kia Sedona, front
- Fits 2003 Kia Sedona, front, for vehicles built after 12/03
- Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
- Part number 320.50014F
- Fully coated disc finish with coated hat finish
- Vented rotor design with straight vane style
- Smooth surface type for rotor service applications
- 5-lug pattern with 114.300 mm bolt circle diameter
Product Details
Centric GCX Elemental Protection Disc Brake Rotors are engineered with a full coating on the disc and hat to help resist corrosion on exposed surfaces. This rotor measures 275.800 mm outside diameter, 28.100 mm nominal thickness, and 26.000 mm discard thickness, with a 72.000 mm center hole diameter and floating disc mounting. The straight vane vented construction supports heat management in front brake service, while the smooth braking surface is suited to rotor replacement on the Kia Sedona front axle. The part number 320.50014F is a direct-fit option for the listed Sedona applications.
What This Rotor Helps Address
- Front brake pulsation caused by worn or uneven rotors
- Corrosion on rotor hat and disc surfaces
- Brake noise related to rotor surface wear
- Reduced braking consistency from heat-stressed front rotors
- Service replacement needs on 2003-2005 Kia Sedona front brake systems
Installation Notes and Tips
Verify rotor dimensions, bolt pattern, and front position before installation. Clean the hub mounting surface thoroughly to reduce runout concerns, and inspect pads, calipers, and hardware condition during brake service. For 2003 Kia Sedona fitment, confirm the vehicle was built after 12/03. This part number 320.50014F is listed for front applications only.
Quality Assurance
Centric GCX Elemental Protection rotors are built with coated surfaces and application-specific dimensions for the listed Kia Sedona fitments. This product is identified as a Centric brake rotor replacement for front service on 2003-2005 Kia Sedona models.
| Brand | Centric |
|---|---|
| Part Number | 320.50014F |
| Position | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front |
| Discard Thickness | 1.024 |
| Discard Thickness | 26.000 |
| Nominal Thickness | 1.106 |
| Nominal Thickness | 28.100 |
| Disc Finish | Fully coated |
| Hat Finish | Coated |
| Overall Height | 1.980 |
| Overall Height | 50.300 |
| Outside Diameter | 10.858 |
| Outside Diameter | 275.800 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.835 |
| Center Hole Diameter | 72.000 |
| Mounting Bolt Hole Circle Diameter | 114.300 |
| Mounting Bolt Hole Circle Diameter | 4.500 |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.512 |
| Stud/Lug Hole Diameter | 13.000 |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 2 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] kgs | 7.270 |
| Weight [cntrc] lbs | 16.000 |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Kia | Sedona | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2004 | Kia | Sedona | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2003 | Kia | Sedona | Front | Fr 12/03; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
